Biamp 920-00485-10000 Parlé TCM-1 Black
Product Overview

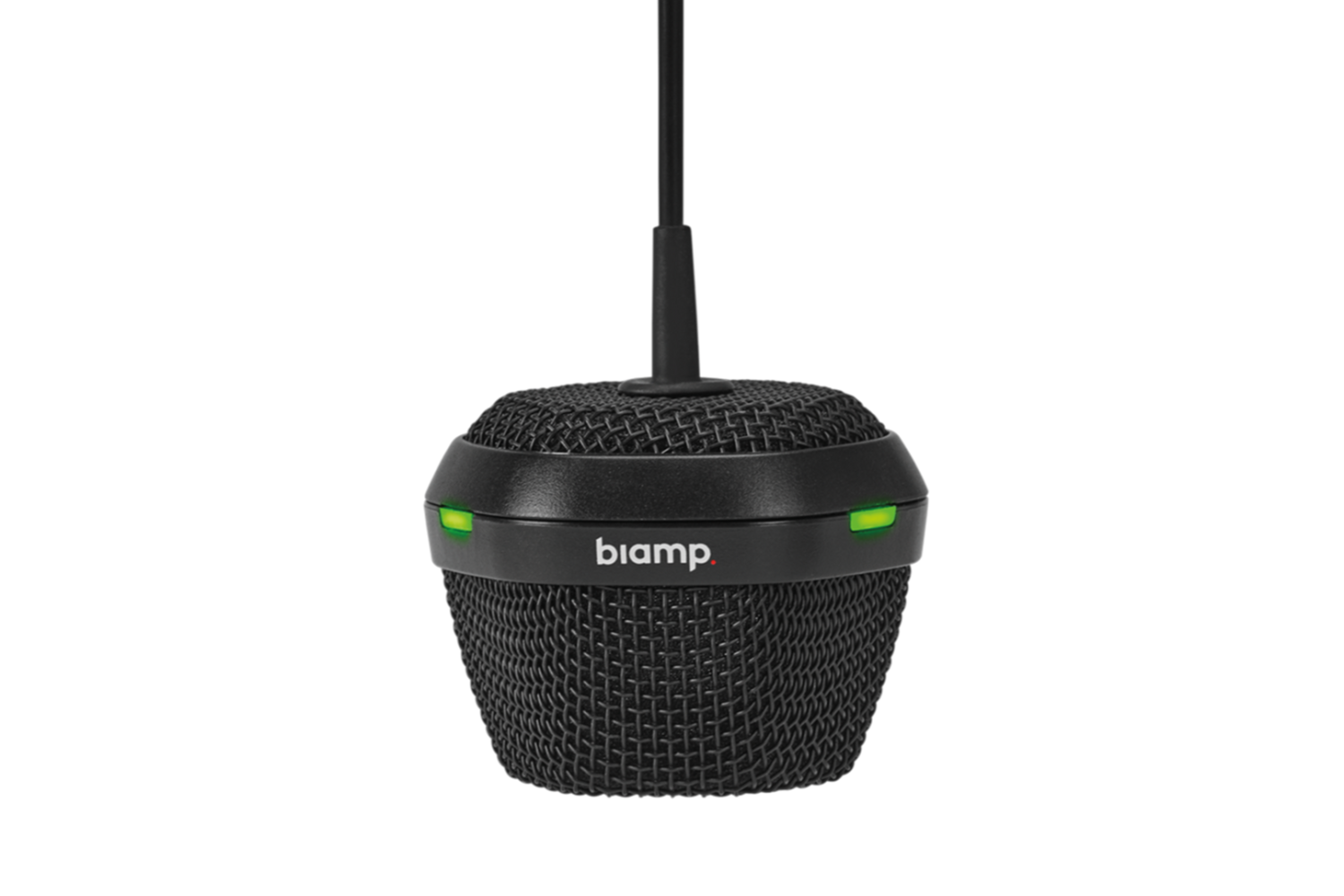

The Biamp Parlé TCM-1 is an AVB Beamtracking pendant microphone built for conference rooms, council chambers, and other meeting spaces that need natural, hands-free voice pickup. Designed exclusively for Biamp Tesira systems, it pairs an eight-element digital array with three 120-degree zones for full 360-degree coverage of the table. This ceiling-suspended conference room microphone keeps table surfaces clear while automatically tracking and mixing talkers around the room. It is part of the wider Biamp Parlé microphone range for commercial AV installations.
Product Description
The Parlé TCM-1 consists of a pendant microphone and a plenum box that houses the digital signal processing used for Beamtracking. Because the DSP is on board, the microphone actively tracks conversation and intelligently mixes talkers so far-end participants hear the discussion clearly, without manual gating or lobe aiming. The pendant hangs from the ceiling on a user-adjustable height cable, making it a practical AVB Beamtracking pendant microphone for rooms where a table-top or ceiling-flush microphone is not ideal. Audio, configuration, and control all travel over a single category cable using an AVB/TSN network, which simplifies installation and reduces cabling in the rack and ceiling. The plenum box connects to the network switch over one RJ-45 and provides a second RJ-45 so up to two TCM-1EX expander microphones can be daisy-chained for larger tables, for a maximum of three microphones per chain. Signal routing, mixing, equalization, dynamics, and delay are all configured in Tesira design software alongside the rest of the room's audio. The TCM-1 is powered over the network by PoE (IEEE 802.3at Class 3), so no local power supply is required at the microphone. It is evaluated to UL 2043 and suitable for use in air-handling (plenum) spaces, which matters for open-ceiling and code-driven commercial deployments. For integrators building a complete Tesira conference room, the TCM-1 works alongside companion Parlé devices such as the Parlé DTM-X tabletop microphone and mounting accessories like the Parlé seismic cable adapter.
Key Features
- Beamtracking pendant microphone — An eight-element digital array actively tracks and intelligently mixes conversations for natural, hands-free voice capture.
- 360-degree coverage — Three 120-degree zones provide full coverage of the table so every participant is heard regardless of seat.
- On-board DSP — The plenum box includes the digital signal processing for Beamtracking, so the microphone works without external mixing hardware.
- Single-cable AVB installation — Audio networking, configuration, and control run over one category cable using an AVB/TSN connection.
- PoE powered — The microphone draws power over the network via PoE (IEEE 802.3at Class 3), removing the need for a local power supply.
- Daisy-chain expansion — A second RJ-45 allows up to two TCM-1EX expanders to extend coverage across larger tables.
- Plenum rated — Evaluated to UL 2043, the TCM-1 is suitable for installation in air-handling spaces above the ceiling.
- Five-year warranty — Backed by Biamp's five-year warranty for commercial-grade reliability.
Typical Applications
- Boardroom
- Conference room
- Government space
- Commercial meeting space
- All-hands room
Technical Specifications
| Model / SKU | Parlé TCM-1 (Black) / 920-00485-10000 |
| Microphone technology | 8-element digital array |
| Coverage | Three 120-degree zones, 360-degree total |
| Frequency response (150 Hz–16 kHz) | ± 3 dB |
| Polar pattern | Beamformed |
| Sensitivity (94 dB SPL, 1 kHz) | > 70 dB |
| Maximum SPL (0.5% THD) | 106 dB |
| Dynamic range (THD+N < 10%) | 92 dB, A-weighted |
| Power | PoE (IEEE 802.3at Class 3, 15.4 W) |
| Networking | AVB/TSN via RJ-45; second RJ-45 for TCM-1EX daisy-chain |
| Max cable distance | 330 ft (100 m) switch to plenum box; 33 ft (10 m) between daisy-chained boxes |
| Pendant dimensions (H x W x D) | 2 x 2.5 x 2.5 in (51 x 63 x 63 mm) |
| Plenum box dimensions (H x W x D) | 2 x 7 x 7.125 in (51 x 178 x 181 mm) |
| Operating temperature | 32–104°F (0–40°C) |
| Compliance | FCC Part 15B, CE, UL and C-UL listed, RoHS, UL 2043 (plenum) |
| Warranty | 5 years |
Specifications sourced from the Biamp Parlé TCM-1 data sheet. Confirm detailed specifications against current Biamp documentation.
Frequently Asked Questions
What systems is the TCM-1 compatible with?
The Parlé TCM-1 is designed exclusively for Biamp Tesira systems and is configured through Tesira design software.
How is the microphone powered?
It is powered over the network by PoE (IEEE 802.3at Class 3, 15.4 W), so no local power supply is needed at the pendant.
Can I add more microphones for a larger table?
Yes. The plenum box has a second RJ-45 for daisy-chaining up to two TCM-1EX expander microphones, for a maximum of three microphones per chain.
Can it be installed above a ceiling in a plenum space?
Yes. The TCM-1 is evaluated to UL 2043 and is suitable for use in air-handling spaces.
How does it integrate with the rest of the AV system?
Audio, configuration, and control run over a single category cable on an AVB/TSN network, and the DSP integrates with the room's Tesira signal processing, echo cancellation, and control.
What is the maximum cable distance?
Up to 330 ft (100 m) from the network switch to the plenum box, and up to 33 ft (10 m) between daisy-chained plenum boxes.
What warranty is included?
The TCM-1 is covered by Biamp's five-year warranty. For installation support, contact the Creation Networks team.
