Biamp 920-00334-10000 Desono DX-S8-UB-B Black

Product Overview

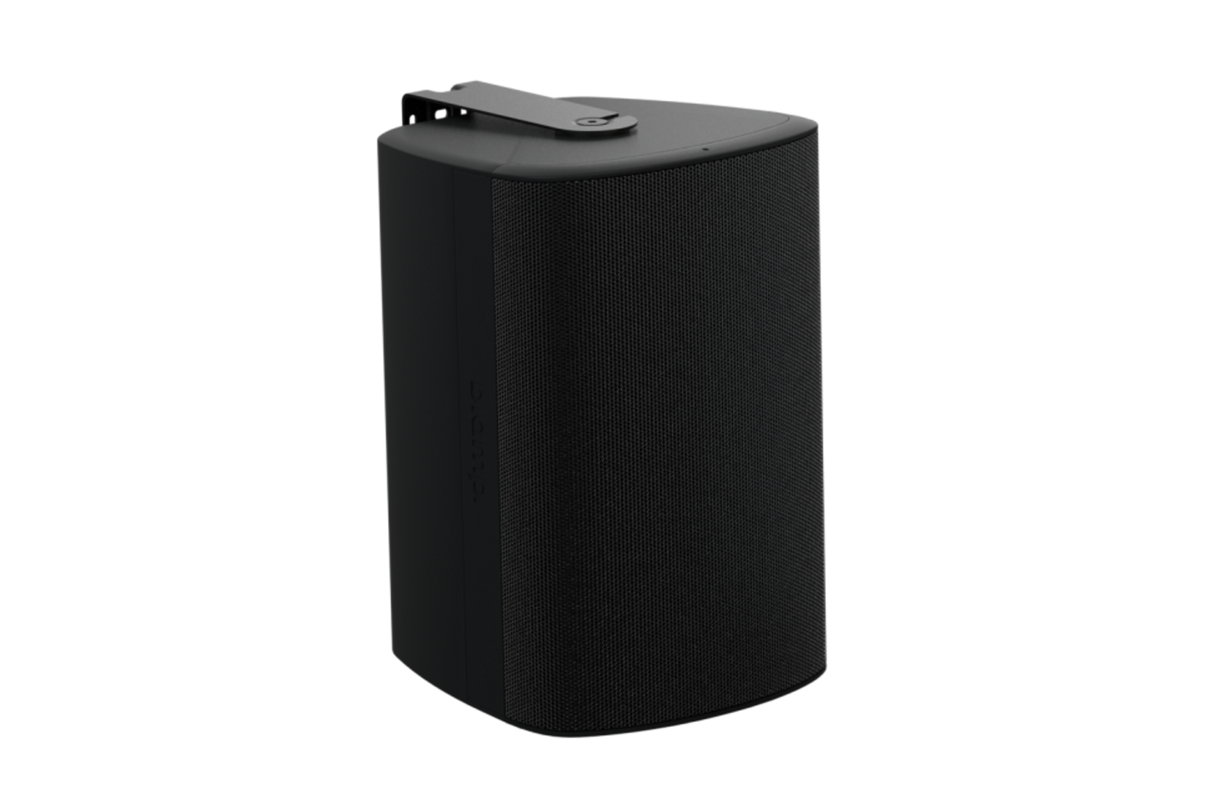

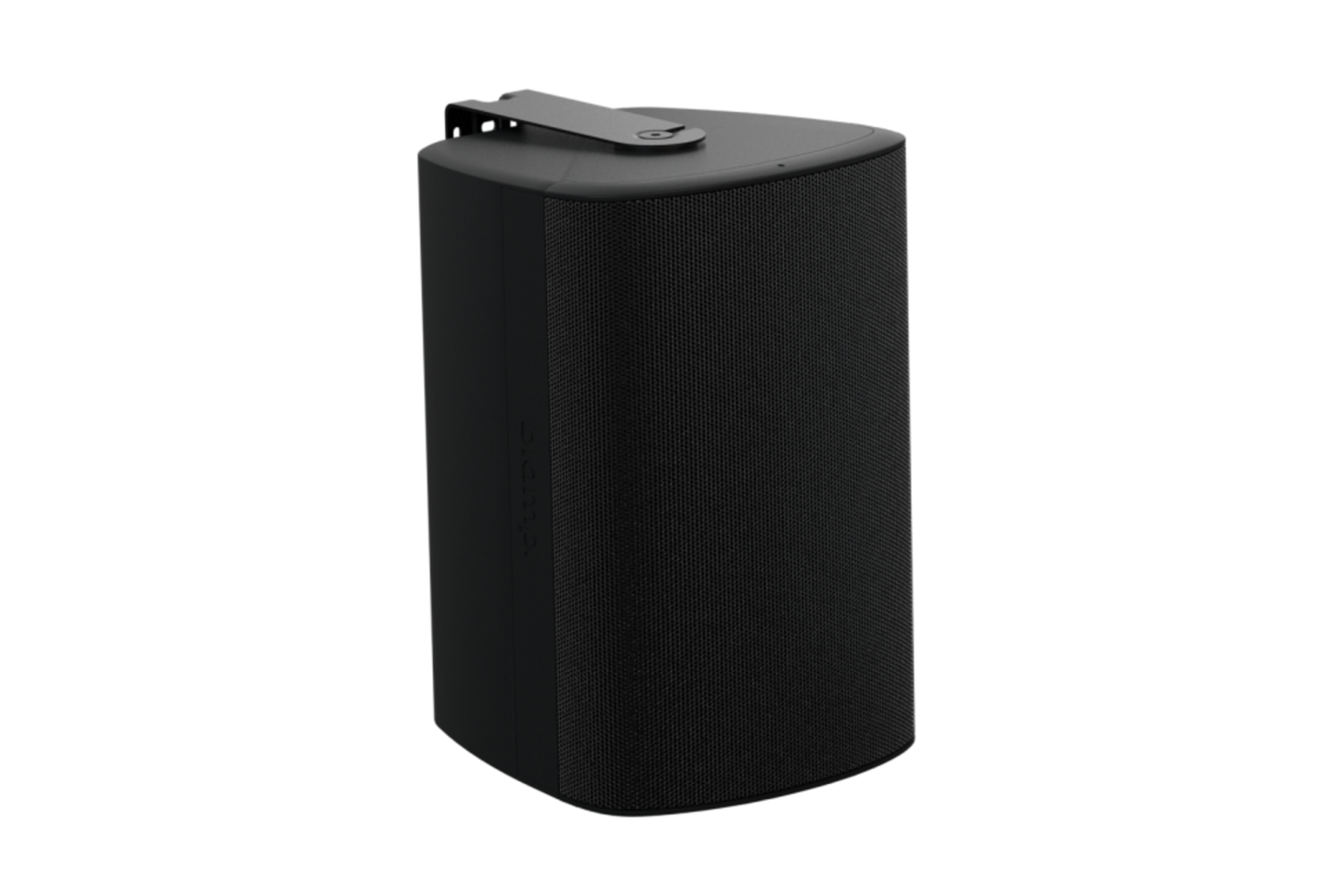

The Biamp Desono DX-S8-UB in black is an 8-inch, two-way high-output coaxial surface-mount loudspeaker rated for indoor and direct outdoor exposure. It delivers high efficiency, high output, and low distortion for distributed audio in demanding commercial spaces, and its IP54 weather-resistant enclosure lets it move from a lobby to a courtyard without changing platforms. The included U-Bracket with ClickPlug provides theft- and tamper-resistant mounting in either orientation. A built-in 70V/100V autoformer and low-impedance input give integrators flexibility across system designs.

Product Description

The DX-S8-UB shares the same components and voicing as the Desono DX ceiling loudspeakers, so surface and ceiling coverage match across a building. An 8-inch low-frequency driver and a 1.25-inch exit compression driver mounted coaxially provide uniform coverage with strong output and extended bass, and the speaker is Zoom Certified for conferencing use. The built-in autoformer offers 70V taps of 120W, 60W, 30W, and 15W and 100V taps of 120W, 60W, and 30W, plus a low-impedance mode for high-fidelity zones. The U-Bracket version mounts low-profile in vertical or horizontal orientation, rotates 200 degrees on the bracket, and includes the ClickPlug with an integrated gland nut for weather-resistant terminations. A lever-actuated four-position terminal block with pass-through simplifies daisy-chained wiring. The enclosure carries an IP54 environmental rating and is ETL listed to UL 1480A. Browse the full Biamp collection, order the matching Desono DX-S8-UB in white, or add ceiling coverage with the Desono DX-IC6LP. It is a commercial-grade surface loudspeaker for speech and music applications.

Key Features

• High-Output 8-Inch Coaxial — An 8-inch LF driver and 1.25-inch compression driver deliver high sensitivity, high output, and extended bass.
• Indoor/Outdoor IP54 — A weather-resistant IP54 enclosure supports direct outdoor exposure as well as indoor use.
• 70V/100V Autoformer — A built-in autoformer with 70V and 100V taps plus a low-impedance input supports distributed and high-fidelity zones.
• Tamper-Resistant U-Bracket — The included U-Bracket with ClickPlug mounts low-profile in either orientation and rotates 200 degrees for aiming.
• Matched DX Voicing — Shares components and voicing with Desono DX ceiling loudspeakers for consistent coverage across a project.
• Zoom Certified — Certified for use in Zoom conferencing environments.
• Pass-Through Wiring — A lever-actuated 4-position terminal block with pass-through simplifies daisy-chained installations.

Typical Applications

• House of worship
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Specifications sourced from the Biamp Desono DX-S8 data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Can the DX-S8-UB be used outdoors?
Yes. It carries an IP54 environmental rating and is rated for indoor use and direct outdoor exposure.

Does it support 70V and 100V systems?
Yes. A built-in autoformer provides 70V and 100V taps plus a low-impedance input for high-fidelity zones.

What does the UB in the model name mean?
It indicates the U-Bracket version, which includes a tamper-resistant U-Bracket and the ClickPlug with an integrated gland nut for weather-resistant terminations.

How is it aimed after mounting?
The loudspeaker rotates 200 degrees on the U-Bracket, 100 degrees in each direction, for coverage aiming.

Will it match my Desono ceiling speakers?
Yes. The DX-S8-UB uses the same components and voicing as Desono DX ceiling loudspeakers for consistent coverage.

What amplifier power is recommended?
Biamp recommends amplifiers of 175W to 350W into 8 ohms for low-impedance operation, with DSP presets to reach rated performance.

Is a white version available?
Yes. The same loudspeaker is offered in a white finish for lighter walls and ceilings.
