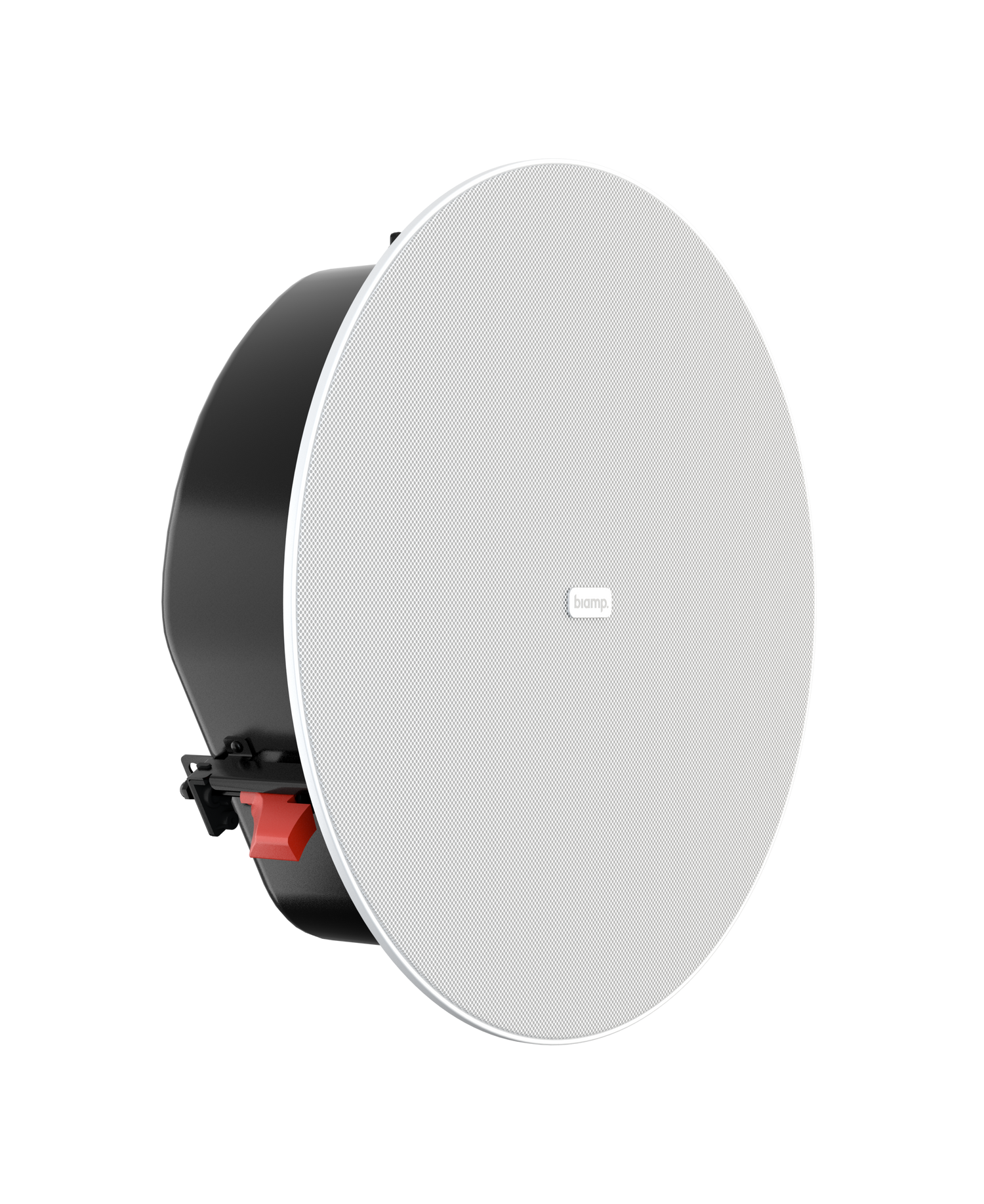

Biamp 920-10300-20100 Desono DX-IC6LP-TAA White

Product Overview

The Biamp Desono DX-IC6LP is a high-efficiency, two-way 6.5-inch low-profile in-ceiling loudspeaker built for paging and background music in commercial spaces with shallow ceiling plenums. At only 3.91 inches (99 mm) deep, it fits installations where competing ceiling speakers will not, while a genuine coaxial, acoustically aligned driver set delivers uniform coverage across the room. This white, TAA-compliant version suits federal and government procurement that requires Trade Agreements Act sourcing. A built-in 70V/100V autoformer with a front-face tap selector makes it a practical choice for distributed audio systems.

Product Description

The DX-IC6LP shares uniform voicing with the rest of the Desono DX loudspeaker family, so it matches easily with surface-mount and pendant models across a building. Its coaxial LF and HF drivers use separate magnets to minimize distortion, and an integrated HF waveguide widens and evens out coverage so more listeners sit in the usable window. The loudspeaker is passive with DSP and includes an autoformer with selectable 70V and 100V taps chosen from a front-face wattage switch, plus a low-impedance option for high-fidelity zones. Patent-pending SpringLock mounting clamps allow single-handed placement on the included tile rails and snap-on C-ring to speed installation, and the edgeless magnetic grille installs and removes without tools. Conduit knock-outs on the input cover meet Chicago plenum air-space requirements, and the speaker is ETL listed to UL 1480A and UL 2043 for use in air-handling spaces. Browse the full Biamp collection, pair it with the conferencing-focused Desono C-IC6LP, or add surface coverage with the Desono DX-S8-UB. It is a commercial-grade ceiling loudspeaker for demanding distributed audio designs.

Key Features

• Low-Profile Depth — At only 3.91 inches (99 mm) deep, the DX-IC6LP fits shallow ceiling plenums where standard ceiling speakers cannot.
• High Efficiency Output — High sensitivity and 60W power handling deliver strong output for paging and background music.
• 70V/100V Autoformer — A built-in autoformer with a front-face tap selector supports both 70V and 100V distributed audio and a low-impedance mode.
• Coaxial Driver Alignment — An acoustically aligned coaxial driver set with an HF waveguide provides wide, consistent coverage.
• Fast SpringLock Installation — Patent-pending SpringLock clamps and included tile rails allow single-handed mounting to reduce labor time.
• Plenum Rated — ETL listed to UL 1480A and UL 2043 with Chicago plenum conduit knock-outs for air-handling spaces.
• TAA Compliant — This version is Trade Agreements Act compliant for government and federal procurement.

Typical Applications

• House of worship
• Auditorium
• Conference room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Specifications sourced from the Biamp Desono DX-IC6LP data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What makes the DX-IC6LP low profile?
Its enclosure is only 3.91 inches (99 mm) deep, letting it install in shallow ceiling plenums where deeper speakers do not fit.

Does it work on 70V and 100V systems?
Yes. A built-in autoformer offers selectable 70V and 100V taps chosen from a front-face switch, plus a low-impedance option.

Is the DX-IC6LP suitable for plenum installation?
Yes. It is ETL listed to UL 1480A and UL 2043 and includes conduit knock-outs that meet Chicago plenum air-space requirements.

What amplifier should I use?
Biamp recommends amplifiers of 60W to 120W into 8 ohms for low-impedance operation; DSP presets are recommended to achieve rated performance.

How does it install into a ceiling?
Patent-pending SpringLock clamps mount the back can on the included tile rails and snap-on C-ring, allowing single-handed placement and blind mounting from below.

Is this model TAA compliant?
Yes. This white version is Trade Agreements Act compliant, which supports government and federal procurement requirements.

Can I match it with other Desono speakers?
Yes. The DX-IC6LP shares uniform voicing with the Desono DX family, so it matches surface-mount and other DX models across a project.
