Biamp 920-00297-20000 OVO5T-W White
Product Overview

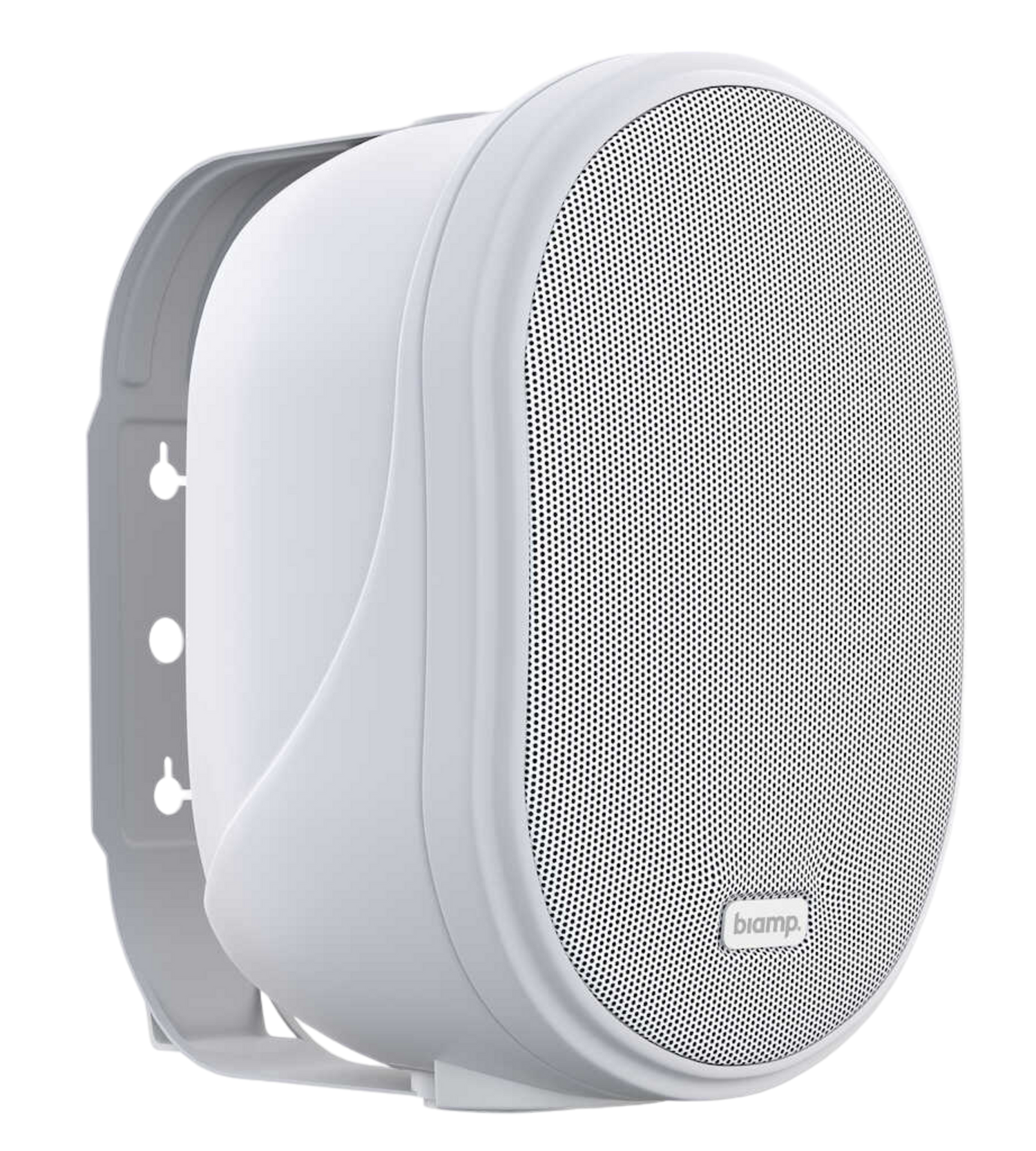

The Biamp OVO5T-W is a 5.25-inch two-way commercial surface mount loudspeaker built for higher output and wide coverage in larger background music and voice paging spaces. It operates in low-impedance (16 Ω) or 70V/100V distributed audio mode, selectable from a rear-panel switch, making it a versatile choice for retail, hospitality, and transportation environments. A 5.25" paper cone woofer and 1" silk dome tweeter deliver a 74 Hz to 20 kHz operating range with a 130° x 100° coverage pattern. The paintable white enclosure ships with an integrated pan-and-tilt U-bracket for flexible wall mounting.
Product Description
The OVO5T-W extends the OVO family to larger zones where more output and low-frequency extension are needed while keeping project budgets in check. Its 30 W transformer provides 70V taps of 30 W, 15 W, 7.5 W, 3 W, and 1.5 W, and 100V taps of 30 W, 15 W, 6 W, and 3 W, giving integrators wide latitude to set loudspeaker loading across a distributed audio system. A rear switch selects 16 Ω low-impedance operation for direct amplifier drive. The rugged ABS enclosure is paintable to match any interior, and spring-lever wiring terminals with the included input cover keep terminations fast and tidy. The integrated pan-and-tilt U-bracket, plus an included wall-mount wedge that adds 5° of tilt, supports precise aiming in corridors, lobbies, and open retail floors. The speaker is IP40 rated for indoor use and IEC 62368-1 certified. This OVO5T-W is also offered in a black finish, and smaller zones may be better served by the 3-inch OVO3T. See the full Biamp collection for compatible amplifiers and accessories.
Key Features
- Higher Output Two-Way Design — A 5.25" coated paper cone woofer and 1" silk dome tweeter deliver more level and low-frequency extension for larger commercial spaces.
- Selectable Operating Mode — A rear-panel switch chooses 16 Ω low-impedance or 70V/100V transformer operation for direct or distributed audio designs.
- Wide Coverage Pattern — The nominal 130° x 100° beamwidth provides even coverage across lobbies, corridors, and open floors.
- Flexible Transformer Tapping — 70V taps of 30/15/7.5/3/1.5 W and 100V taps of 30/15/6/3 W let integrators balance loading across a paging zone.
- Integrated Pan-Tilt U-Bracket — The included U-bracket and 5° wall wedge support precise aiming during wall installation.
- Paintable ABS Enclosure — The rugged cabinet accepts latex or oil-based paint to match any interior finish.
Technical Specifications
| Model / SKU | OVO5T-W (920-00297-20000) |
| Type | 5.25-inch two-way surface mount loudspeaker |
| Operating Mode | Passive; selectable 16 Ω low-impedance or 70V/100V |
| Operating Range (-10 dB) | 74 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130° x 100° |
| Transducers | LF: 1 x 5.25" (133 mm) coated paper cone; HF: 1 x 1" (25 mm) silk dome |
| Sensitivity | 86 dB (2.83 V); 89 dB (1 W, 16 Ω) |
| Nominal Continuous Power Handling | 40 W (16 Ω nominal impedance) |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W, 3 W, 1.5 W; 100V: 30 W, 15 W, 6 W, 3 W |
| Nominal Max SPL (Processed, 1 m) | 102 dB continuous / 108 dB peak |
| Input Connection | Spring-lever terminals with wiring cover |
| Environmental Rating | IP40 per IEC 60529 (indoor) |
| Compliance | IEC 62368-1 certified |
| Dimensions (H x W x D) | 256 x 167 x 189 mm (10.07" x 6.56" x 7.44") |
| Weight (loudspeaker/mount) | 3.08 kg (6.8 lbs) |
| Finish | White (RAL 9003), paintable |
| Included Accessories | Pan-tilt U-bracket, wall-mount wedge bracket, input cover |
Specifications sourced from the Biamp OVO5T data sheet (biamp.com). Confirm detailed specifications against current Biamp documentation.
