Biamp 920-00296-20000 OVO3T-W White
Product Overview

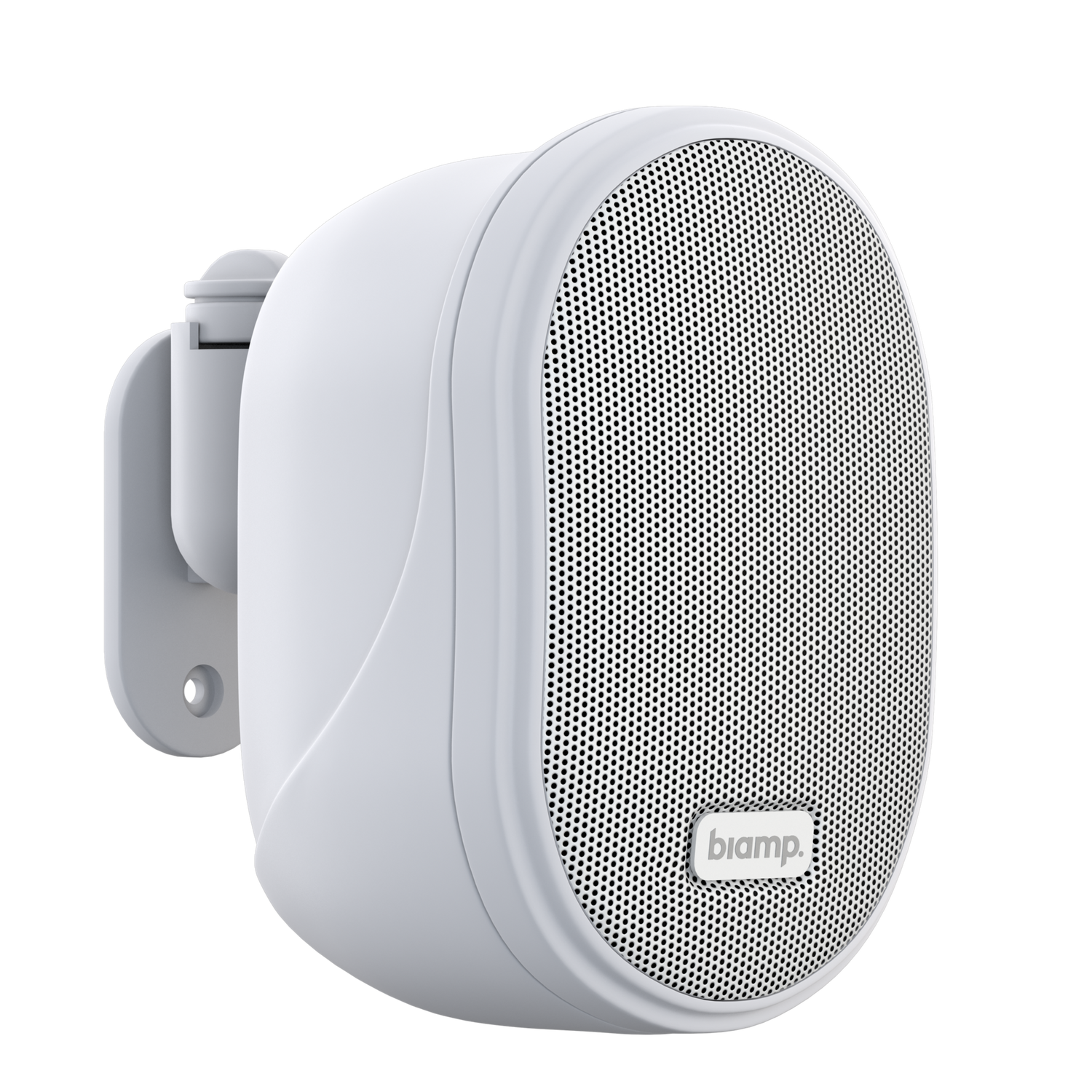

The Biamp OVO3T-W is a compact 3-inch two-way commercial surface mount loudspeaker for background music and voice paging in retail, hospitality, and corridor spaces. It operates in low-impedance (16 Ω) or 70V/100V distributed audio mode, selectable from a rear-panel switch, so one model fits both direct-drive and distributed audio system designs. An exceptionally wide 185° x 135° coverage pattern suits long, linear areas where even sound distribution matters. The white enclosure blends into most ceilings and walls and is paintable to match any interior.
Product Description
The OVO3T-W pairs a 3" coated paper cone woofer with a 1" silk dome tweeter in a rugged ABS enclosure, delivering full-range audio for commercial installations that need clear background music and intelligible paging. An accessible rear switch selects 16 Ω low-impedance operation or 70V/100V transformer taps, giving integrators a single loudspeaker for both amplifier-direct and distributed audio zones. In 70V mode the transformer offers 6 W, 3 W, 1.5 W, and 0.75 W taps; in 100V mode it offers 6 W, 3 W, and 1.5 W taps, which helps balance loudspeaker loading across a paging zone. Spring-lever wiring terminals with the included input cover make terminations fast and tidy, and the included pan-tilt bracket plus rubber tabletop stand support wall, ceiling, and shelf placement. The speaker carries an IP40 environmental rating for indoor use and is IEC 62368-1 certified. This OVO3T-W is also offered in a black finish, and larger zones can step up to the 5.25-inch OVO5T. Browse the full Biamp collection for matching amplifiers and distributed audio components.
Key Features
- Selectable Operating Mode — A rear-panel switch chooses 16 Ω low-impedance or 70V/100V transformer operation so the same speaker fits both direct and distributed audio designs.
- Wide Coverage Pattern — The nominal 185° x 135° beamwidth spreads sound evenly across long, linear spaces and reduces the number of speakers needed per zone.
- Two-Way Full-Range Design — A 3" coated paper cone woofer and 1" silk dome tweeter reproduce background music and voice paging with clarity.
- Paintable ABS Enclosure — The rugged plastic cabinet and grille accept latex or oil-based paint to match any interior finish.
- Included Mounting Hardware — A pan-tilt bracket and rubber tabletop stand ship with the speaker for wall, ceiling, or shelf installation.
- Tool-Free Wiring — Spring-lever terminals with a snap-on input cover speed up terminations and keep the finished install clean.
Technical Specifications
| Model / SKU | OVO3T-W (920-00296-20000) |
| Type | 3-inch two-way surface mount loudspeaker |
| Operating Mode | Passive; selectable 16 Ω low-impedance or 70V/100V |
| Operating Range (-10 dB) | 100 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 185° x 135° |
| Transducers | LF: 1 x 3" (76 mm) coated paper cone; HF: 1 x 1" (25 mm) silk dome |
| Sensitivity | 83 dB (2.83 V); 86 dB (1 W, 16 Ω) |
| Nominal Continuous Power Handling | 20 W (16 Ω nominal impedance) |
| Transformer Taps | 70V: 6 W, 3 W, 1.5 W, 0.75 W; 100V: 6 W, 3 W, 1.5 W |
| Nominal Max SPL (Processed, 1 m) | 93 dB continuous / 99 dB peak |
| Input Connection | Spring-lever terminals with wiring cover |
| Environmental Rating | IP40 per IEC 60529 (indoor) |
| Compliance | IEC 62368-1 certified |
| Dimensions (H x W x D) | 160 x 108 x 119 mm (6.31" x 4.24" x 4.67") |
| Weight (loudspeaker/mount) | 1.08 kg (2.4 lbs) |
| Finish | White (RAL 9003), paintable |
| Included Accessories | Pan-tilt bracket, color-matched tabletop stand, input cover |
Specifications sourced from the Biamp OVO3T data sheet (biamp.com). Confirm detailed specifications against current Biamp documentation.
