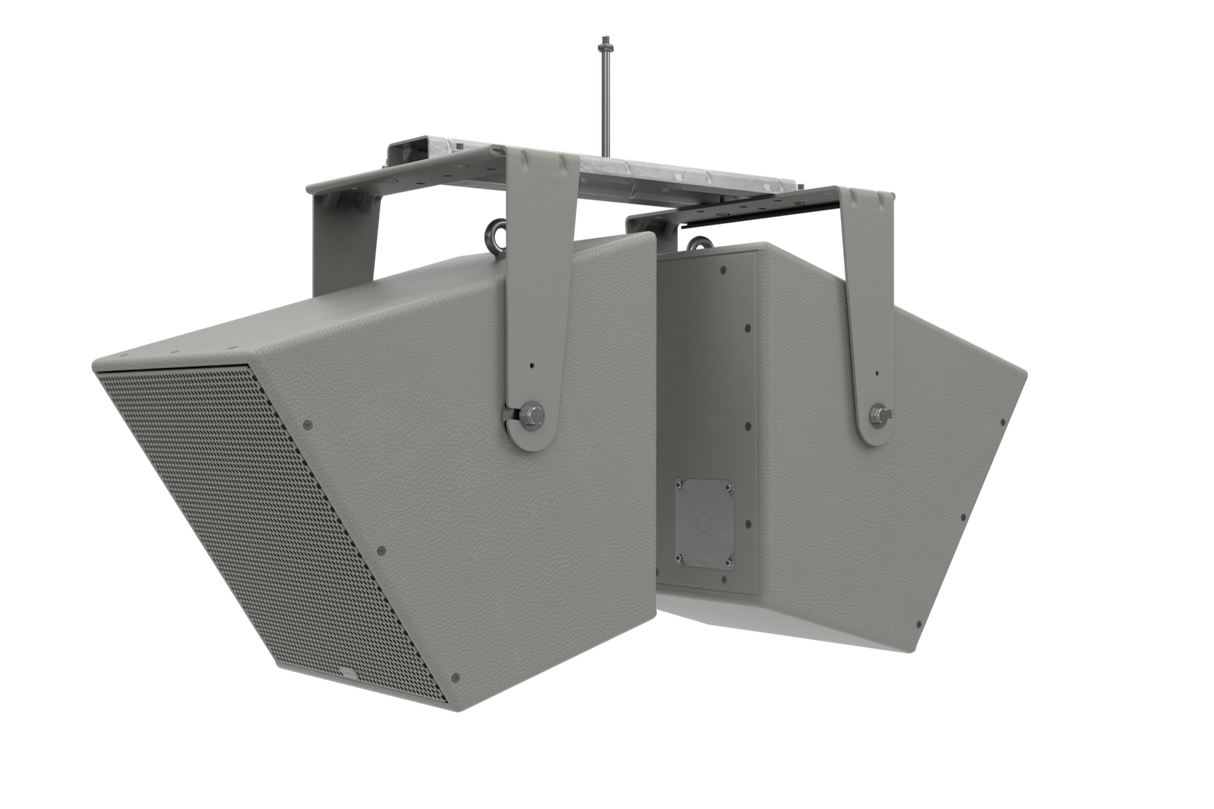

Biamp 910-02266 CCA-80D Grey

Product Overview

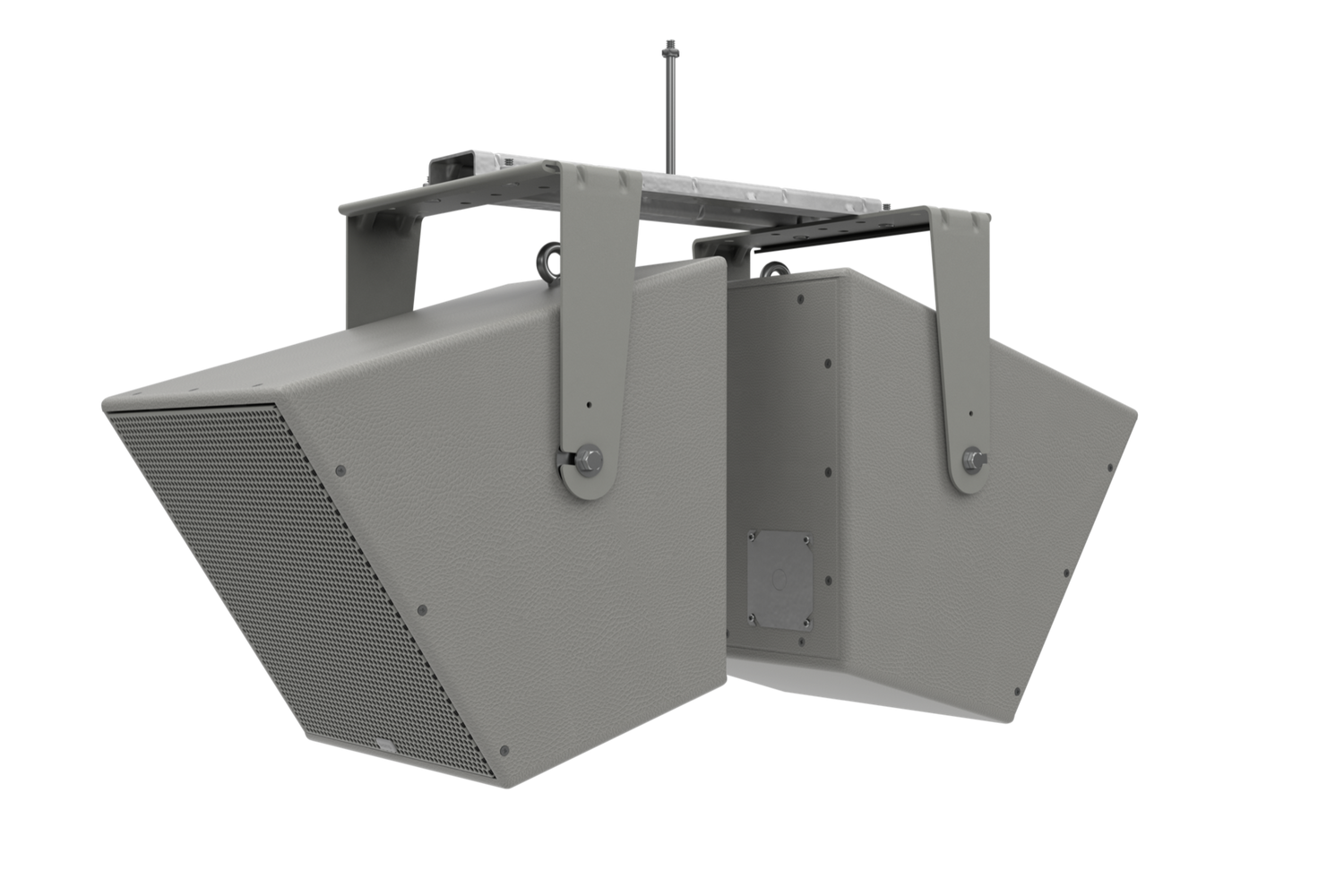

The Biamp Community CCA-80D is a three-way, full-range constant coverage aisle loudspeaker built for even, long-throw voice and music reproduction in large commercial venues. It consists of two CCA-80 loudspeakers mounted back-to-back, which reduces the number of required mounting positions, amplifier channels, and delay-alignment channels in a distributed system. Its asymmetric horn-loaded design delivers a 6:1 throw ratio for extended, consistent coverage down aisles and long rooms. This is the grey finish; a single-element version is available as the CCA-80.

Product Description

The CCA-80D is designed for commercial installations that need to cover long, narrow spaces such as worship aisles, auditorium seating, and multi-purpose halls with fewer loudspeaker positions. By combining two CCA-80 elements in one back-to-back enclosure, it lets an integrator cover a run from a single hang or mount while cutting the amplifier and delay channels a comparable pair of separate loudspeakers would require. Each element is a three-way triaxial design with an 8-inch (200 mm) low-frequency driver, a coaxial midrange compression driver, and a coaxial high-frequency driver, producing a full-range response of 115 Hz to 14 kHz for intelligible speech and program music. The asymmetric horn loading and 6:1 throw ratio push sound to the far end of a space while keeping level consistent for listeners closer to the loudspeaker. An onboard transformer supports 70 V and 100 V distributed systems with multiple power taps, and the loudspeaker can also run low-impedance from a recommended 50 W to 100 W amplifier at 8 ohms. For single-position coverage, see the CCA-80, and browse compatible amplifiers and system hardware in the Biamp collection at Creation Networks.

Key Features

• Dual back-to-back design — Two CCA-80 elements in one enclosure reduce mounting positions, amplifier channels, and delay-alignment channels in a distributed system.
• Three-way triaxial configuration — Each element combines an 8-inch low-frequency driver with coaxial midrange and high-frequency compression drivers for full-range output.
• Asymmetric horn loading — A 6:1 throw ratio provides extended, even coverage along aisles and long rooms.
• Full-range response — A 115 Hz to 14 kHz range supports clear speech and quality music reproduction.
• 70 V / 100 V distributed operation — The onboard transformer offers multiple power taps for constant-voltage systems, with low-impedance operation also supported.
• Long-throw commercial coverage — The constant coverage aisle pattern suits large venues where consistent level from front to back matters.

Typical Applications

• House of worship
• Auditorium
• Multi-purpose room
• Government space
• Commercial meeting space

Technical Specifications

Specifications sourced from Biamp/Community product documentation. Confirm detailed specifications, including per-element power ratings for the dual configuration, against current Biamp documentation.

Frequently Asked Questions

How is the CCA-80D different from the CCA-80?
The CCA-80D combines two CCA-80 elements back-to-back in one enclosure, so a single mount covers a run in two directions while reducing amplifier and delay channels. The CCA-80 is a single-element loudspeaker.

What kind of spaces is it designed for?
Its constant coverage aisle pattern and 6:1 throw suit long, narrow venues such as worship aisles, auditoriums, and multi-purpose halls.

Can it run on a 70 V or 100 V system?
Yes. An onboard transformer provides multiple power taps for 70 V and 100 V distributed systems, and low-impedance operation is also supported.

What amplifier power is recommended?
Each element is rated for a recommended 50 W to 100 W amplifier at 8 ohms. Confirm the exact per-element and distributed ratings against current Biamp documentation.

How does it fit into an AV system?
It integrates as a passive loudspeaker driven by a compatible commercial amplifier, with delay alignment handled in system DSP as needed for the venue.

Does it include a warranty and support?
Biamp products are backed by manufacturer warranty and technical support. Contact Creation Networks for current warranty terms and integration assistance.
