Biamp 910-01554 CM6E
Product Overview

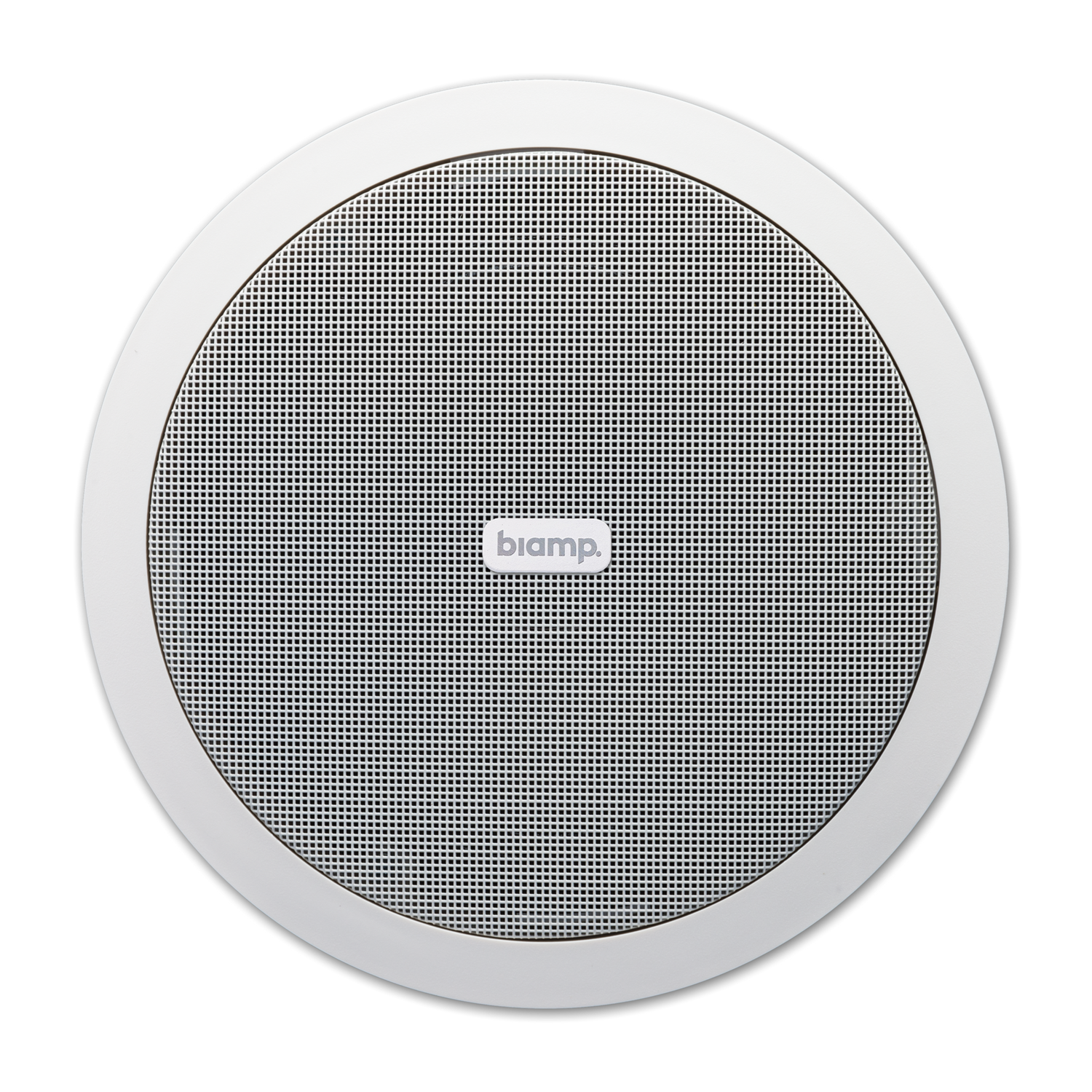

The Biamp CM6E is a 6.5-inch dual-cone in-ceiling loudspeaker built for distributed paging and background music in commercial spaces. It operates on 100V line systems with selectable power taps, making it a budget-friendly choice for wide-area voice and music distribution. The ABS housing and steel grille install quickly with a three-screw mounting system. It is a practical ceiling speaker for retail, hospitality, and general-purpose commercial audio.
Product Description
The CM6E delivers clear, even sound reproduction from a 6.5" paper dual-cone woofer, covering a 70 Hz to 20 kHz frequency response suitable for speech intelligibility and background music. An onboard 100V line transformer offers 6, 3, and 1.5 W power taps, letting integrators balance loudness across many loudspeakers on a single amplifier channel in a distributed audio system. The dual-cone design widens high-frequency dispersion, with a 180° vertical dispersion angle at 1 kHz for broad coverage from ceiling height. Construction is high-quality ABS with a steel grille, and the loudspeaker carries an IP50 rating for typical indoor commercial ceilings. Installation is straightforward using the three-screw mounting system with a 2–25 mm installation grip range, and the grille and baffle can be painted to match the ceiling. The CM6E is well suited to paging, announcements, and background music across offices, shops, and public spaces. Browse the full Biamp collection, or step up to a two-way in-ceiling model such as the Biamp Desono DX-IC6LP-W for higher-fidelity music playback.
Key Features
- 6.5" Dual-Cone Driver — The paper dual-cone woofer widens high-frequency dispersion for clear speech and background music from ceiling height.
- 100V Line Operation — An onboard transformer with 6/3/1.5 W taps supports distributed audio systems with many loudspeakers on one amplifier channel.
- Fast Three-Screw Mounting — A simple three-screw system with a 2–25 mm grip range speeds installation in standard ceilings.
- Paintable Construction — The ABS baffle and steel grille can be painted to match the ceiling for a discreet appearance.
- Broad Coverage — A 180° vertical dispersion angle at 1 kHz spreads sound evenly across the listening area.
Technical Specifications
| Model / SKU | CM6E / 910-01554 |
| Loudspeaker System | Dual cone, 6.5" paper woofer |
| Frequency Response | 70 Hz to 20 kHz |
| 100V Transformer Taps | 6 / 3 / 1.5 W |
| SPL (1 W / 1 m) | 91 dB |
| Max SPL (1 m) | 99 dB |
| Vertical Dispersion (1 kHz) | 180° |
| Outside Diameter / Cutout | 205 mm / 186 mm |
| Depth | 70 mm |
| Mounting | 3 screws, 2–25 mm grip range |
| IP Rating | IP50 |
| Construction | ABS housing, steel grille |
| Net Weight | 0.75 kg |
Specifications sourced from the Biamp (Apart) CM6E data sheet (Aug 2020). Confirm detailed specifications against current Biamp documentation.
