Biamp 910-01201 EasyConnect USB3-3-AC
Product Overview

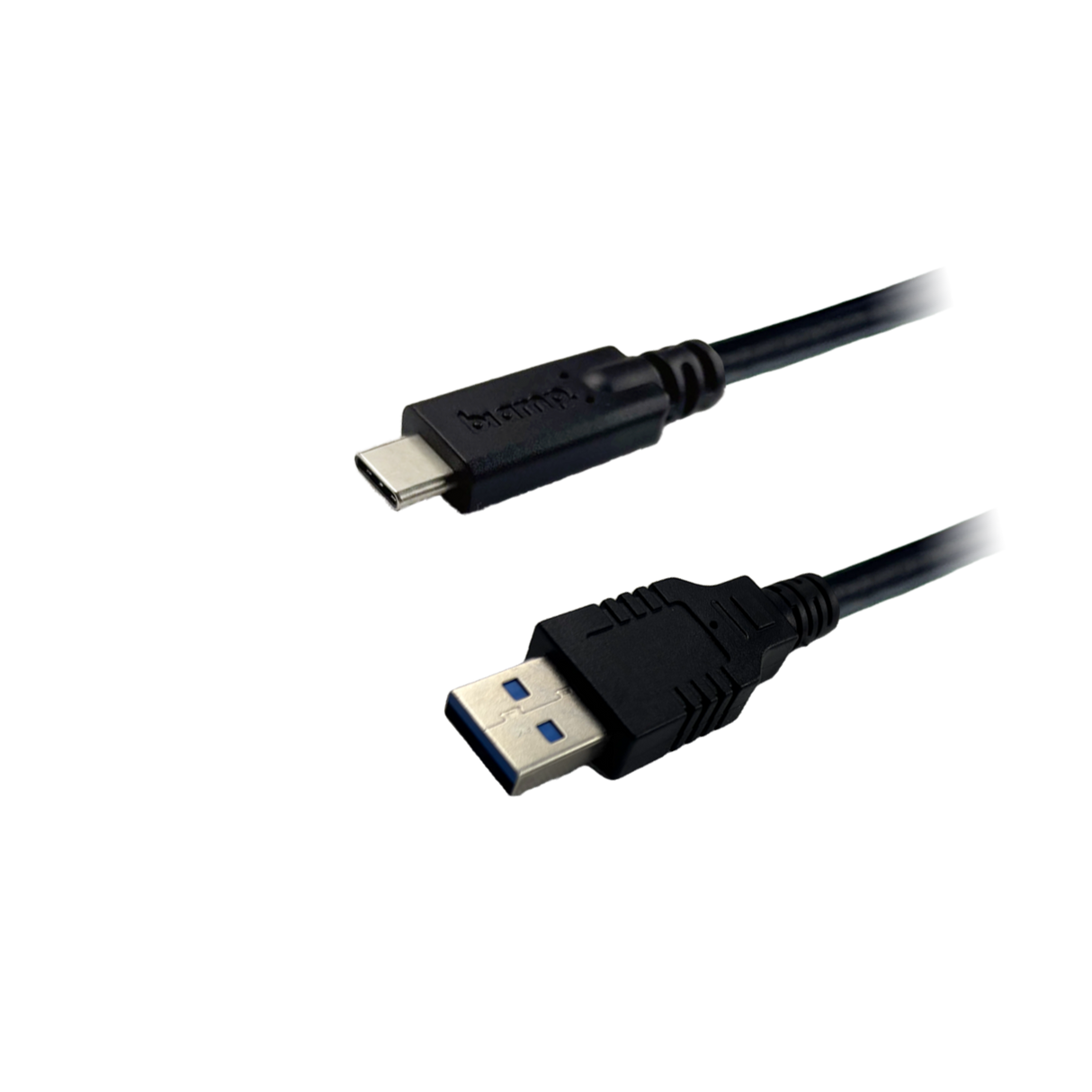

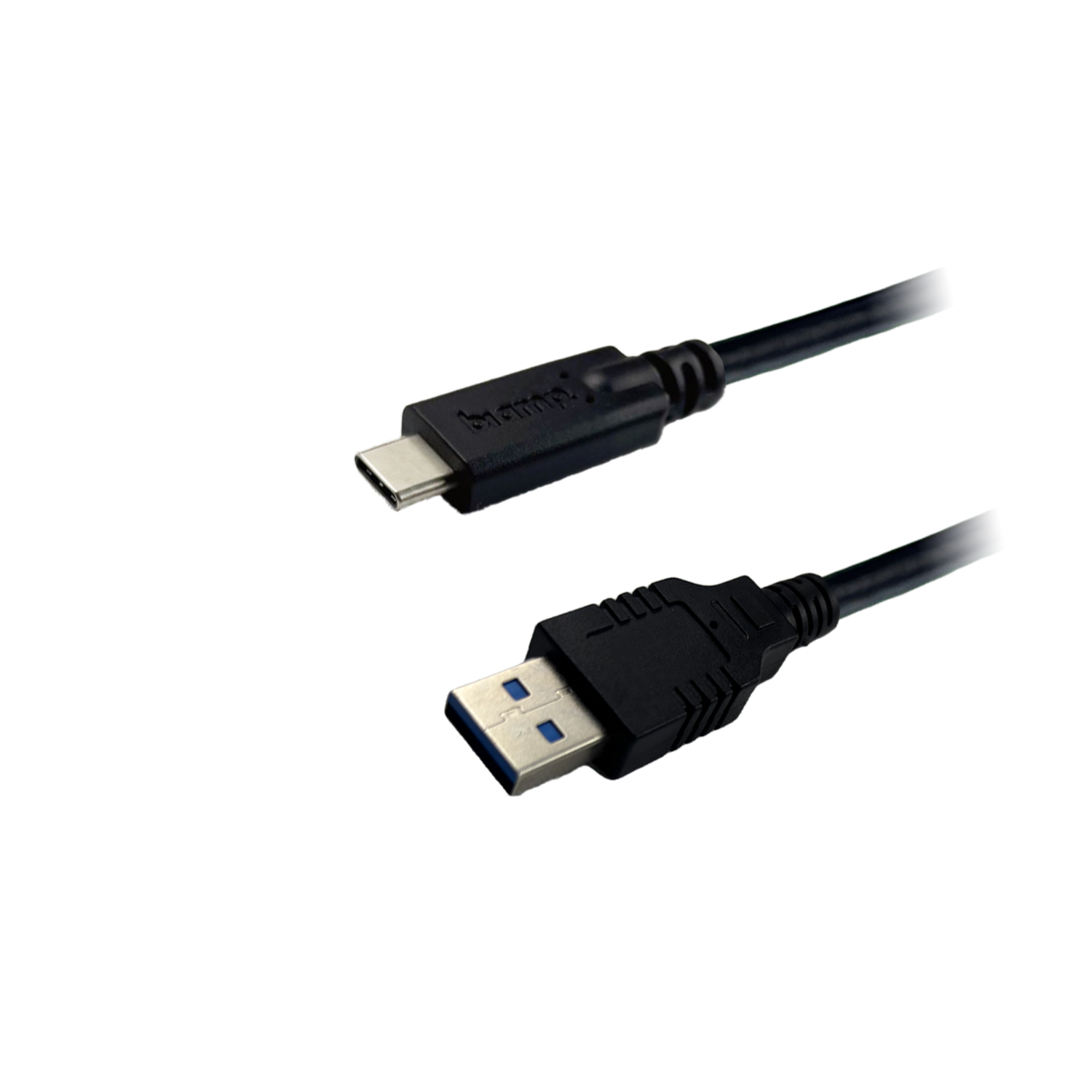

The Biamp EasyConnect USB3-3-AC is a 3-foot (1 m) USB 3.2 Gen 1 Type A to Type C cable for commercial AV installations and conference room connectivity. It connects USB-C peripherals such as cameras and BYOM devices to host PCs and hubs that use a standard Type A port, at SuperSpeed data rates. Built with tinned copper conductors and gold-plated contacts, this commercial-grade USB cable delivers reliable in-room connections. It is part of the Biamp EasyConnect cable line used to standardize AV system wiring.
Product Description
The EasyConnect USB3-3-AC bridges the common gap between a Type A host and a Type C peripheral over a short 3-foot run. This length suits rack, credenza, and table-side positions in a conference room or huddle room where the source and endpoint are close together. The passive design carries USB 3.2 Gen 1 data at up to 5 Gbps, supporting webcams, audio interfaces, and content-sharing peripherals in modern meeting spaces. Double shielding with foil and braid protects the signal against electromagnetic interference near equipment racks and cable channels. Tinned copper conductors and gold-plated contacts help maintain consistent performance over the installation lifecycle. The cable is backward compatible with USB 2.0 and 1.1 devices for legacy peripherals during system transitions. Integrators specifying a complete AV rack can pair it with cabling from the Biamp collection. For a longer Type A to Type C run, the EasyConnect USB3-10-AC (10 ft) covers the same connection at greater distance. This USB 3.2 Type A to C cable carries a three-year limited warranty and is RoHS and REACH compliant for commercial deployment.
Key Features
- USB 3.2 Gen 1 SuperSpeed — Transfers data at up to 5 Gbps for cameras, audio devices, and BYOM peripherals in commercial meeting spaces.
- Type A to Type C Connectors — Connects USB-C peripherals to hosts and hubs that use a standard Type A port.
- Passive Commercial-Grade Construction — Uses tinned copper conductors and gold-plated contacts for dependable performance in permanent installations.
- Double Shielding — Combines foil and braided shielding to reduce electromagnetic interference in equipment racks and cable channels.
- Backward Compatibility — Works with USB 2.0 and 1.1 devices, supporting mixed-generation peripherals during system upgrades.
- Compact 3-Foot Length — Suits short rack, credenza, and table-side runs where source and endpoint sit close together.
Technical Specifications
| Model / SKU | EasyConnect USB3-3-AC (910-01201) |
| USB Standard | USB 3.2 Gen 1 (formerly USB 3.0) |
| Connector Type | Type A to Type C (male-male) |
| Max Data Rate | 5 Gbps (SuperSpeed) |
| Signal Type | Passive |
| Backward Compatibility | USB 2.0, USB 1.1 |
| Cable Length | 3 ft (1 m) |
| Conductor Material | Tinned copper |
| Wire Gauge | 28 AWG |
| Shield Type | Double shielded (foil + braid) |
| Contact Plating | Gold |
| Jacket Material | PVC |
| Operating Voltage / Max Current | 5–20 V / 3 A |
| Operating Temperature | 0 to 50 °C |
| Compliance | RoHS, REACH; UL-CMX |
| Warranty | 3-year limited |
Specifications sourced from Biamp EasyConnect USB3-AC series datasheets. Confirm detailed specifications against current Biamp documentation.
