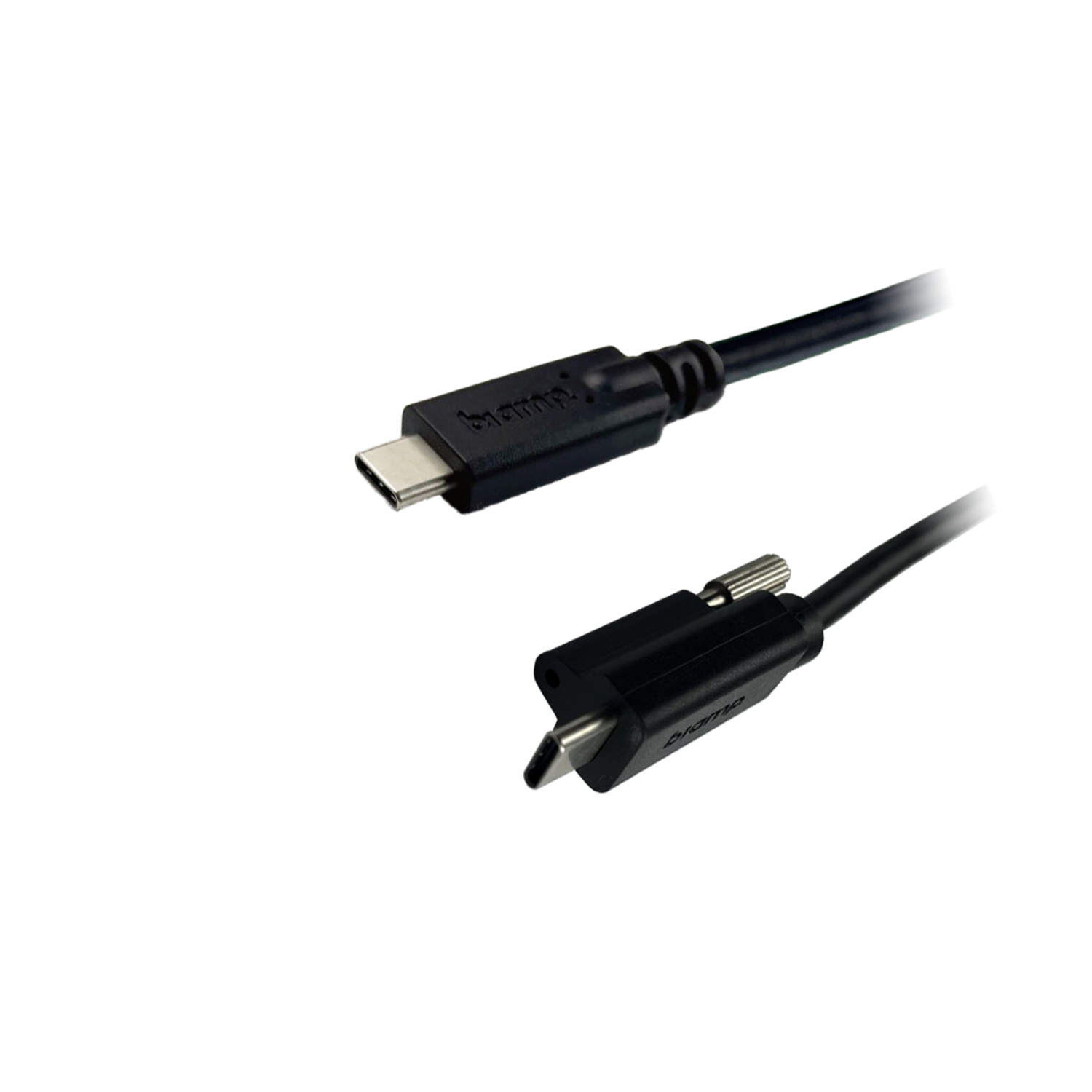

Biamp 910-00214 EasyConnect USB3-50-CC

Product Overview

The Biamp EasyConnect USB3-50-CC is a 50-foot active USB-C cable built for reliable USB 3.2 connectivity across conference rooms and larger meeting spaces. Its active design, tinned copper conductors, and multi-mode optical fibers maintain SuperSpeed 5 Gbps data over a distance where passive cables fail. With Type C to Type C connectors and DisplayPort Alt Mode support, it carries data, video, and audio for bring-your-own-meeting (BYOM) room connections. This long-distance USB-C cable is a practical link between a table connection point and rack- or wall-mounted AV hardware.

Product Description

The USB3-50-CC solves the common problem of running USB over long distances in a commercial AV installation. It is an active USB 3.2 Gen 1 (USB 3.0) cable that supports data transfer up to 5 Gbps and includes up to two built-in USB hubs across its SuperSpeed lanes to sustain signal integrity across the full 50-foot (15 m) length. Through DisplayPort Alt Mode (DP1.4), the cable also passes video up to 3840 x 2160 at 30 Hz with 4:4:4 chroma and 8-bit color, plus audio over USB/DP, making it a single-cable link for BYOM displays and peripherals. It supports USB Power Delivery up to 60 watts (port dependent) with PD 2.0/3.0, and includes an E-marker chip and Billboard device reporting for correct host negotiation. Construction includes double shielding, gold-plated contacts, and a 6.5 mm PVC jacket rated VW-1, with RoHS and REACH compliance for commercial deployment. The cable works with Windows 8 and later, macOS 10.9 and later, and Linux 3.x and later, and supports legacy connections through Type C to A/B adapters. Pair it with the shorter-run EasyConnect USB3-30-BC where a Type B device is involved, and see the full cabling range in the Biamp collection. Biamp provides a two-year limited warranty.

Key Features

• Active Long-Distance Design — Tinned copper conductors and multi-mode optical fibers sustain USB 3.2 signal integrity across the full 50-foot run.
• SuperSpeed Data — Supports USB 3.2 Gen 1 data transfer up to 5 Gbps for cameras, microphones, and peripherals.
• Video and Audio Over One Cable — DisplayPort Alt Mode (DP1.4) carries up to 3840 x 2160 at 30 Hz video plus audio for BYOM displays.
• USB Power Delivery — Delivers up to 60 W (port dependent) with PD 2.0/3.0 support for bus-powered devices.
• Commercial-Grade Build — Double shielding, gold-plated contacts, and a VW-1 rated jacket meet the demands of installed AV systems.
• Broad Compatibility — Works with Windows 8+, macOS 10.9+, and Linux 3.x+, with legacy support through Type C to A/B adapters.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Multi-purpose room

Technical Specifications

Specifications sourced from Biamp product documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Why choose an active cable over a passive one?
Active construction with built-in USB hubs maintains USB 3.2 signal integrity over the full 50-foot (15 m) run, where passive cables would drop data at that distance.

Can it carry video?
Yes. Through DisplayPort Alt Mode (DP1.4), it passes video up to 3840 x 2160 at 30 Hz along with audio, in addition to USB data.

What connectors does it use?
The cable terminates in Type C to Type C connectors and supports legacy devices through Type C to A/B adapters.

Does it deliver power?
It supports USB Power Delivery up to 60 W (port dependent) with PD 2.0 and 3.0.

Which operating systems are supported?
It works with Windows 8 and later, macOS 10.9 and later, and Linux 3.x and later where USB 3.0 is supported.

What warranty applies?
Biamp provides a two-year limited warranty. Contact Creation Networks for BYOM cabling design help.
