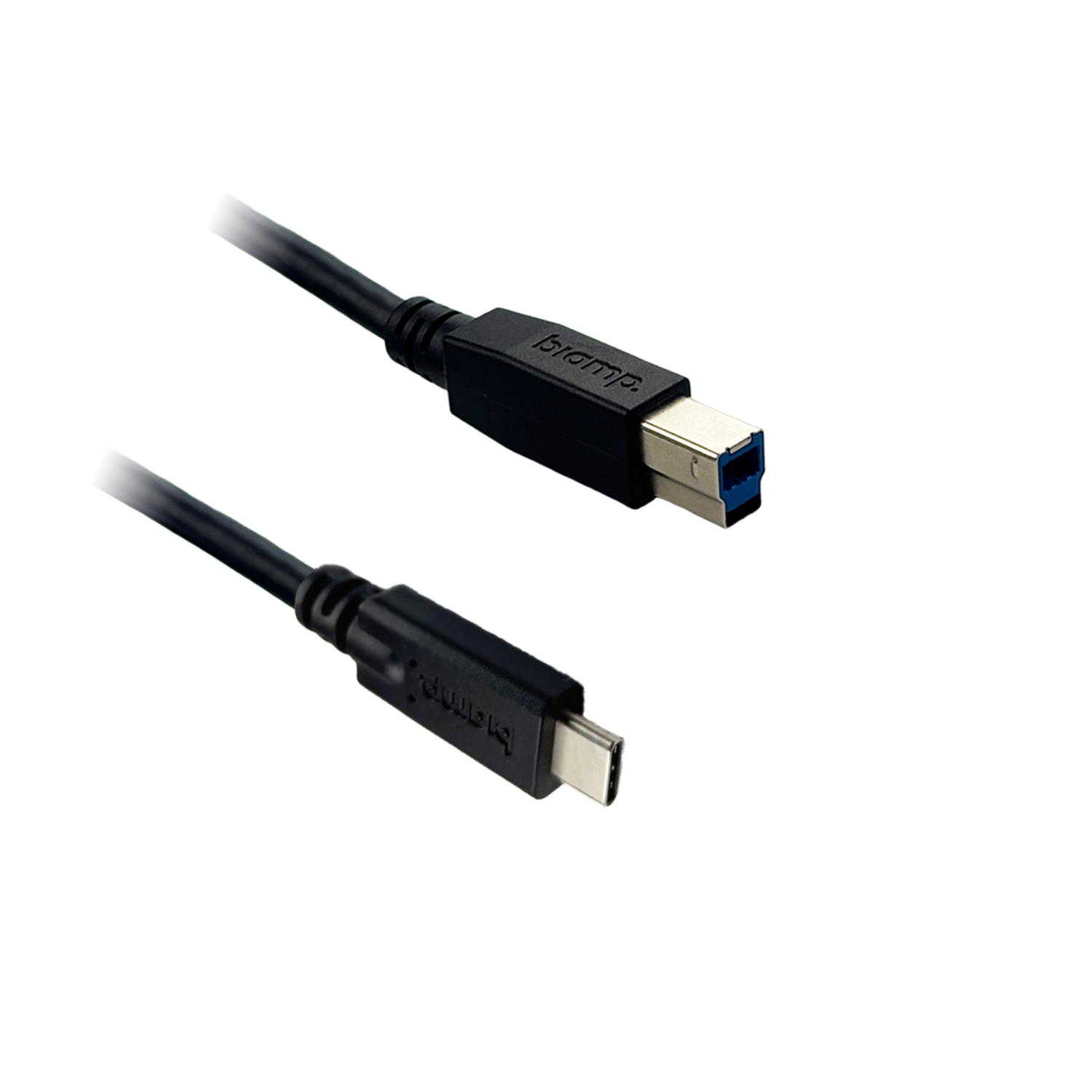

Biamp 910-10138 EasyConnect USB3-30-BC

Product Overview

The Biamp EasyConnect USB3-30-BC is a 30-foot active USB cable with Type B to Type C connectors, built for long-distance USB 3.2 connections in conference rooms and meeting spaces. Its active design, tinned copper conductors, and multi-mode optical fibers hold SuperSpeed 5 Gbps data across a distance where passive cables would fail. The Type B to Type C configuration links Type B peripherals, such as conferencing cameras and interface devices, to modern USB-C host connections. This commercial-grade cable is a reliable run between table-side devices and rack- or wall-mounted AV hardware.

Product Description

The USB3-30-BC addresses the challenge of extending USB peripheral connections over distance in an installed AV system. It is an active USB 3.2 Gen 1 (USB 3.0) cable that supports data transfer up to 5 Gbps and includes up to two built-in USB hubs across its SuperSpeed lanes to sustain signal integrity over the full 30-foot (9 m) length. The unidirectional design connects a USB-C host to a USB-B device, matching the wiring of many conferencing peripherals and BYOM interface boxes. Construction includes double shielding, gold-plated contacts, and a slim 4.8 mm PVC jacket rated VW-1, with RoHS and REACH compliance for commercial deployment. It operates from 5 to 20 V and works with Windows 8 and later, macOS 10.9 and later, and Linux 3.x and later, with legacy support available through Type C to A/B adapters. The cable is a natural companion to the Type C to Type C EasyConnect USB3-50-CC when a room mixes device connector types, and the full cabling range is available in the Biamp collection. Biamp provides a two-year limited warranty.

Key Features

• Active Long-Distance Design — Tinned copper conductors and multi-mode optical fibers maintain USB 3.2 signal integrity across the full 30-foot run.
• SuperSpeed Data — Supports USB 3.2 Gen 1 data transfer up to 5 Gbps for cameras and peripherals.
• Type B to Type C — Connects USB-B conferencing devices to modern USB-C host connections in a single run.
• Slim Commercial Build — A 4.8 mm double-shielded jacket with gold-plated contacts and VW-1 rating routes cleanly through furniture and conduit.
• Broad Compatibility — Works with Windows 8+, macOS 10.9+, and Linux 3.x+, with legacy support through Type C to A/B adapters.
• Warranted for Installation — Backed by a two-year limited warranty for installed AV reliability.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Multi-purpose room

Technical Specifications

Specifications sourced from Biamp product documentation. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Why choose an active cable over a passive one?
Active construction with built-in USB hubs maintains USB 3.2 signal integrity over the full 30-foot (9 m) run, where passive cables would drop data at that distance.

What connectors does it use?
It uses a Type B connector on the device end and a Type C connector on the host end, with legacy support through Type C to A/B adapters.

Is there a direction to connect it?
Yes. The cable is unidirectional, with the USB-C end connecting to the host and the USB-B end connecting to the device.

What data rate does it support?
It supports USB 3.2 Gen 1 data transfer up to 5 Gbps.

Which operating systems are supported?
It works with Windows 8 and later, macOS 10.9 and later, and Linux 3.x and later where USB 3.0 is supported.

What warranty applies?
Biamp provides a two-year limited warranty. Contact Creation Networks for help matching cables to your room devices.
