Biamp 910-00213 EasyConnect USB3-30-CC
Product Overview

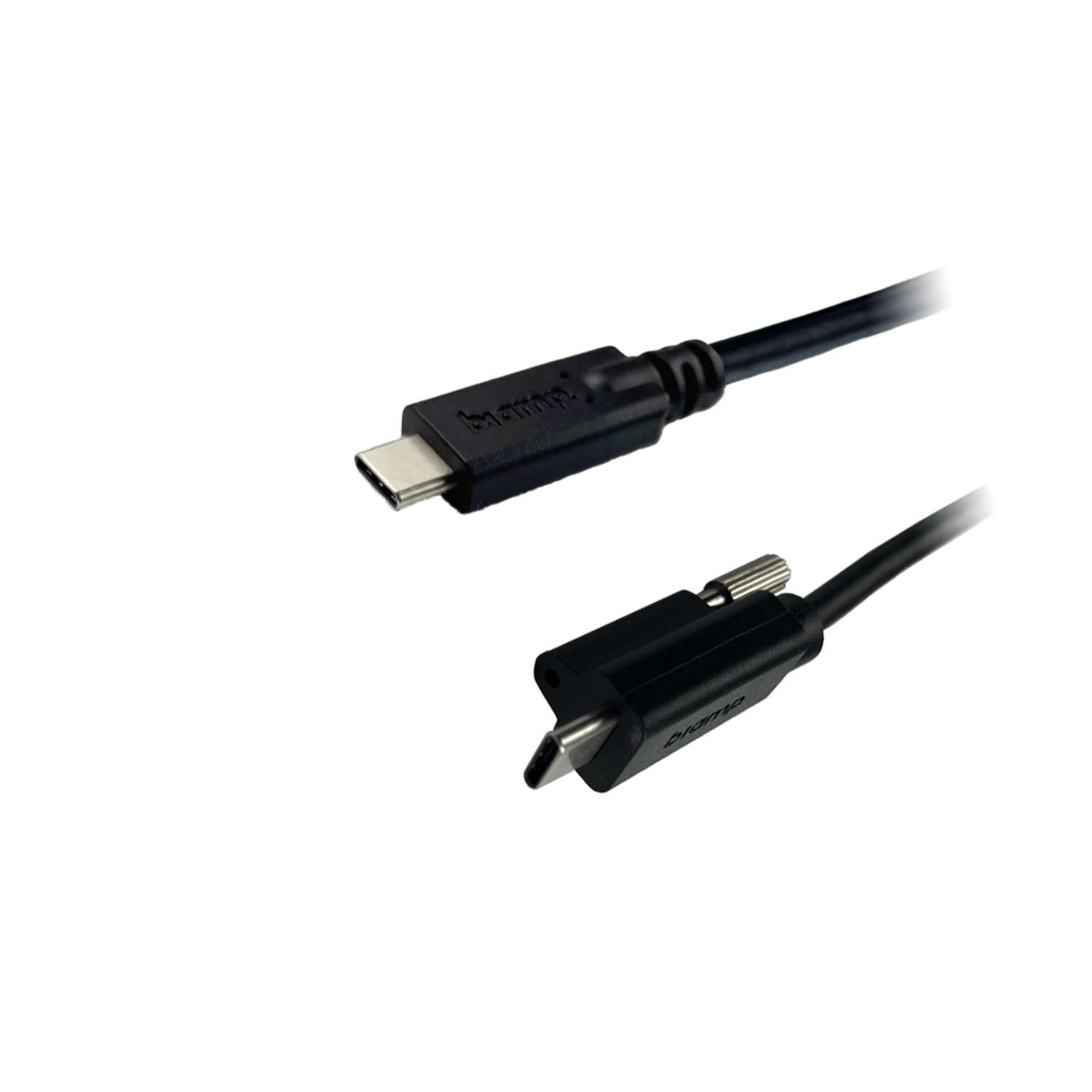

The Biamp EasyConnect USB3-30-CC is a 30-foot (10 m) active USB 3.2 Gen 1 Type C to Type C cable for commercial AV installations and long-distance conference room connectivity. Its active design with multi-mode optical fibers carries SuperSpeed data, up to 60 W of USB Power Delivery, and DisplayPort Alt Mode video across distances that exceed passive USB limits. It is engineered for table-to-display and table-to-rack runs in larger meeting spaces. This active USB-C cable is part of the Biamp EasyConnect cable line used to standardize AV system wiring.
Product Description
The EasyConnect USB3-30-CC solves the common problem of connecting USB-C sources and peripherals over long in-room distances where passive cables cannot maintain the signal. Its active construction combines tinned copper conductors with multi-mode optical fibers to carry USB 3.2 Gen 1 data at up to 5 Gbps across a full 30-foot run. The cable supports DisplayPort Alt Mode (DP1.4), HDMI through DP Alt Mode, and audio over USB or DisplayPort, enabling a single USB-C cable to move video up to 3840 x 2160 at 30 Hz alongside data. Up to 60 W of Power Delivery (subject to the Type-C port) can charge or power a connected device, and PD 2.0 and 3.0 profiles are supported. An E-Marker configuration chip and Billboard device capability let host systems correctly identify and manage the cable. This makes it well suited to ceiling-mounted cameras, wall displays, and floor-box connections in a conference room, boardroom, or multi-purpose room. Integrators can pair it with cabling from the Biamp collection, and for shorter Type C to Type C runs the EasyConnect USB3-15-CC (15 ft) covers the same connection at a reduced distance. The USB3-30-CC carries a two-year limited warranty and is RoHS and REACH compliant for commercial deployment.
Key Features
- Active 30-Foot USB-C Run — Combines tinned copper and multi-mode optical fibers to carry USB 3.2 Gen 1 data across distances that exceed passive cable limits.
- 5 Gbps SuperSpeed Data — Supports cameras, audio devices, and BYOM peripherals in larger conference rooms and boardrooms.
- DisplayPort Alt Mode Video — Carries video up to 3840 x 2160 at 30 Hz over DP1.4, with HDMI through DP Alt Mode and audio over USB or DisplayPort.
- 60 W Power Delivery — Delivers up to 60 W (type-C port dependent) with PD 2.0 and 3.0 support to power or charge a connected device.
- E-Marker and Billboard Support — Includes a configuration chip and capability reporting so host systems identify and manage the cable correctly.
- Commercial-Grade Construction — Uses double shielding, gold-plated contacts, and a VW-1 rated jacket for dependable performance in permanent installations.
Technical Specifications
| Model / SKU | EasyConnect USB3-30-CC (910-00213) |
| USB Standard | USB 3.2 Gen 1 (formerly USB 3.0) |
| Connector Type | Type C to Type C (male-male) |
| Max Data Rate | 5 Gbps (SuperSpeed) |
| Signal Type | Active |
| Max Video Resolution | 3840 x 2160 at 30 Hz, 4:4:4, 8-bit |
| Alt Mode Support | DisplayPort (DP1.4), HDMI (via DP Alt Mode), Audio (via USB/DP) |
| Max Power Delivery | 60 W (type-C port dependent); PD 2.0/3.0 |
| E-Marker / Billboard | Yes / Yes |
| Cable Length | 30 ft (10 m) |
| Conductor Material | Tinned copper & multi-mode optical fibers |
| Wire Gauge | 20 + 24 + 28 AWG |
| Shield Type | Double shielded (foil + braid) |
| Cable Outer Diameter | 6.5 mm |
| Min. Static Bend Radius | 65 mm |
| Operating Voltage / Max Current | 5–20 V / 3 A |
| Operating Temperature | 0 to 50 °C |
| Compliance | RoHS, REACH; VW-1 |
| Warranty | 2-year limited |
Specifications sourced from the Biamp EasyConnect USB3-30-CC datasheet. Confirm detailed specifications against current Biamp documentation.
