Biamp 910-00013 EasyConnect MPX CRS USB-C

Product Overview

The Biamp EasyConnect MPX CRS USB-C is a spring-driven USB-C cable retractor system built for the MPX 250 and MPX 200 BYOM touch controllers. It replaces the loose cable-and-weight bag of a standard MPX installation with four retractor modules that pull out to the laptop and self-retract when released. Integrators specify this conference table USB-C retractor to keep meeting-room tables clean and to control cable clutter in high-use rooms. The system installs under the tabletop as part of an EasyConnect MPX bring-your-own-meeting deployment.

Product Description

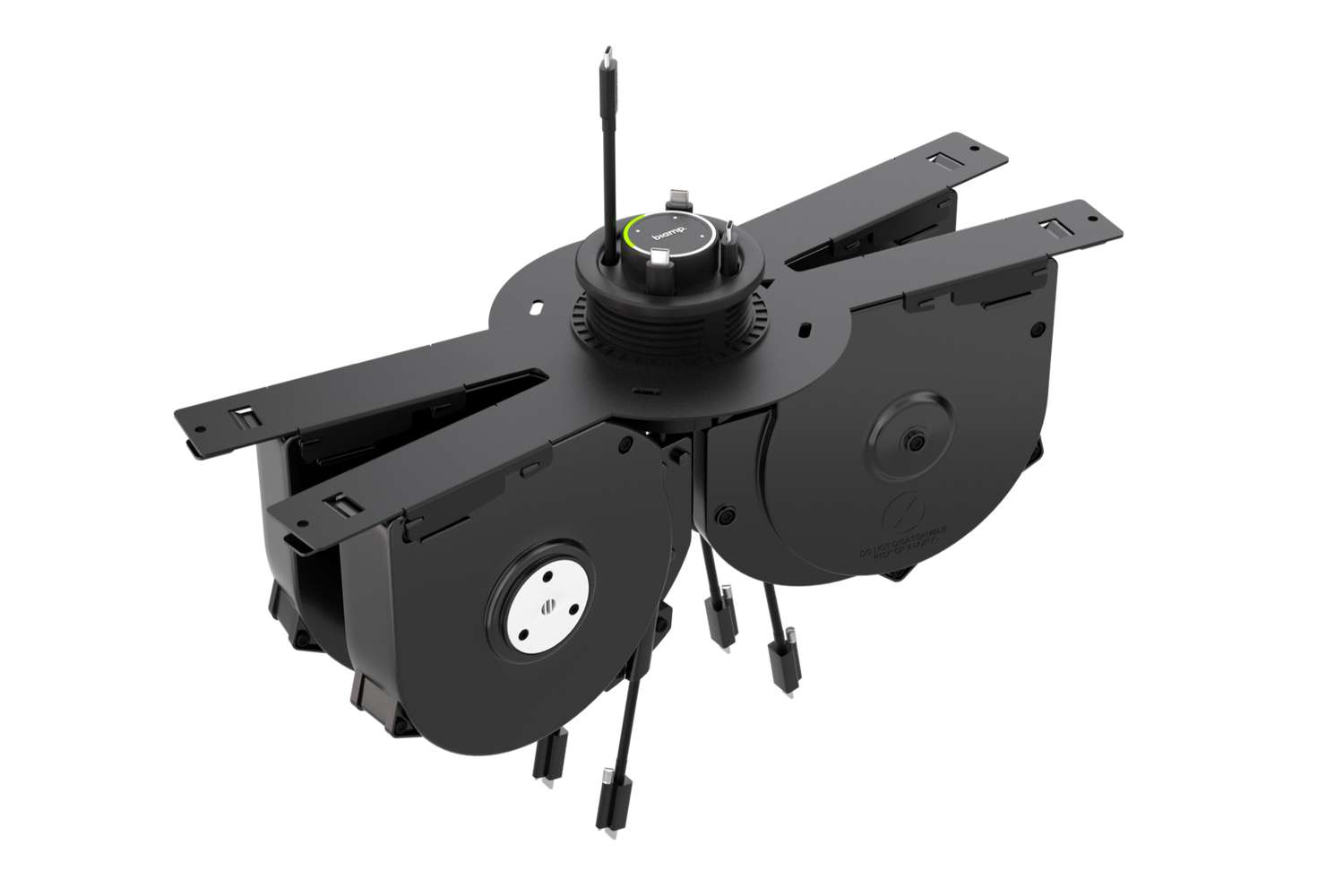

The MPX CRS USB-C is a mechanical cable-management accessory for Biamp's EasyConnect MPX 250 and MPX 200 presentation systems. In place of the standard cable rings, cables, and weights that ship with the MPX device, it uses an X-bracket that mounts to the pass-through cylinder under the table and holds four independent spring-driven retractors. Each retractor feeds a USB-C hub cable up through the cylinder to the tabletop, so users pull only the length they need and the cable retracts cleanly when the meeting ends. This design reduces cable stress, prevents tangling, and keeps unused cable off the floor and out of the walkway. For tables with an existing rectangular cutout, the CRS works alongside the MPX Table Adapter plates so integrators can retrofit rooms without drilling a new hole. The MPX device must sit parallel to and within 100-125 mm (4-5 in) of the X-bracket to keep cable tension correct and prevent a retractor from dislodging. Biamp lists a patent pending on the USB cable retractor mechanism. Because it is part of the EasyConnect MPX BYOM platform, the CRS supports the same clean single-cable USB-C connection that lets users share content, camera, and audio from a personal laptop. Integrators building out multiple rooms can pair it with the companion MPX TA 203x508 and MPX TA 203x260 table adapters, and browse the full Biamp collection for related MPX components.

Key Features

• Spring-Driven Retraction — Four retractor modules pull out to the laptop and automatically retract, so cables never sit loose on the table or floor.
• MPX 250 and MPX 200 Compatibility — The system is designed to replace the standard cable-management hardware on Biamp's MPX 250 and MPX 200 touch controllers.
• Under-Table X-Bracket Mount — A dedicated X-bracket secures the retractors to the pass-through cylinder for a stable, serviceable installation beneath the tabletop.
• Table Adapter Support — The CRS works with the MPX Table Adapter plates to retrofit tables that already have a rectangular cutout without cutting a new hole.
• Cable-Stress Management — Positioning the MPX device within 100-125 mm of the X-bracket keeps cable tension controlled and reduces the risk of a retractor dislodging.
• Patent-Pending Mechanism — Biamp lists a patent pending on the USB cable retractor mechanism used in this accessory.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Multi-purpose room

Technical Specifications

Source: Biamp EasyConnect MPX Accessories Installation Guide (downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which touch controllers does the MPX CRS USB-C work with?
It is designed for the Biamp EasyConnect MPX 250 and MPX 200 touch controllers, replacing their standard cable-management hardware.

Can I install it on a table that already has a rectangular cutout?
Yes. Used with the MPX Table Adapter plates (TA 203x508 or TA 203x260), the CRS retrofits tables with an existing opening so you do not need to drill a new hole.

How far can the MPX device sit from the retractor assembly?
The MPX device should be parallel to and within 100-125 mm (4-5 in) of the X-bracket to keep cable tension controlled and prevent a retractor from dislodging.

How does it fit into an AV system integration?
The CRS is a mechanical cable-management layer for the EasyConnect MPX BYOM platform; the MPX device continues to carry USB-C content, camera, and audio to the room's AV system as usual.

Does it require power or configuration?
No. The retractors are spring-driven mechanical modules, so there is no power supply or software setup for the CRS itself.

What is included in the kit?
The kit includes the X-bracket mounting plate, four retractor modules, mounting screws and washers, and cable ties for dressing the lower cables.

Is it covered by a warranty?
Warranty terms follow Biamp's standard policy; confirm current coverage in Biamp's warranty documentation for this accessory.
