Biamp 910-00011 EasyConnect MPX TA 203x508
Product Overview

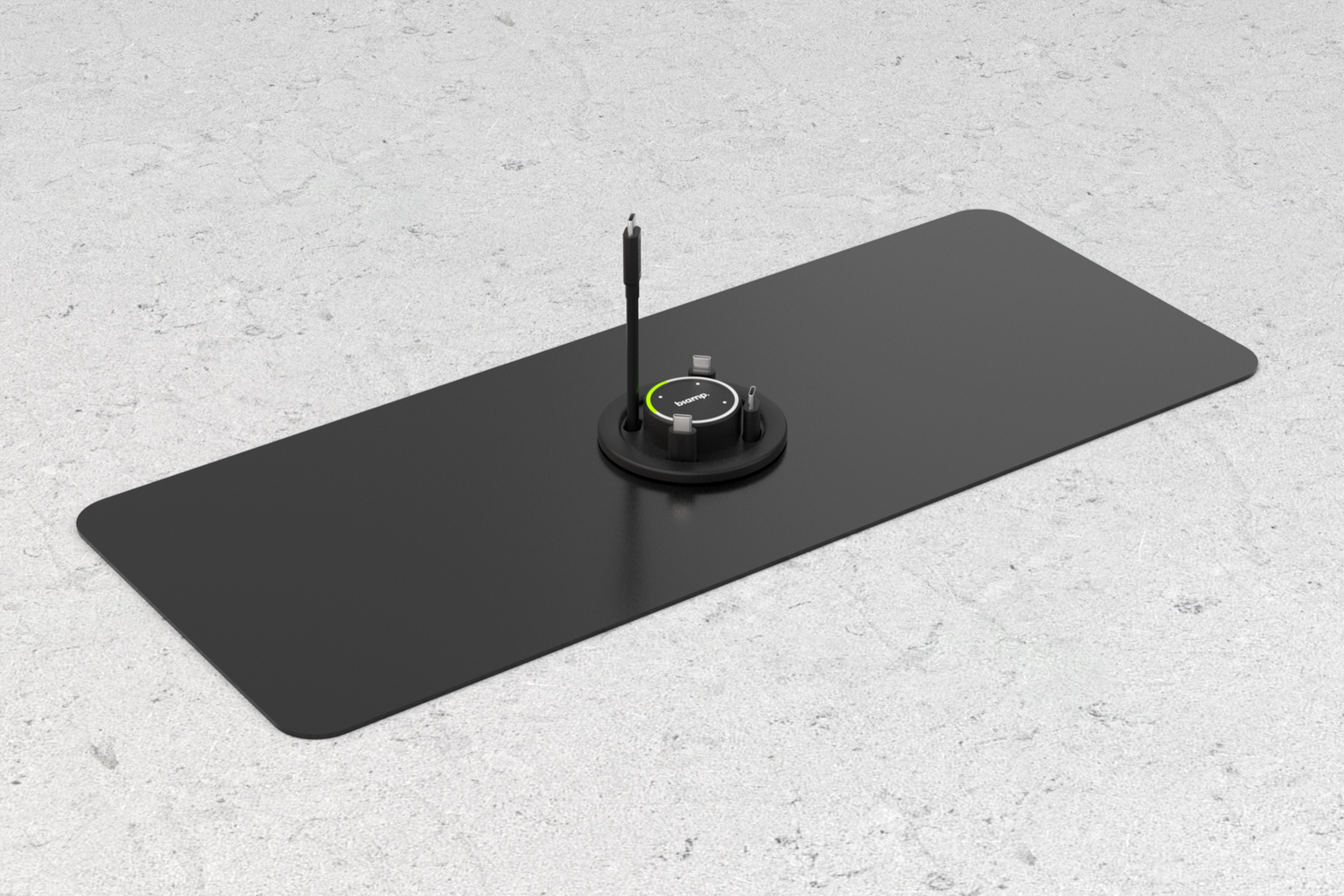

The Biamp EasyConnect MPX TA 203x508 is a large table adapter plate that lets integrators install an EasyConnect MPX 250 or MPX 200 BYOM touch controller into a conference table that already has a rectangular cutout, without drilling a new hole. It covers a maximum table opening of 179 x 483 mm (7 x 19 inches) and provides a clean, simplified space for the touch controller and cable cylinder. The adapter is a practical retrofit accessory for commercial AV meeting room installations.
Product Description
The MPX TA 203x508 addresses a common problem in conference room refits: a table that already has a large rectangular cutout from a previous device. Rather than fabricating a new tabletop or drilling, integrators center the top and bottom adapter plates over the existing opening and mount the MPX pass-through cylinder through the plate, converting the rectangular hole into a finished round port for the MPX touch controller. The large adapter is designed for openings up to 179 x 483 mm (7 x 19 inches); when used together with the USB-C Cable Retractor System (CRS), the covered opening should be no longer than 179 x 431 mm (7 x 17 inches) so the CRS bracket can be secured to the table. It works with the MPX 250 touch controller, the MPX 200 touch controller, and the USB-C Cable Retractor System. The kit ships with the top and bottom adapter plates plus the required mounting hardware. For smaller cutouts, see the EasyConnect MPX TA 203x260, and for cable management review the EasyConnect MPX CRS USB-C retractor. Browse more options in the Biamp collection.
Key Features
- Retrofit table adapter — The plate lets integrators install an MPX touch controller into a preexisting rectangular table cutout without drilling a new hole.
- Large opening coverage — It covers a maximum table opening of 179 x 483 mm (7 x 19 inches).
- Cable Retractor System compatible — When paired with the USB-C Cable Retractor System, the covered opening should be no longer than 179 x 431 mm (7 x 17 inches).
- MPX controller support — The adapter works with the EasyConnect MPX 250 and MPX 200 touch controllers.
- Complete kit — Top and bottom adapter plates ship with the required mounting hardware for a clean tabletop finish.
Technical Specifications
| Model / SKU | EasyConnect MPX TA 203x508 / 910-00011 |
| Type | Large table adapter plate (retrofit) |
| Maximum opening covered | 179 x 483 mm (7 x 19 in) |
| Maximum opening with CRS | 179 x 431 mm (7 x 17 in) |
| Compatible controllers | EasyConnect MPX 250, MPX 200 |
| Included | Top and bottom adapter plates, mounting hardware |
Specifications sourced from the Biamp EasyConnect MPX Accessories Installation Guide. Confirm detailed specifications against current Biamp documentation.
