Biamp 901.0304 Tesira SEC-4

Product Overview

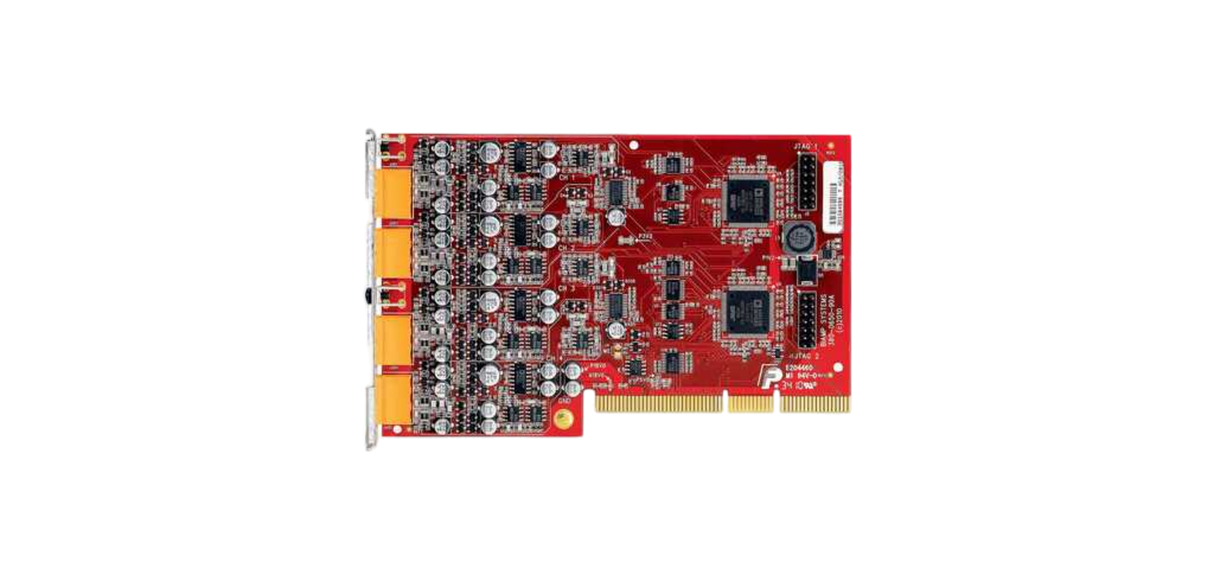

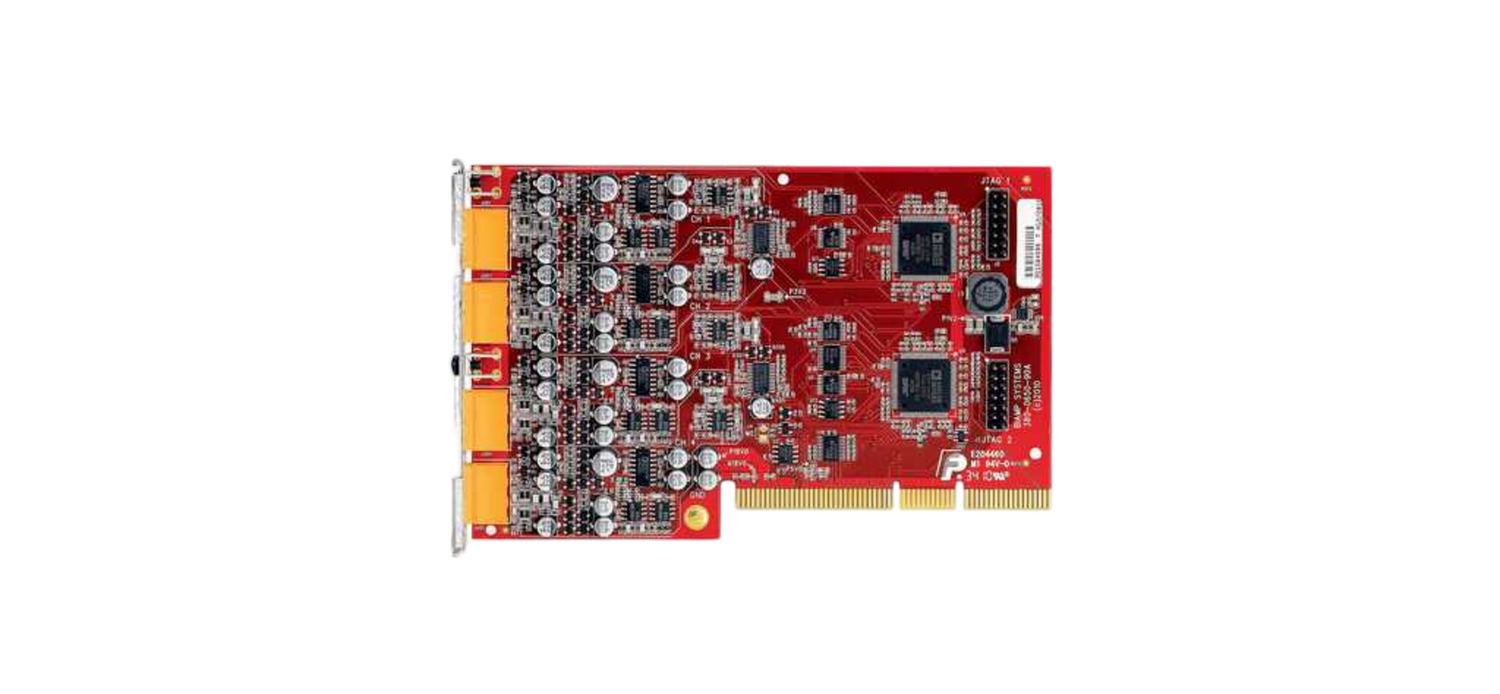

The Biamp Tesira SEC-4 is a 4-channel mic/line modular input card with Acoustic Echo Cancellation for Tesira SERVER and SERVER-IO devices. It is the input card integrators specify for conferencing rooms where clean, echo-free far-end audio is the priority. Built on Biamp's wide-band Sona AEC technology, this Tesira AEC input card handles four balanced inputs and applies echo cancellation without drawing on the host DSP's processing resources. The SEC-4 mixes and matches with other modular I/O cards in either Tesira server chassis.

Product Description

Each SEC-4 provides four channels of mic or line level audio input with Acoustic Echo Cancellation on plug-in barrier strip connectors. The card carries the next generation of Biamp's Sona AEC technology and adds SpeechSense, an algorithm that more accurately distinguishes human speech from noise for more natural conferencing. Notably, the SEC-4 performs its echo cancellation on the card itself, so it does not consume DSP resources from the SERVER or SERVER-IO. In Tesira software, control is separated into distinct blocks for the mic/line inputs and for the AEC processing, which lets the system designer use the inputs independently and apply the AEC algorithm to signals from a different part of the system. The card also includes automatic gain control, a high-pass filter, and additional noise reduction on the AEC outputs. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert, with a 0–66 dB gain range in 6 dB steps. The SEC-4 fits AV system integration projects for boardrooms, conference rooms, and multi-purpose rooms that rely on hands-free conferencing. It incorporates AES48-2005 grounding and EMC practices, is RoHS compliant, and carries Biamp's 5-year warranty. Pair it with the Tesira SOC-4 output card and the Tesira STC-2 telephone card, or browse the full Biamp collection.

Key Features

• Four Mic/Line Inputs With AEC — The card provides four channels of balanced mic or line level input with Acoustic Echo Cancellation on plug-in barrier strip connectors.
• Sona AEC Technology — Echo cancellation uses the next generation of Biamp's wide-band Sona technology for proven conferencing performance.
• SpeechSense Processing — The SpeechSense algorithm more accurately distinguishes human speech from noise for more natural communication.
• Independent DSP Load — The card performs AEC on board and does not use processing resources from the SERVER or SERVER-IO DSP.
• Separate Input and AEC Blocks — Software separates mic/line input control from AEC processing so the algorithm can be applied to inputs elsewhere in the system.
• Full Input Control — Each input offers gain with clip indicator, +48V phantom power, mute, level, and signal invert across a 0–66 dB gain range in 6 dB steps.
• Added Conditioning — The card includes automatic gain control, a high-pass filter, and additional noise reduction on the AEC outputs.
• 5-Year Warranty — The SEC-4 is covered by Biamp Systems' 5-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Multi-purpose room
• Training room
• All-hands room

Technical Specifications

Specifications sourced from the Biamp Tesira SEC-4 datasheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which Tesira devices accept the SEC-4?
The SEC-4 installs in Tesira SERVER and SERVER-IO devices and can be mixed and matched with other modular I/O cards.

Does the SEC-4 use the host DSP for echo cancellation?
No. It performs AEC on the card itself and does not consume processing resources from the SERVER or SERVER-IO DSP.

What echo cancellation technology does it use?
It uses the next generation of Biamp's wide-band Sona AEC technology, plus the SpeechSense algorithm.

Can I use the inputs without AEC?
Yes. Software separates the mic/line input and AEC blocks, so you can use the inputs independently or apply AEC to signals elsewhere in the system.

What connectors and phantom power does it provide?
Inputs are balanced on plug-in barrier strips with +48 VDC phantom power at 7 mA per input.

What is the gain range?
Each input offers 0–66 dB of gain in 6 dB steps.

What warranty applies?
Biamp covers the SEC-4 with a 5-year warranty.
