Barco XDX-4K40 40, 000 Lumens 4K 3 Chip DLP Projector - R9010403

Product Overview

The Barco XDX-4K40 (R9010403) is a 40,000-lumen native 4K (4096×2160) 3-chip DLP projector with a pure RGB laser light source. Built for themed entertainment and high-end attraction work, it pairs the higher resolution and wide-gamut color that demanding content requires. The projector ships in a rugged rigging frame for protected handling and install, and arrives without a lens so integrators can match an XLD optic to the venue. A sealed optical assembly with integrated cooling supports long-term, reliable operation.

Product Description

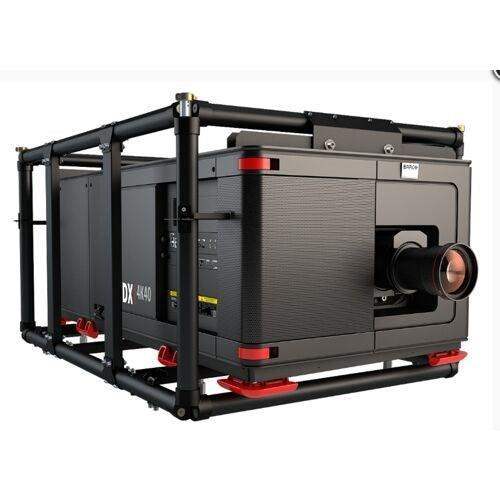

The XDX-4K40 produces native 4K images from three 1.38" DC4K DMDs and a pure RGB laser source rated for 40,000 hours of brightness stability. As the product image shows, the engine is mounted inside a protective rigging frame that simplifies rigging and on-site handling. Its DCI-P3 color gamut, covering 98.5% of Rec. 2020, delivers the realistic, saturated images that immersive attractions depend on. The unit is sold without a lens and is compatible with a range of Barco XLD prime lenses in both high-brightness and high-contrast variants; the high-contrast range effectively doubles contrast for a modest 15% brightness reduction. Pair it with an ultra-short-throw option such as the XLD 0.38:1 UST 90° lens. For UXGA laser phosphor alternatives in the same large-venue family, compare the UDX-U45 and UDX-U40, or browse the full Barco collection. Modular components, including individual laser plates, can be swapped on-site by a trained technician, and the cloud-based Barco Insights Management Suite provides remote health monitoring for high uptime.

Key Features

• 40,000 Lumens — Typical native brightness for large screens and high-ambient themed environments.
• Native 4K Resolution — 4096×2160 from three 1.38" DC4K DMDs for crisp, detailed imagery.
• Pure RGB Laser Light Source — Wide-gamut color rated for 40,000 hours of brightness stability.
• DCI-P3 / Rec. 2020 Color — Covers 98.5% of Rec. 2020 (xy coordinates) for lifelike, saturated images.
• XLD Lens Compatibility — Works with 12 high-brightness and high-contrast XLD prime lenses (lens not included).
• Rugged Rigging Frame — Delivered in a protective frame that eases handling and adds rigidity.
• Modular Serviceability — Easy-to-replace modules and individual laser plates keep maintenance fast and cost-effective.
• Sealed Optical Assembly — Patented sealed core with integrated cooling for consistent performance.
• Insights Management Suite — Cloud-based remote health monitoring supports 24/7 uptime.

Typical Applications

• Themed entertainment and attractions
• Immersive and dark-ride media
• Museums and visitor experiences
• Auditoriums and large-venue installations
• Projection mapping requiring native 4K detail

Technical Specifications

Frequently Asked Questions

Does the XDX-4K40 include a lens? No. It ships without a lens and is compatible with 12 Barco XLD prime lenses in high-brightness and high-contrast variants.

What is the difference between high-brightness and high-contrast XLD lenses? The high-contrast range effectively doubles the contrast ratio for a modest 15% reduction in brightness.

What resolution and light source does it use? Native 4K (4096 x 2160) from three 1.38" DC4K DMDs with a pure RGB laser light source.

How long does the light source last? The RGB laser delivers 40,000 hours of brightness stability under average usage conditions.

What color performance does it offer? A DCI-P3 gamut covering 98.5% of Rec. 2020, measured in xy color coordinates.

Is it suitable for 24/7 themed entertainment? Yes. With Insights Management Suite remote monitoring it supports continuous operation, with periodic power-off recommended for optimal performance.
