Barco R9409760-B UDX-U45 45,000-Lumen UXGA Laser DLP Projector (No Lens)

Product Overview

The Barco UDX-U45 (R9409760-B) is a 45,000-lumen (ISO) UXGA 3-chip DLP laser phosphor projector built for the most demanding large-venue and projection-mapping work. This configuration ships without a lens, letting integrators specify the exact TLD+ optic the installation requires. Its UXGA 1600×1200 resolution and 4:3 aspect ratio minimize light waste when mapping onto 3D objects and irregular surfaces. A sealed optical core and laser phosphor light source support continuous 24/7 operation with low maintenance.

Product Description

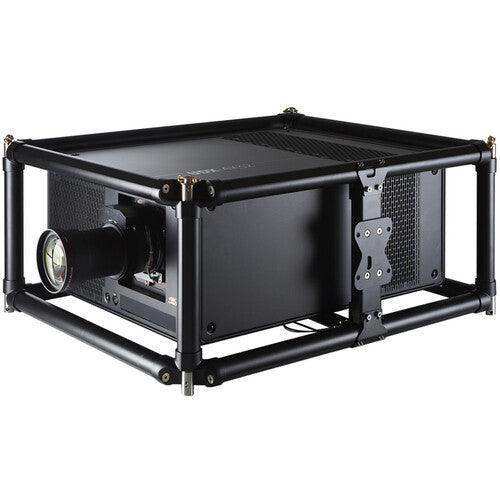

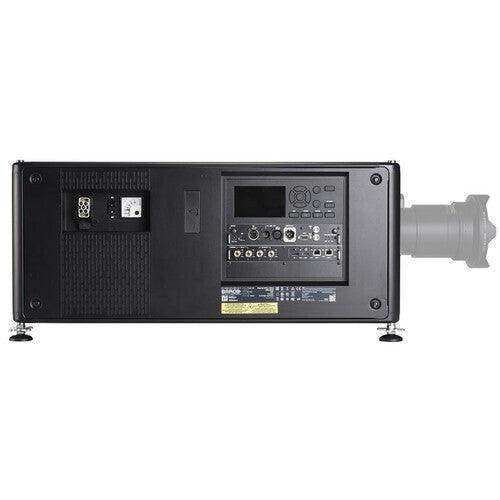

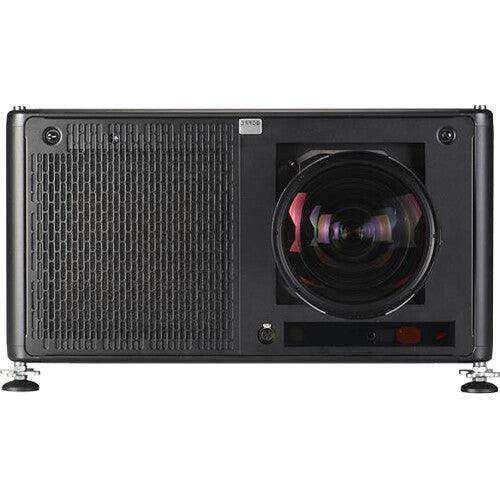

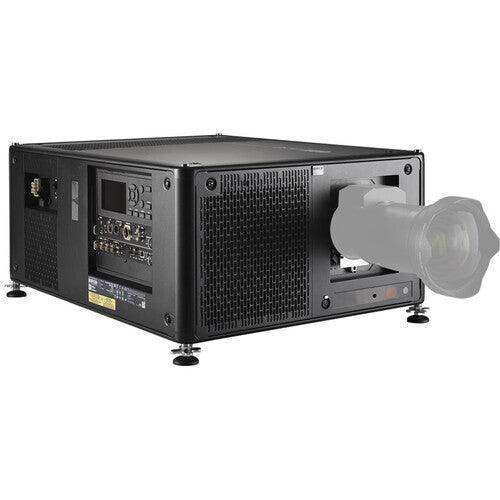

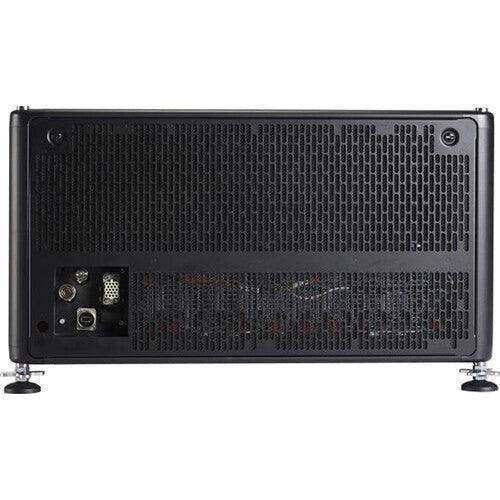

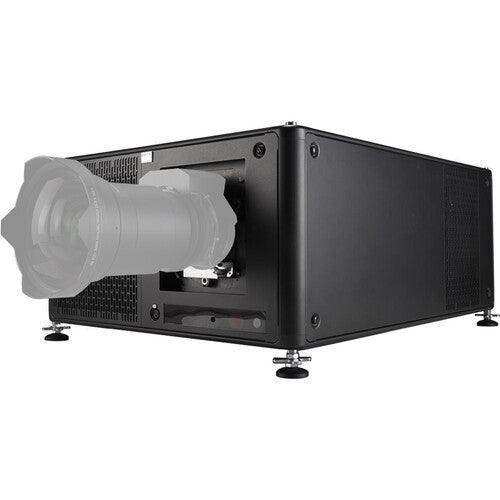

The UDX-U45 pairs 45,000 ISO lumens (39,500 ANSI) with Barco's Pulse 4K Single Step Processing electronics for sharp images and low latency. The gallery images show the compact UDX chassis with integrated cooling, the rear input panel, and the motorized lens mount that accepts the full TLD+ lens range. Constant Light Output (CLO) holds brightness and color steady across the rated 20,000-hour light-source lifetime, and the FLEX feature lets you tune and lock brightness and resolution per show. Because this unit is sold without a lens, pair it with a Barco TLD+ optic from our TLD+ ANY 4 lens pack with UST or the TLD+ ANY 5 lens pack. If you need a factory-bundled GSM and Wi-Fi build, see the UDX-U45LC with GSM & Wi-Fi, and for a 40,000-lumen alternative review the UDX-U40. Browse the full Barco collection for matching rigging and accessories. The modular components remove quickly to limit servicing time, and existing TLD+ lenses from prior Barco fleets can be reused.

Key Features

• 45,000 ISO Lumens — UXGA 3-chip DLP output rated at 45,000 ISO / 39,500 ANSI lumens for high-ambient and large-format screens.
• Laser Phosphor Light Source — Inorganic phosphor wheel delivers a 20,000-hour lifetime with no lamp replacement or image flicker.
• UXGA 1600×1200 Resolution — 0.96" DMD x3 in a 4:3 aspect ratio reduces light waste on 3D mapping surfaces.
• Constant Light Output (CLO) — Maintains brightness and color over the life of the light source for repeatable shows.
• FLEX Brightness & Resolution — Tune and lock output to a specific show, covering more use cases with fewer units.
• Barco Pulse 4K Electronics — Single Step Processing with embedded warp, blend, and ScenergiX edge blending.
• Motorized Lens Mount — Accepts the full TLD+ lens range with motorized zoom, focus, and shift plus lens memory.
• 24/7 Operation — Sealed DLP core, integrated cooling, and 360° orientation for fixed installs.
• Wide Color Gamut — Matches Xenon color quality and outperforms the Rec. 709 color space with P7 correction.

Typical Applications

• Auditoriums and large meeting rooms
• Houses of worship
• Broadcast studios
• Multi-purpose and event venues
• Simulation and CAVE immersive environments
• Projection mapping on theme-park, museum, and stadium surfaces

Technical Specifications

Frequently Asked Questions

Does the UDX-U45 include a lens? No. This R9409760-B configuration ships without a lens so you can select the correct TLD+ optic for your throw distance and venue.

Which lenses fit the UDX-U45? It accepts the full Barco TLD+ lens range, from 0.37:1 ultra-short throw up to 7.5-11.5:1 long throw, all with motorized zoom, focus, and shift.

How bright is the UDX-U45? It is rated at 45,000 ISO lumens (39,500 ANSI lumens) from its UXGA 3-chip DLP engine.

What is the light source lifetime? The laser phosphor light source is rated for 20,000 hours, and Constant Light Output keeps brightness and color steady across that span.

Can it run continuously? Yes. The sealed DLP core, integrated cooling, and 360° orientation support 24/7 fixed-installation operation.

How does the UDX-U45 differ from the UDX-U40? Both share the UXGA platform; the U45 delivers 45,000 ISO lumens versus 40,000 on the U40 for brighter screens and longer throws.
