Barco UDX-U45LC 45,000-Lumen UXGA Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9409760-BU

Product Overview

The Barco UDX-U45LC (R9409760-BU) is a 45,000-lumen (ISO) UXGA 3-chip DLP laser phosphor projector configured with integrated GSM and Wi-Fi connectivity and the Barco Insights Management Suite. This unit ships without a lens so integrators can fit the exact TLD+ optic the venue requires. Its UXGA 1600×1200 resolution and 4:3 aspect ratio make it well suited to 3D projection mapping while minimizing light waste on irregular surfaces. The laser phosphor light source and sealed core support 24/7 operation with low maintenance.

Product Description

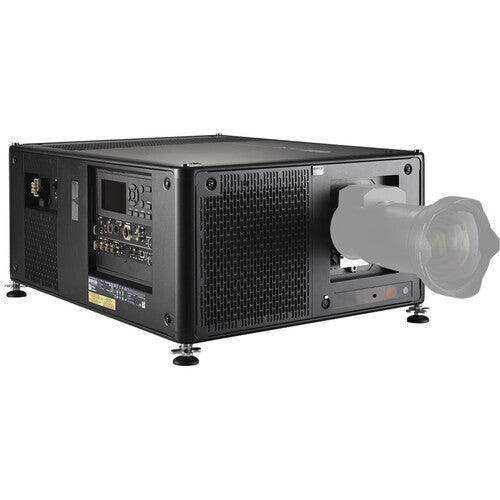

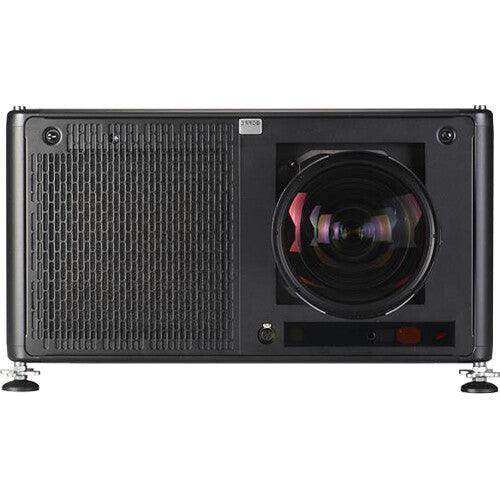

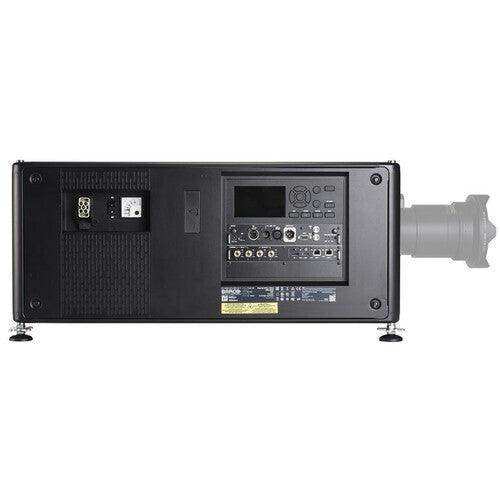

The UDX-U45LC delivers 45,000 ISO lumens (41,000 center / 39,500 ANSI) driven by Barco Pulse 4K electronics with Single Step Processing for sharp images and low latency. The gallery images show the rugged UDX chassis, the rear I/O panel with HDBaseT, HDMI 2.0, DisplayPort, and Quad 3G/12G SDI, and the motorized lens mount that accepts the full TLD+ range. Integrated Wi-Fi and GSM feed the cloud-based Barco Insights Management Suite, giving a live dashboard of light-source run-times and operating conditions for fleet management. Constant Light Output holds brightness and color steady over the rated 20,000-hour light-source life, while FLEX lets you tune and lock output per show. Since the projector is sold without a lens, pair it with an optic from our TLD+ ANY 4 lens pack with UST or TLD+ ANY 5 lens pack. For a standard build without GSM/Wi-Fi see the UDX-U45 No Lens, and explore the full Barco collection for rigging and accessories.

Key Features

• 45,000 ISO Lumens — UXGA 3-chip DLP output rated 45,000 ISO / 41,000 center / 39,500 ANSI lumens.
• Integrated GSM & Wi-Fi — Built-in wireless and cellular connectivity for remote monitoring and control.
• Barco Insights Management Suite — Cloud-based dashboard tracks usage data and light-source run-times across a fleet.
• Laser Phosphor Light Source — 20,000-hour lifetime with no lamp replacement or image flicker.
• UXGA 1600×1200 Resolution — 0.96" DMD x3 in a 4:3 aspect ratio for efficient 3D mapping.
• Constant Light Output (CLO) — Maintains brightness and color over the life of the light source.
• FLEX Brightness & Resolution — Tune and lock output to a specific show to cover more use cases per unit.
• Barco Pulse 4K Electronics — Single Step Processing with embedded warp, blend, and ScenergiX edge blending.
• 24/7 Operation — Sealed DLP core, integrated cooling, and 360° orientation for fixed installs.
• HDR10 & Wide Gamut — HDR10 input support with color that outperforms the Rec. 709 space.

Typical Applications

• Projection mapping on theme-park, museum, and architectural surfaces
• Auditoriums and large meeting rooms
• Houses of worship
• Broadcast studios
• Multi-purpose and event venues
• Simulation and CAVE immersive environments

Technical Specifications

Frequently Asked Questions

What does the LC designation and -BU suffix mean? This is the UDX-U45LC build (R9409760-BU) configured with integrated GSM and Wi-Fi connectivity; it ships without a lens.

How bright is the UDX-U45LC? It is rated at 45,000 ISO lumens, 41,000 center lumens, and 39,500 ANSI lumens.

Which lenses fit this projector? The motorized mount accepts the full Barco TLD+ lens range, so you can select the throw ratio your venue needs.

What is the Barco Insights Management Suite? It is a cloud-based platform that stores projector usage data and light-source run-times and provides a live operating dashboard for fleet management.

Is it suitable for 3D projection mapping? Yes. The UXGA 4:3 aspect ratio and high brightness make it well suited to mapping onto 3D objects with minimal light waste.

Can it operate continuously? Yes. The sealed DLP core, integrated cooling, and 360° orientation support 24/7 fixed-installation use.
