Barco UDX-4K40 40,000-Lumen 4K UHD Laser DLP Projector (No Lens) - R9408949-BU

Product Overview

The Barco UDX-4K40 is a 40,000 ISO-lumen 4K UHD laser projector supplied here without a lens for large-venue projection and commercial AV integration where the integrator selects the optics. This no-lens configuration suits fixed installations and rental fleets that pair the projection engine with existing or project-specific TLD+ lenses. The 3-chip DLP architecture and laser phosphor light source deliver high-brightness 4K imagery for auditoriums, broadcast environments, and corporate deployments. Buying the body without a lens lets AV teams match throw geometry to each venue while controlling cost.

Product Description

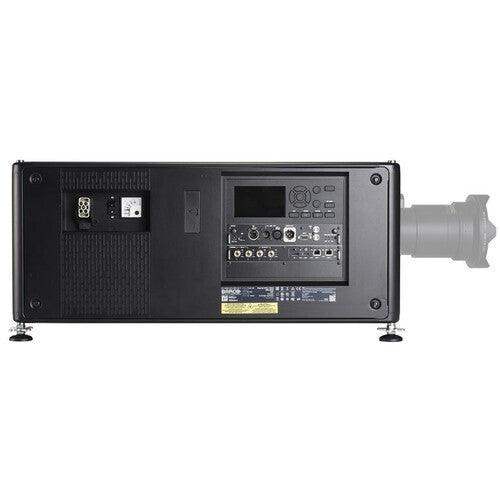

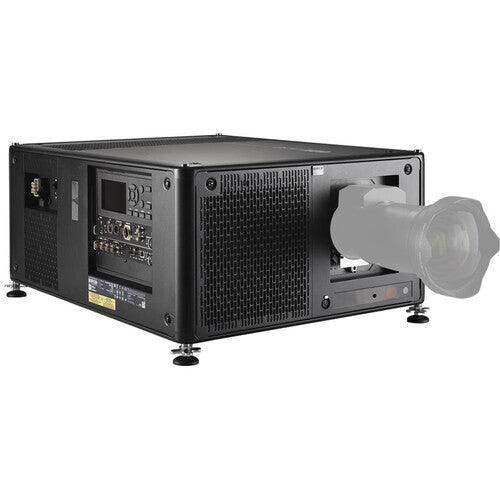

This UDX-4K40 ships as the projection engine without optics, as shown in the gallery above, ready to accept any compatible Barco TLD+ lens for the required throw distance. The 3-chip 0.9-inch DMD engine and laser phosphor light source produce 4K UHD images at up to 40,000 ISO lumens, with Constant Light Output for stable brightness over the 20,000-hour light source life. If you would rather order the lens with the projector, see the UDX-4K40 COMM+LNS configuration, or the transport-ready UDX-4K40 with frame and flight case. For lower brightness within the same lens ecosystem, review the UDX-4K32 platform in the Barco collection at Creation Networks. The gallery images detail the chassis, input panel, and lens mount referenced in this listing.

Key Features

• 40,000 ISO lumens — The laser phosphor light source delivers high-brightness 4K UHD images for large screens and high-ambient venues.
• No-lens configuration — The engine ships without optics so integrators can fit the TLD+ lens that matches each venue's throw distance.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips produce a 3,840 x 2,400 image with accurate color for demanding content.
• FLEX2 brightness and resolution tuning — Lock the projector to a defined brightness and resolution per show so one unit covers a wider operating range.
• Laser phosphor light source — A rated 20,000-hour light source life removes lamp costs and eliminates image flicker over long runs.
• Embedded warp and blend — Built-in ScenergiX edge blending supports multi-projector arrays without external processing hardware.
• Constant Light Output — CLO maintains consistent brightness and color across the light source lifetime for predictable image matching.
• Wide input set — HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G-SDI inputs integrate with professional signal chains.
• TLD+ lens compatibility — The lens mount accepts the full TLD+ range from 0.65 to 11.5:1 throw ratios for flexible placement.
• 360-degree orientation — The sealed DLP core and any-angle mounting support fixed and rigged installations.

Typical Applications

• Auditorium — High lumen output and 4K resolution fill large screens for presentations and live events.
• Broadcast studio — Accurate color and high brightness support on-set projection and virtual backdrops.
• House of worship — Clear large-format imagery serves sanctuaries and overflow spaces with multi-projector blending.
• Large commercial all-hands room — Bright 4K images keep content legible for large audiences in corporate town-hall settings.
• Multi-purpose room — The no-lens build lets the engine adapt to changing room configurations with chosen optics.

Technical Specifications

Frequently Asked Questions

Does this configuration include a lens? No. It ships without a lens so you can fit the TLD+ lens matching your throw distance; the TLD+ range spans 0.65 to 11.5:1 throw ratios.

What exactly ships in this package? You receive the UDX-4K40 projector body, the power cord, and the rugged wireless/XLR wired remote control. The lens is ordered separately.

How does it integrate with an existing AV system? The projector accepts HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G-SDI sources, with control over RS232, IR, XLR wired, and optional WiFi and GSM, plus DMX 512 for show control.

Does it support edge blending for multi-projector arrays? Yes. Embedded warp and blend with Barco ScenergiX provides horizontal and vertical edge blending for combining several units into one blended image.

What are the power and cooling requirements? The unit draws up to 3,750 W on a 200-240 V, 20A circuit and dissipates up to 12,795 BTU/h with integrated cooling, so size circuits and HVAC accordingly.

What warranty applies? Barco provides a standard 3-year warranty on the UDX-4K40.
