Barco R9408949-FC UDX 4K40 COMM+FRM+FC; Body(FLEX)+GSM+WIFI+Man Frame+FCase

Product Overview

The Barco UDX-4K40 is a 40,000 ISO-lumen 4K UHD laser projector configured here for transport and rapid deployment in large-venue projection and touring AV. This COMM+FRM+FC build pairs the FLEX projector body with GSM and WiFi control, a manual rigging frame, and a flight case, making it suited to rental and staging fleets that move equipment between venues. The 3-chip DLP engine and laser phosphor light source support auditorium projection, live events, and high-impact corporate deployments. A lens is not included, so integrators can pair the projector with the TLD+ lens that matches each install.

Product Description

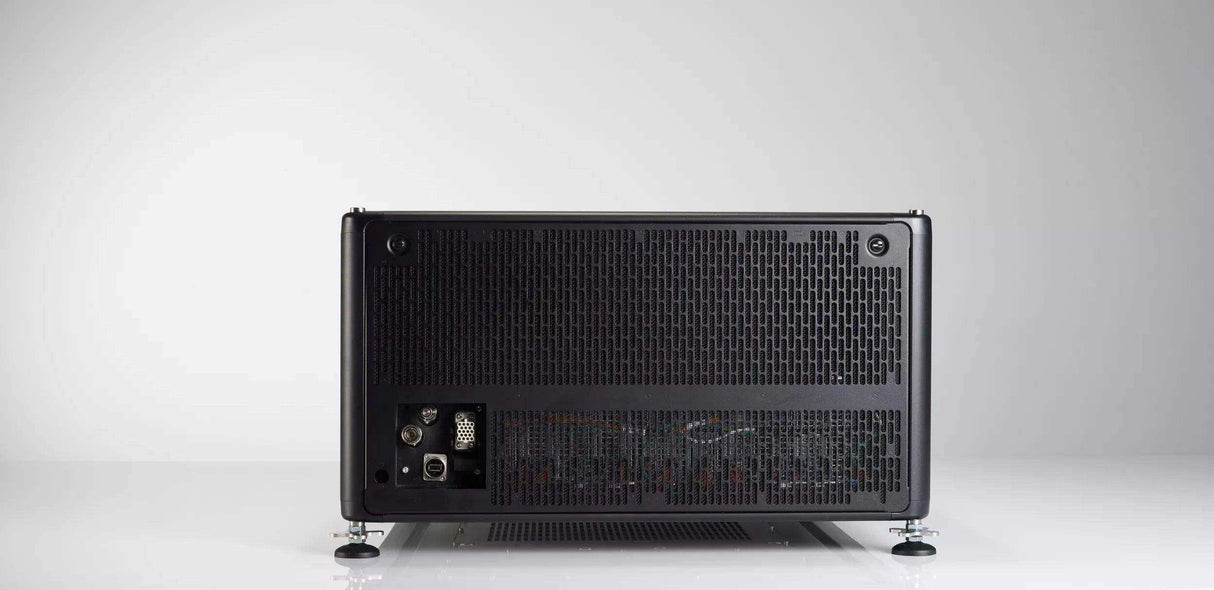

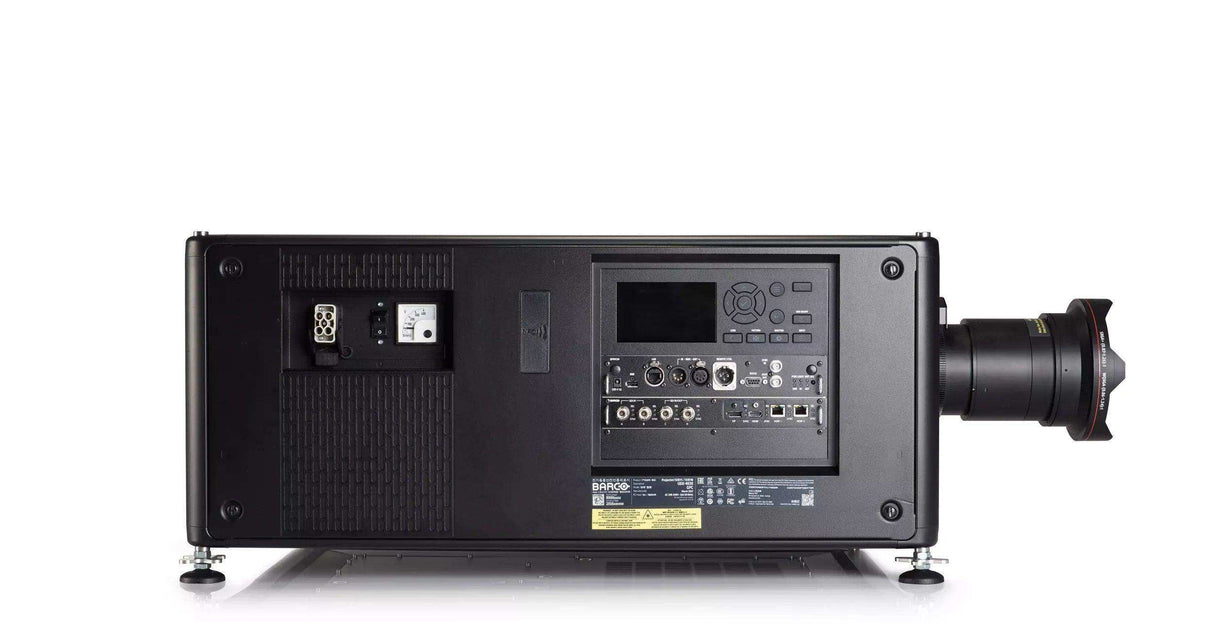

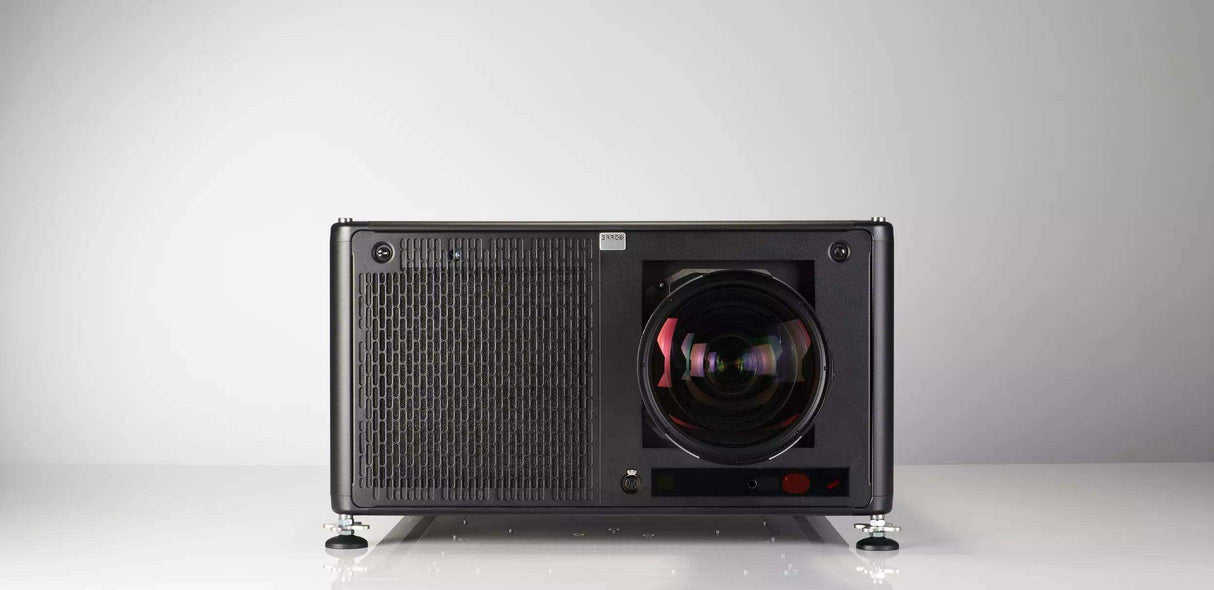

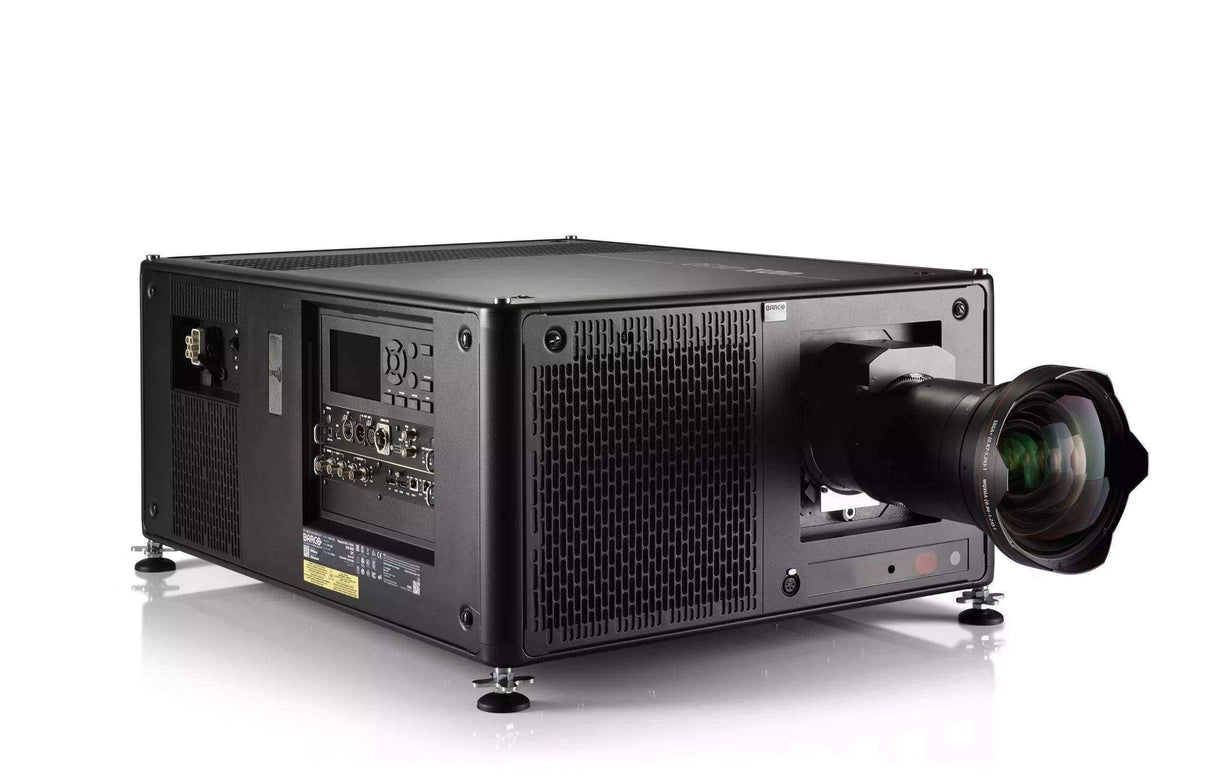

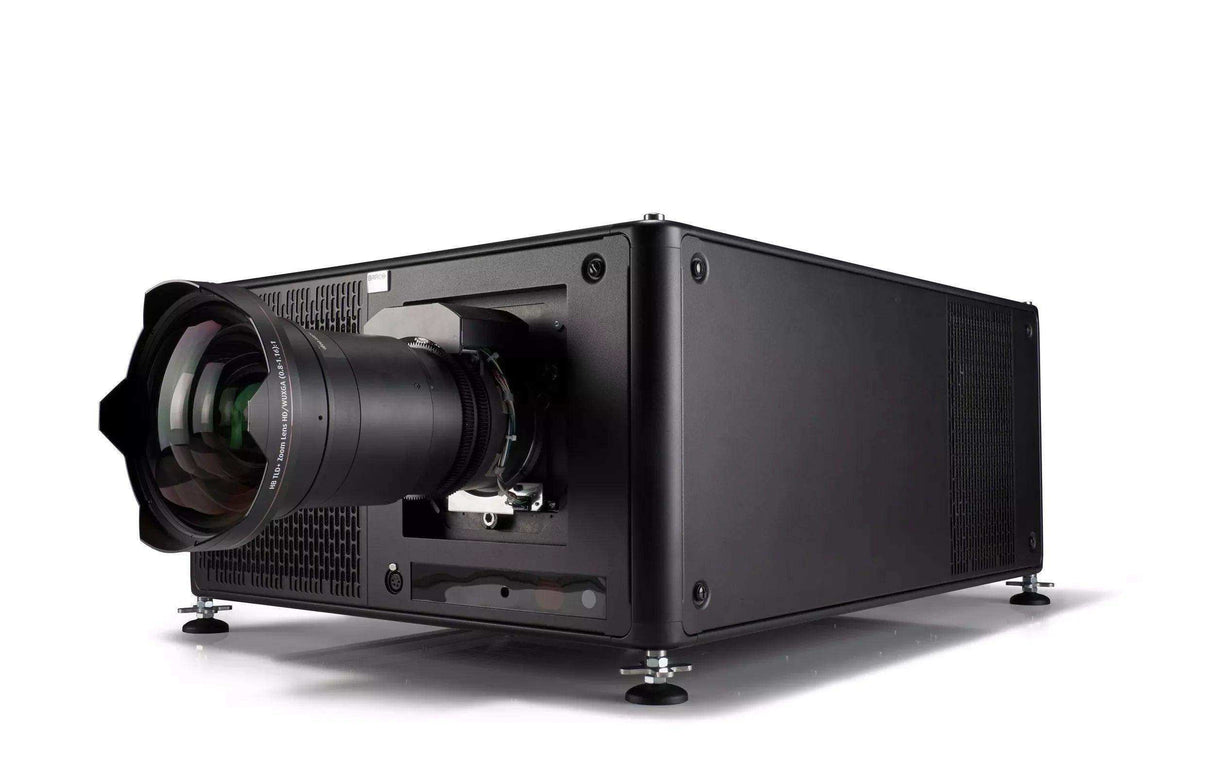

This configuration of the UDX-4K40 includes the FLEX projector body, GSM and WiFi connectivity, a manual frame for rigging and stacking, and a protective flight case for transport, as pictured in the gallery above. The 3-chip 0.9-inch DMD engine and laser phosphor light source produce 4K UHD images at up to 40,000 ISO lumens with Constant Light Output for consistent brightness over the light source life. Because no lens ships with this package, select the appropriate TLD+ lens for your throw geometry; if you prefer a build with the lens included, see the UDX-4K40 COMM+LNS configuration. For lower-brightness requirements, the UDX-4K32 platform shares the same chassis and lens ecosystem. Browse all related models in the Barco projector collection at Creation Networks. The gallery images show the frame, flight case, and projector body referenced in this listing.

Key Features

• 40,000 ISO lumens — The laser phosphor light source delivers high-brightness 4K UHD images for large screens and high-ambient venues.

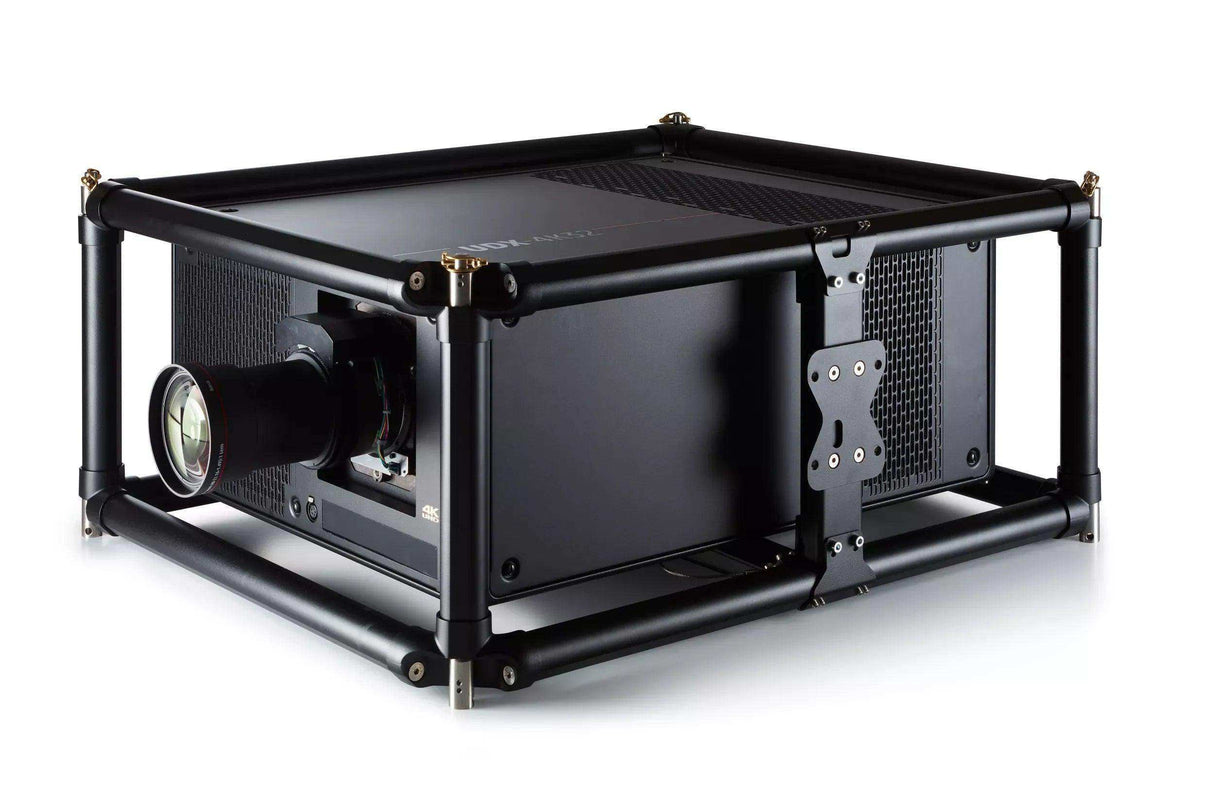

• Manual frame and flight case — This build includes a manual rigging frame and a flight case, protecting the projector during transport between touring and staging venues.
• 4K UHD 3-chip DLP — Three 0.9-inch DMD chips produce a 3,840 x 2,400 image with accurate color for demanding content.
• FLEX2 brightness and resolution tuning — Lock the projector to a defined brightness and resolution per show so one unit covers a wider operating range.
• Laser phosphor light source — A rated 20,000-hour light source life removes lamp costs and eliminates image flicker over long event runs.
• Embedded warp and blend — Built-in ScenergiX edge blending supports multi-projector arrays without external processing hardware.
• Constant Light Output — CLO maintains consistent brightness and color across the light source lifetime for predictable image matching.
• Wide input set — HDBaseT, HDMI 2.0 with HDR10, DisplayPort 1.2, and Quad 3G/12G-SDI inputs integrate with professional signal chains.
• GSM and WiFi control — Remote monitoring options join XLR wired, IR, and RS232 control for managing units across a venue.
• 360-degree orientation — The sealed DLP core and any-angle mounting support rigged and stacked installations.

Typical Applications

• Auditorium — High lumen output and 4K resolution fill large screens for presentations and live events.
• Broadcast studio — Accurate color and high brightness support on-set projection and virtual backdrops.
• House of worship — Clear large-format imagery serves sanctuaries and overflow spaces with multi-projector blending.
• Large commercial all-hands room — Bright 4K images keep content legible for large audiences in corporate town-hall settings.
• Multi-purpose room — The flight case and frame make the projector practical for spaces with changing event configurations.

Technical Specifications

Frequently Asked Questions

Is a lens included with this configuration? No. This COMM+FRM+FC build ships without a lens so you can select the TLD+ lens that matches your throw distance; lens throw ratios range from 0.65 to 11.5:1 across the Barco range.

What exactly ships in this package? You receive the UDX-4K40 FLEX projector body, GSM and WiFi connectivity options, a manual rigging frame, and a flight case, plus the power cord and rugged wireless/XLR wired remote control.

How does it integrate with an existing AV system? The projector accepts HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G-SDI sources, with control over RS232, IR, XLR wired, WiFi, and GSM, plus DMX 512 for show control.

Does it support edge blending for multi-projector arrays? Yes. Embedded warp and blend with Barco ScenergiX provides horizontal and vertical edge blending for combining several units into one blended image.

What are the power and cooling requirements? The unit draws up to 3,750 W on a 200-240 V, 20A circuit and dissipates up to 12,795 BTU/h with integrated cooling, so size circuits and HVAC accordingly.

What warranty applies? Barco provides a standard 3-year warranty on the UDX-4K40.
