Barco R9409070-B1 UDM W22 COMM+LNS; Body+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

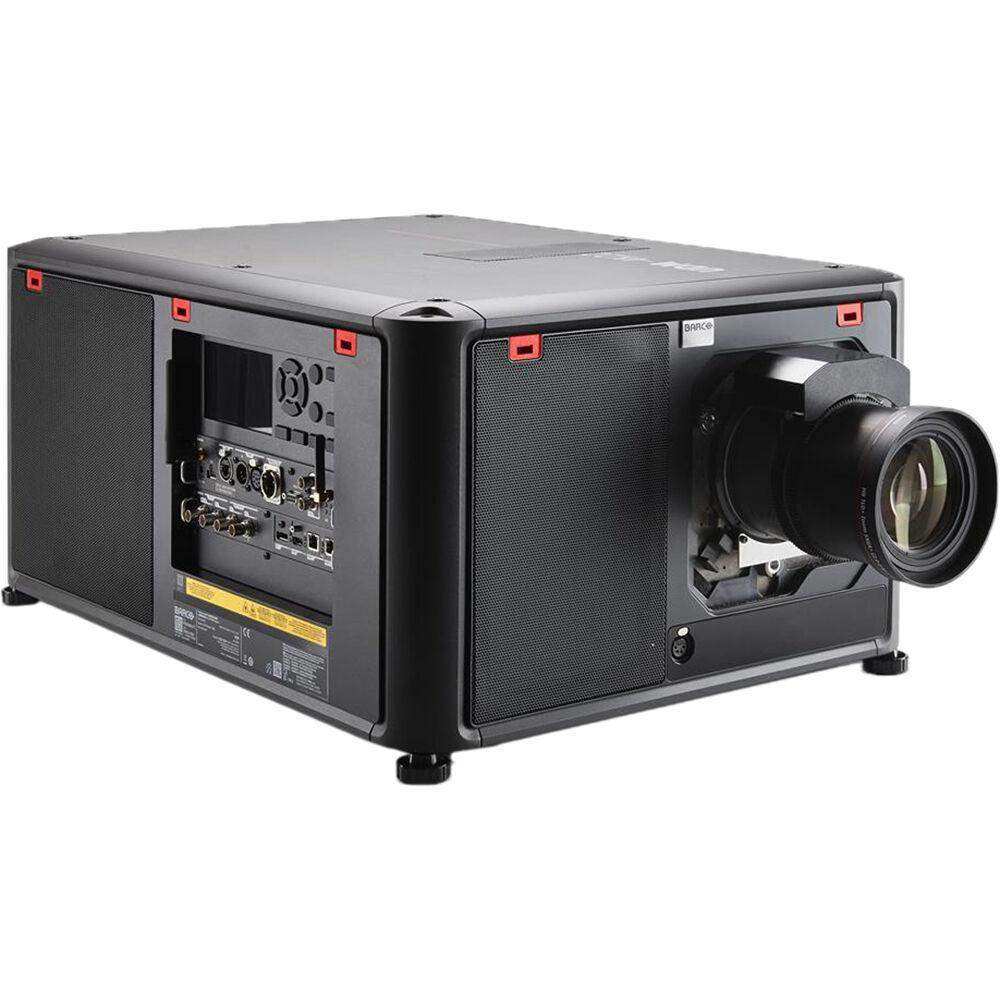

The Barco UDM-W22 COMM+LNS (R9409070-B1) is a ready-to-install package combining the 21,000-lumen WUXGA 3-chip DLP laser projector with a customer-selected TLD+ lens. It targets permanent installations in large auditoriums, houses of worship, and corporate all-hands venues that need a bright, color-accurate image. The configuration includes the projector body with GSM and Wi-Fi connectivity plus any TLD+ lens except the 90-degree UST lens. The inorganic laser phosphor light source delivers a 20,000-hour rated lifetime with constant light output.

Product Description

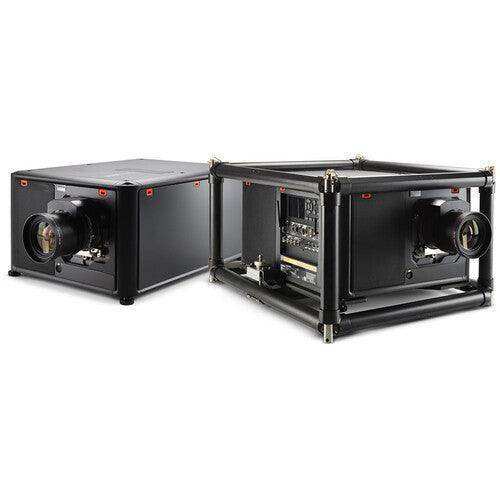

Built on the unified Barco Pulse electronics platform, the UDM-W22 uses Single Step Processing to handle warping, scaling, and 4K UHD source processing in a single pass for low latency and reduced dark time. The native WUXGA (1,920 x 1,200) 0.96-inch DMD imaging system accepts input resolutions from NTSC up to 4K (4,096 x 2,160). As shown in the product gallery, the projector pairs with a TLD+ lens matched to the room, supported by the widest lens shift on the market for flexible placement. For productions that need rigging and transport hardware, compare the UDM-W22 Touring Kit, or start with the body-only configuration. Browse the full range of Barco projection systems in our Barco collection.

Key Features

• Projector Plus Lens Package — Projector body bundled with any Barco TLD+ lens except the 90-degree UST, matched to your throw and screen size.
• 22,000-Lumen Class Brightness — Rated at 21,000 center lumens, 20,000 ANSI lumens, and 22,000 ISO lumens for large screens in high ambient light.
• WUXGA 3-Chip DLP — Three 0.96-inch DMD chips at native 1,920 x 1,200 resolution deliver a wide color spectrum exceeding the Rec. 709 space.
• Laser Phosphor Light Source — Inorganic phosphor wheel with a 20,000-hour rated lifetime eliminates lamp replacement and image flicker.
• Barco Pulse Single Step Processing — Warping, scaling, and 4K UHD processing run in one step for low latency and razor-sharp images.
• GSM and Wi-Fi Connectivity — Integrated wireless and cellular connectivity feed the Barco Insights Management Suite for remote fleet monitoring.
• Widest Lens Shift — Vertical lens shift from -100% to +130% and horizontal up to +/-40%, with motorized zoom, focus, and position memory.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• DynaBlack Contrast — Full-field 2200:1 native contrast with Barco DynaBlack raising dynamic contrast to 20,000:1.
• 360-Degree Orientation — Full rotational mounting with active and passive 3D support for flexible installation.

Typical Applications

• Large auditoriums and lecture halls
• House of worship main-screen projection
• Corporate all-hands and large meeting rooms
• Broadcast and production studios
• Multi-purpose event and ballroom spaces

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the UDM-W22? This package includes any Barco TLD+ lens except the 90-degree UST lens, covering options from 0.37 fixed through 7.5-11.5:1 zoom. Select the lens based on your throw distance and screen width.

What is included in this configuration? This SKU (R9409070-B1) includes the projector body, GSM and Wi-Fi modules, and a TLD+ lens, plus a power cord and wireless/XLR wired rugged remote control.

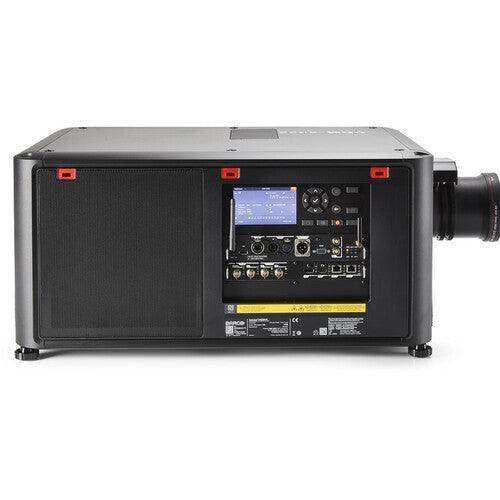

How does the UDM-W22 integrate into an AV system? It offers HDBaseT, HDMI 2.0, DisplayPort 1.2, and SDI inputs, RS232 and XLR/IR control, an integrated web server, Projector Toolset, and DMX 512 for show control.

Does it support edge blending for multi-projector setups? Yes. The UDM-W22 includes ScenergiX horizontal and vertical edge blending with embedded warp and blend for tiled and panoramic projection.

What are the power and cooling requirements? It runs on 200-240V at 13.5A (or 120-160V at reduced brightness) and dissipates up to 6,890 BTU/hr, with a typical noise level of 48 dB(A).

What warranty applies? Barco provides a standard 3-year warranty on the UDM-W22.
