Barco UDM-W22 22,000-Lumen WUXGA Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9409070-BU

Product Overview

The Barco UDM-W22 (R9409070-BU) is a 21,000-lumen WUXGA 3-chip DLP laser projector built for large auditoriums, houses of worship, and rental and staging work. This configuration ships with integrated GSM and Wi-Fi connectivity but no lens, so integrators can pair it with the exact TLD+ lens their throw distance and screen size require. At 48 kg, it is the lightest 22K-class laser projector on the market, cutting rigging and shipping overhead. The inorganic laser phosphor light source delivers a 20,000-hour rated lifetime with constant light output across the run.

Product Description

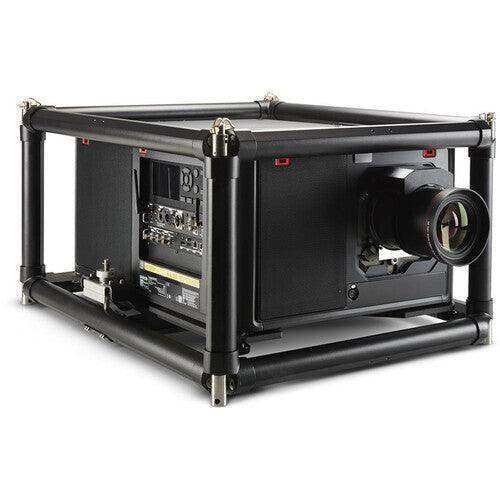

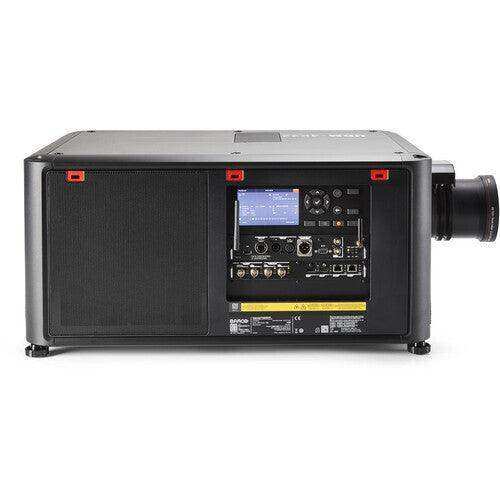

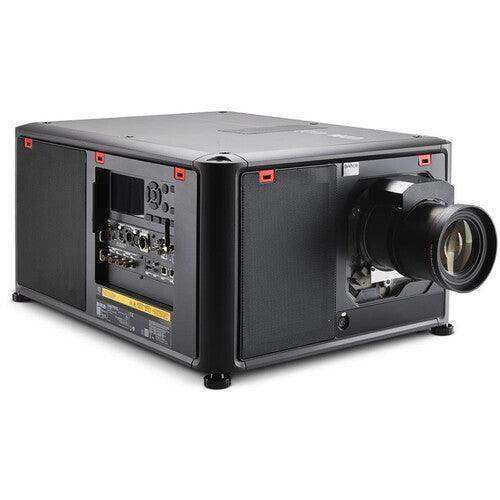

Built on the unified Barco Pulse electronics platform, the UDM-W22 uses Single Step Processing to handle warping, scaling, and 4K UHD source processing in a single pass for low latency and reduced dark time. The native WUXGA (1,920 x 1,200) 0.96-inch DMD imaging system accepts input resolutions from NTSC up to 4K (4,096 x 2,160), supporting refresh rates up to 240 Hz at WQXGA. As shown in the product gallery, the chassis carries a sealed DLP core for reliable operation in demanding environments. This is the body-only SKU with GSM and Wi-Fi; for a package with optics, compare the UDM-W22 commercial bundles that add a lens, frame, or flight case. Browse the full range of Barco projection systems in our Barco collection.

Key Features

• 22,000-Lumen Class Brightness — Rated at 21,000 center lumens, 20,000 ANSI lumens, and 22,000 ISO lumens for large screens in high ambient light.
• WUXGA 3-Chip DLP — Three 0.96-inch DMD chips at native 1,920 x 1,200 resolution deliver a wide color spectrum exceeding the Rec. 709 space.
• Laser Phosphor Light Source — Inorganic phosphor wheel with a 20,000-hour rated lifetime eliminates lamp replacement and image flicker.
• Barco Pulse Single Step Processing — Warping, scaling, and 4K UHD processing run in one step for low latency and razor-sharp images.
• GSM and Wi-Fi Connectivity — Integrated wireless and cellular connectivity feed the Barco Insights Management Suite for remote fleet monitoring.
• Widest Lens Shift — Vertical lens shift from -100% to +130% and horizontal up to +/-40%, with motorized zoom, focus, and position memory.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• DynaBlack Contrast — Full-field 2200:1 native contrast with Barco DynaBlack raising dynamic contrast to 20,000:1.
• Flexible Connectivity — Single HDBaseT, HDMI 2.0 (HDCP 2.2, HDR10), DisplayPort 1.2, and Quad 3G/12G SDI inputs.
• 360-Degree Orientation — Full rotational mounting with active and passive 3D support for flexible installation.

Typical Applications

• Large auditoriums and lecture halls
• House of worship main-screen projection
• Rental and staging productions
• Corporate all-hands and large meeting rooms
• Multi-purpose event and ballroom spaces

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the UDM-W22? This body accepts the full Barco TLD+ lens range, including 0.37 fixed, 0.73:1, 1.2:1, 1.25-1.6:1, 1.5-2.0:1, 2.0-2.8:1, 2.8-4.5:1, 4.5-7.5:1, and 7.5-11.5:1 zoom options. Select the lens based on your throw distance and screen width.

What is included in this configuration? This SKU (R9409070-BU) is the projector body with integrated GSM and Wi-Fi but no lens, supplied with a power cord and wireless/XLR wired rugged remote control. Add a TLD+ lens and any mounting hardware separately.

How does the UDM-W22 integrate into an AV system? It offers HDBaseT, HDMI 2.0, DisplayPort 1.2, and SDI inputs, RS232 and XLR/IR control, an integrated web server, Projector Toolset, and DMX 512 for show control.

Does it support edge blending for multi-projector setups? Yes. The UDM-W22 includes ScenergiX horizontal and vertical edge blending with embedded warp and blend for tiled and panoramic projection.

What are the power and cooling requirements? It runs on 200-240V at 13.5A (or 120-160V at reduced brightness) and dissipates up to 6,890 BTU/hr, with a typical noise level of 48 dB(A).

What warranty applies? Barco provides a standard 3-year warranty on the UDM-W22.
