Barco UDM-W19 20,000-Lumen WUXGA Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9409769-BU

Product Overview

The Barco UDM-W19 (R9409769-BU) is a 20,000-lumen (ISO) WUXGA 3-chip DLP laser projector built for large auditoriums, houses of worship, and rental and staging work. This configuration ships with integrated GSM and Wi-Fi connectivity but no lens, so integrators can pair it with the exact TLD+ lens their throw distance and screen size require. The compact, road-ready chassis cuts rigging and shipping overhead without compromising image quality. The inorganic laser phosphor light source delivers a long rated lifetime with constant light output across the run.

Product Description

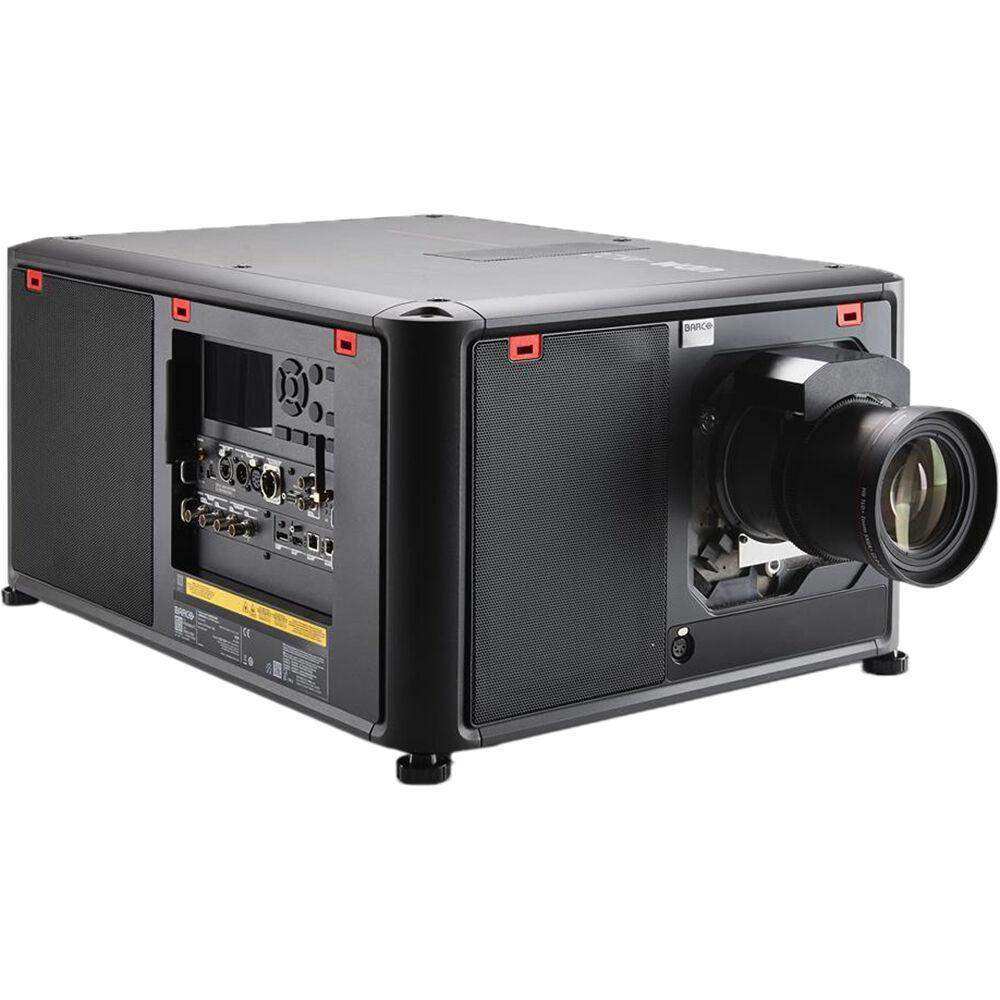

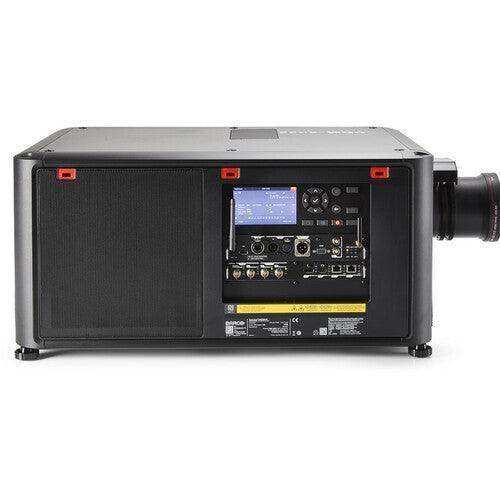

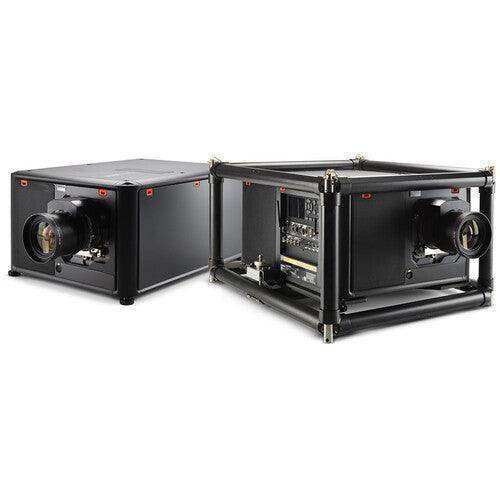

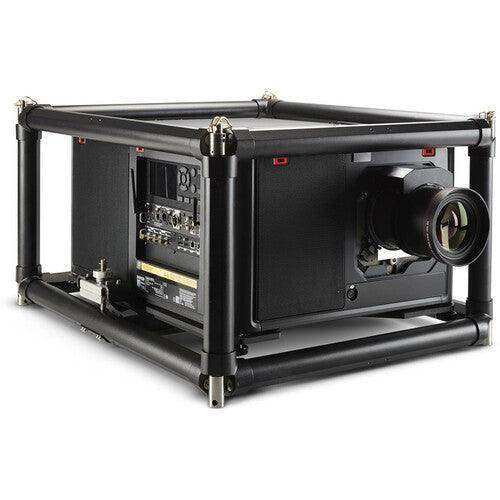

Built on the unified Barco Pulse electronics platform, the UDM-W19 uses Single Step Processing to handle warping, scaling, and 4K UHD source processing in a single pass for low latency and reduced dark time. The native WUXGA (1,920 x 1,200) 0.96-inch DMD imaging system accepts data input up to 4,096 x 2,160 and covers more than 100% of the Rec. 709 color space. As shown in the product gallery, the chassis is engineered for 360-degree orientation and continuous operation in demanding venues. This is the body-only SKU with GSM and Wi-Fi; for related higher-output models, compare the UDM-W22 and the UDM-W15. Browse the full range of Barco projection systems in our Barco collection.

Key Features

• 20,000-Lumen Class Brightness — Rated at 20,000 ISO lumens, 18,500 center lumens, and 17,800 ANSI lumens for large screens in high ambient light.
• WUXGA 3-Chip DLP — Three 0.96-inch DMD chips at native 1,920 x 1,200 resolution deliver more than 100% Rec. 709 color coverage.
• Laser Phosphor Light Source — Long rated lifetime (up to 22,000 hours) eliminates lamp replacement and image flicker, with Constant Light Output.
• Barco Pulse Single Step Processing — Warping, scaling, and 4K UHD processing run in one step for low latency and razor-sharp images.
• GSM and Wi-Fi Connectivity — Integrated wireless and cellular connectivity feed the Barco Insights Management Suite for remote fleet monitoring.
• Wide Lens Shift — Horizontal and vertical lens shift with the full Barco TLD+ lens lineup for flexible placement.
• Embedded Edge Blending — Image warping and blending with geometric correction for multi-projector arrays.
• Flexible Connectivity — HDBaseT, HDMI 2.0 (HDCP 2.2), DisplayPort 1.2, and Quad 3G/12G SDI/BarcoLink ULTRA inputs and outputs.
• HDR Support — Accepts HDR input formats for high dynamic range content.
• 360-Degree Orientation — Full rotational mounting with Full HD 3D support for flexible installation.

Typical Applications

• Large auditoriums and lecture halls
• House of worship main-screen projection
• Rental and staging productions
• Corporate all-hands and large meeting rooms
• Multi-purpose event and ballroom spaces

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the UDM-W19? This body accepts the full Barco TLD+ lens range, with throw ratios from approximately 0.39:1 fixed through 6.92-10.21:1 very long zoom. Select the lens based on your throw distance and screen width.

What is included in this configuration? This SKU (R9409769-BU) is the projector body with integrated GSM and Wi-Fi but no lens, supplied with a power cord and rugged remote control. Add a TLD+ lens and any mounting hardware separately.

How does the UDM-W19 integrate into an AV system? It offers HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad SDI inputs and outputs, RS232 control, an integrated web server, and Projector Toolset for show control and monitoring.

Does it support edge blending for multi-projector setups? Yes. The UDM-W19 includes embedded image warping and blending with geometric correction for tiled and panoramic projection.

What are the power and cooling requirements? It runs on 120-240V at up to 1,700W, with integrated laser cooling to prevent overheating during continuous operation.

What warranty applies? Barco provides a standard 3-year warranty on the UDM-W19.
