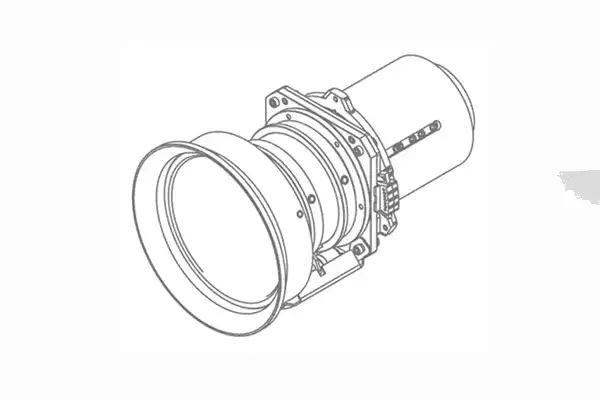

Barco GC Lens (0.84 1.02 1) - R9802181

Product Overview

The Barco GC lens 0.84-1.02:1 (R9802181) is a short throw zoom optic for the Barco G-series and G100 WUXGA projector platform. Its short-to-near-unity throw ratio fills a large screen from relatively close range, suiting rooms where the projector sits near the screen wall. The lens is motorized on both zoom and focus for precise alignment. A 1.2x zoom provides placement flexibility within the short-throw window.

Product Description

This GC short throw zoom lens is built for close-projection geometries on the G-platform, covering throw distances from 0.90 m to 10.98 m. As shown in the product gallery, it uses the standard GC mount, projects 53.12 mm out of the projector body and has a 180 mm front diameter. Working F/# runs from 2.0 wide to 2.3 tele across an 18.13-21.75 mm focal range, with lens shift of vertical plus or minus 74 and horizontal plus or minus 26. Zoom and focus are powered for accurate setup; this lens does not include lens memory.

This lens fits the Barco G-series and G100 WUXGA projectors. For an even shorter throw, see the GC lens 0.65-0.75:1; for a standard mid-throw with lens memory, compare the GC lens 1.2-1.5:1. Browse the full Barco range on our Barco collection. Creation Networks supplies genuine Barco projection optics for fixed-install and rental AV.

Key Features

• Short throw 0.84-1.02:1 — fills a large screen from close range for tight rooms.
• 1.2x motorized zoom — powered zoom across an 18.13-21.75 mm focal range.
• Motorized focus — powered focus for precise alignment.
• Lens shift — vertical plus or minus 74 and horizontal plus or minus 26 for off-axis placement.
• Working F/# 2.0-2.3 — bright optics from wide to tele.
• Short throw distance — 0.90 m to 10.98 m with a 50" to 500" focus range.
• WUXGA-optimized optics — matched to the G-series / G100 imager.
• Barco article R9802181 — genuine Barco GC optic for verified compatibility.

Typical Applications

• Fixed installs where the projector must sit close to the screen.
• Boardrooms, classrooms and meeting spaces with limited throw distance.
• House of worship stages with short projector-to-screen runs.
• Museum and exhibit displays in compact rooms.
• Large-venue rental needing a near-unity short throw zoom.

Technical Specifications

Frequently Asked Questions

Which projectors does the GC 0.84-1.02:1 lens fit? It is designed for the Barco G-series and G100 WUXGA projector platform.

Is this lens motorized or manual? Both zoom and focus are motorized.

Does it support lens memory? No, this lens does not include lens memory; if you need stored zoom and focus recall, consider the GC 0.65-0.75:1 or 1.2-1.5:1 lenses.

When should I choose this lens? Choose the 0.84-1.02:1 short throw when the projector must sit close to the screen at a near-unity throw.

Is this a genuine Barco part? Yes, this is genuine Barco article R9802181 supplied by Creation Networks.
