Barco GC Lens (0.65 - 0.75 :1) - R9802188

Product Overview

The Barco GC lens 0.65-0.75:1 (R9802188) is a short throw zoom optic for the Barco G-series and G100 WUXGA projector platform. Its short throw ratio fills a large screen from close range, which suits rooms where the projector must sit near the screen wall. The lens is fully motorized on zoom and focus and supports lens memory for both, allowing repeatable recall in multi-format installs. A 1.15x zoom gives installers placement flexibility within the short-throw window.

Product Description

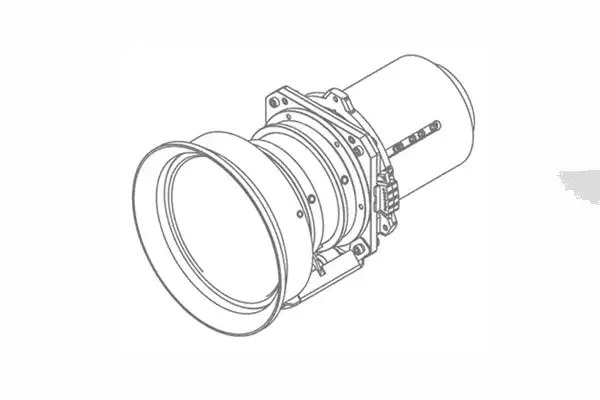

This GC short throw zoom lens is built for close-projection geometries on the G-platform, covering throw distances from 0.70 m to 8.08 m. As shown in the product gallery, it uses the standard GC mount and projects 82.94 mm out of the projector body, with a 164.4 mm front diameter. Working F/# runs from 2.2 wide to 2.6 tele across a 13.81-15.95 mm focal range, with lens shift of vertical plus or minus 102 and horizontal plus or minus 48. Because lens memory covers both zoom and focus, integrators can store and recall full lens positions for scheduled or multi-aspect content.

This lens fits the Barco G-series and G100 WUXGA projectors. For an even shorter against-the-wall option, see the Barco G lens 0.37-0.4:1 UST 90, or step up to the standard-throw GC lens 0.84-1.02:1. Browse the full Barco range on our Barco collection. Creation Networks supplies genuine Barco projection optics for fixed-install and rental AV.

Key Features

• Short throw 0.65-0.75:1 — fills a large screen from close range for tight rooms.
• 1.15x motorized zoom — powered zoom across a 13.81-15.95 mm focal range.
• Motorized focus — powered focus for precise alignment.
• Lens memory for zoom and focus — stores and recalls complete lens positions.
• Lens shift — vertical plus or minus 102 and horizontal plus or minus 48 for off-axis placement.
• Working F/# 2.2-2.6 — from wide to tele across the zoom range.
• WUXGA-optimized optics — matched to the G-series / G100 imager.
• Barco article R9802188 — genuine Barco GC optic for verified compatibility.

Typical Applications

• Fixed installs where the projector must sit close to the screen.
• Boardrooms, classrooms and meeting spaces with limited throw distance.
• House of worship stages with short projector-to-screen runs.
• Museum and exhibit displays in compact rooms.
• Rental and staging needing repeatable lens-memory recall.

Technical Specifications

Frequently Asked Questions

Which projectors does the GC 0.65-0.75:1 lens fit? It is designed for the Barco G-series and G100 WUXGA projector platform.

Is this lens motorized or manual? Both zoom and focus are motorized.

Does it support lens memory? Yes, lens memory covers both zoom and focus, so compatible projectors can store and recall full lens positions.

When should I choose this lens? Choose the 0.65-0.75:1 short throw when the projector must sit close to the screen but a full ultra short throw lens is not required.

Is this a genuine Barco part? Yes, this is genuine Barco article R9802188 supplied by Creation Networks.
