Barco R9408980-FC UDX W40 COMM+FRM+FC; Body(FLEX)+GSM+WIFI+Man Frame+FCase

Product Overview

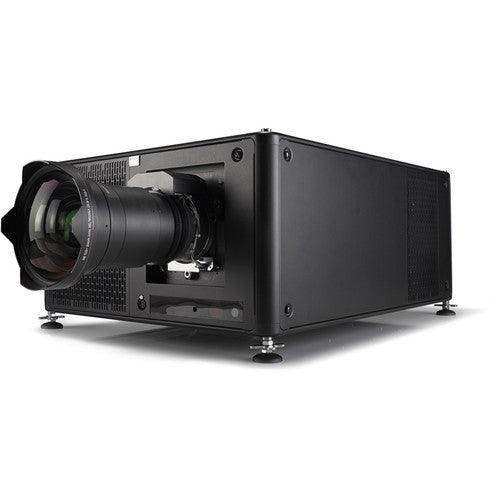

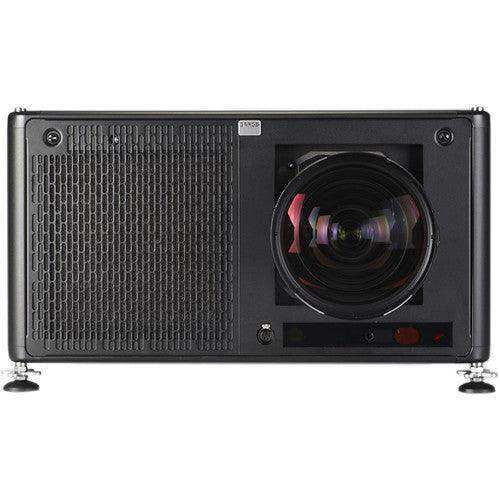

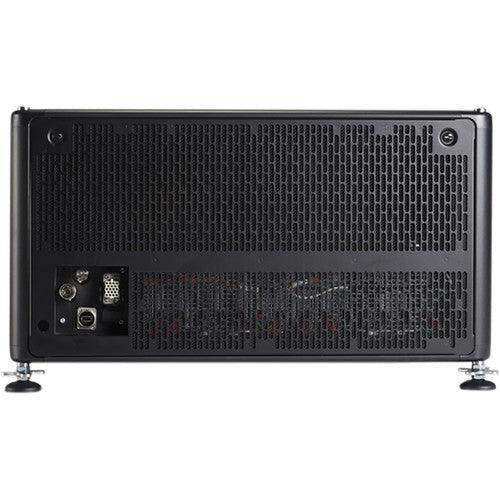

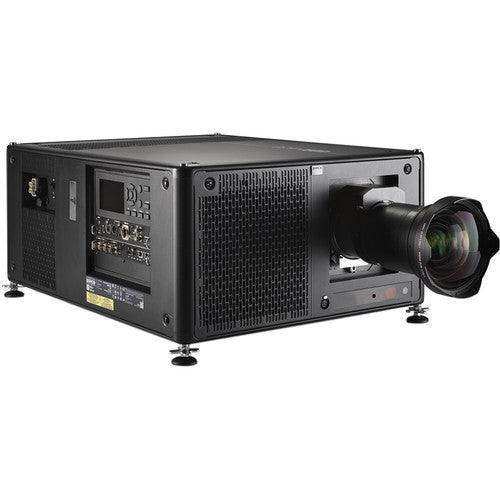

The Barco UDX-W40 COMM+FRM+FC is a 40,000-lumen WUXGA 3-chip DLP laser phosphor projector packaged with a FLEX body, GSM module, Wi-Fi, a manual frame, and a flight case for transportable large-venue work. This R9408980-FC configuration is aimed at integrators and crews who move the projector between rooms but do not need the full motorized touring rig. It delivers native 1920 x 1200 (WUXGA) resolution from a laser phosphor light source rated for 20,000 hours. A power cord and rugged remote control are included; a lens is selected separately.

Product Description

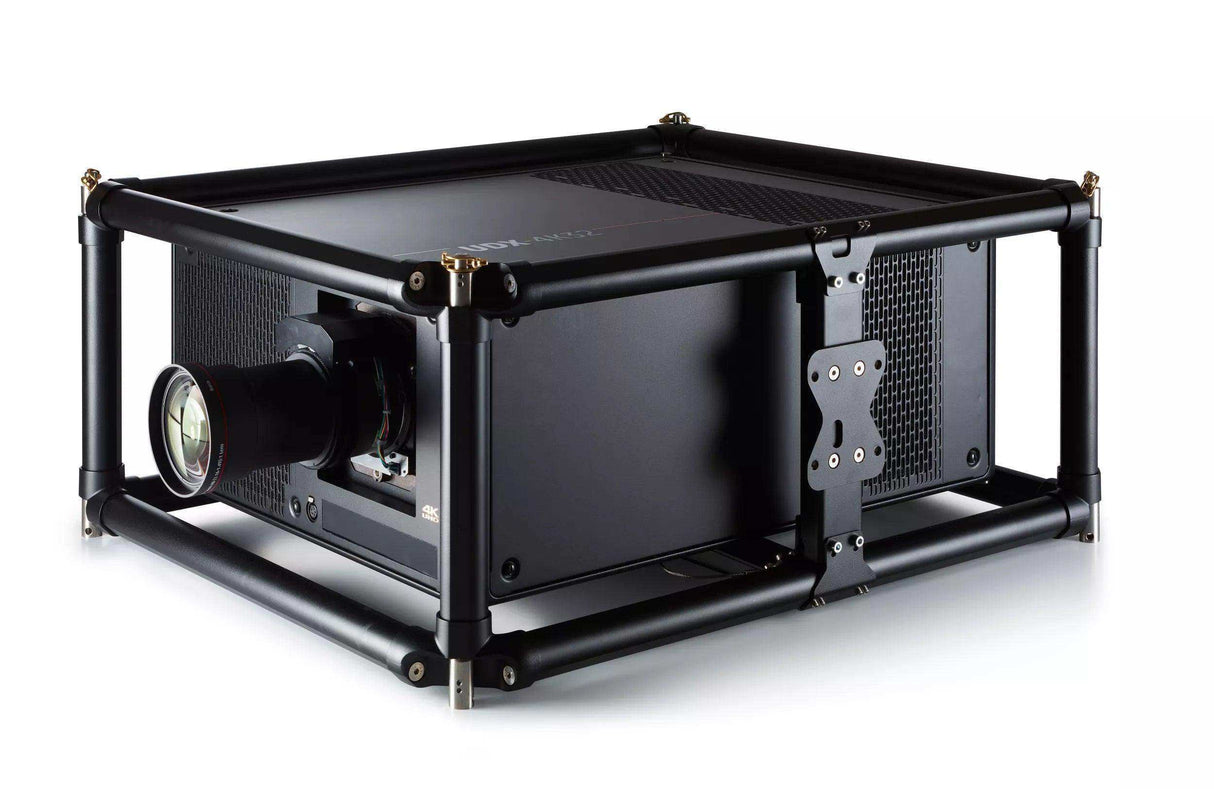

This COMM+FRM+FC build sits between a fixed installation unit and a full touring kit, adding a manual frame and protective flight case as shown in the product gallery for safe transport and stacking. The manual frame allows multi-unit alignment without the cost of motorized rigging, making it a practical choice for portable staging and multi-purpose venues. For a lighter installation package with a lens included, see the UDX-W40 COMM+LNS, or step up to the UDX-W40 Touring Kit for a motorized frame, fiber input, camera, and external shutter. For lower brightness at the same WUXGA resolution, the 32,000-lumen UDX-W32 platform is available. Browse the full Barco collection for TLD+ lenses and accessories.

Key Features

• 40,000 Center Lumens — The 3-chip DLP engine delivers 40,000 center lumens, 39,000 ANSI lumens, and 43,000 ISO lumens.
• WUXGA Resolution — Native 1920 x 1200 (16:10) imaging with support for input resolutions up to 4K (4,096 x 2,160).
• Manual Frame and Flight Case — Includes a manual stacking frame and flight case for transportable staging and protected shipping.
• Laser Phosphor Light Source — Laser B + R with inorganic phosphor wheel provides a 20,000-hour lifetime and eliminates lamp costs and flicker.
• FLEX2 Brightness and Resolution Locking — Tune and lock brightness and resolution to a specific show for repeatable results.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• Constant Light Output (CLO) — Maintains constant brightness and color over time across long operating schedules.
• Single Step Processing — Barco Pulse electronics provide sharper images and lower latency with a 600 MHz maximum pixel clock.
• 360-Degree Orientation — Sealed DLP core supports any mounting angle for flexible rigging.
• Networked Control — XLR wired, IR, RS232, DMX 512, optional Wi-Fi and GSM, plus an integrated web server and Projector Toolset.

Typical Applications

• Auditorium and performing-arts venues
• House of worship main-room imaging
• Large meeting and all-hands rooms
• Multi-purpose event spaces
• Broadcast studio projection

Technical Specifications

Frequently Asked Questions

Which lenses fit the UDX-W40? The engine accepts the Barco TLD+ lens series (sold separately) with throw ratios from 0.37 up to 7.5-11.5:1 and motorized zoom, focus, and lens shift with position memory.

What is included in the COMM+FRM+FC configuration? You receive the FLEX projector body, GSM module, Wi-Fi, a manual frame, and a flight case, plus a power cord and rugged remote; a lens is selected separately.

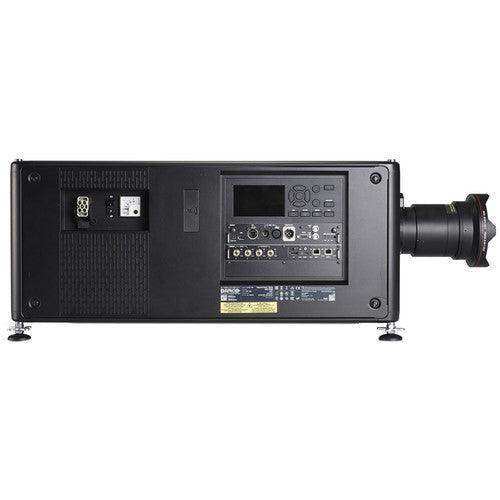

How does the UDX-W40 integrate with AV systems? It offers single HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, plus RS232, IR, DMX 512, and an integrated web server with Projector Toolset.

Does it support edge blending for multi-projector setups? Yes. ScenergiX provides horizontal and vertical edge blending with embedded warp and blend.

What are the power and cooling requirements? The projector draws up to 3750 W at 200-240 V, 20A, with integrated cooling and a maximum heat dissipation of 12,795 BTU/h.

Is a warranty included? Yes, Barco provides a 3-year warranty on the UDX-W40.
