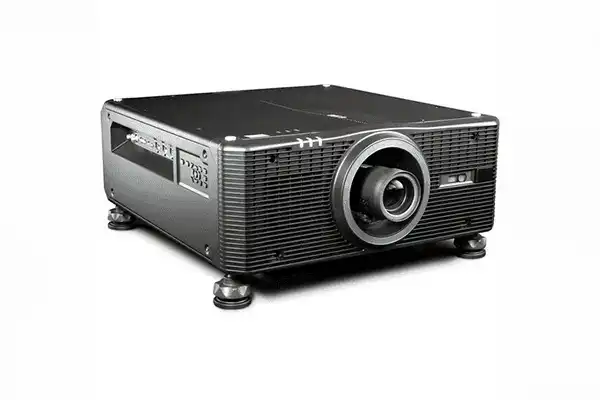

Barco G100-W19 WUXGA 19,000 Lumens Laser Phosphor (No Lens) - R9010132

Barco SKU: R9010132
No reviews
Price:
$33,200.00

Description

The Barco G100 series expands the capabilities of our single-chip products with increased brightness levels compared to previous options. This projector offers excellent image quality and impressive lumens power that works well both indoors and outdoors. Additionally, it supports all the latest input sources, including HDMI 2.0, to ensure deep color palettes and high-quality projections.

With Barco's Projector Toolset software, you can easily install and manage your projector(s) right from your computer. The user interface is intuitive and user-friendly, making the process simple and convenient. Additionally, the blending and warping capabilities of Ptoolset make these projectors ideal for multi-channel media-based attractions such as planetariums, domes, theatres, and projection mappings.

100% flexibility

The G100 is designed to provide complete operational flexibility and easy implementation in various project designs. It includes a reliable lens holder to ensure stable blending and non-moving images in multi-channel set-ups. Additionally, it features an extensive GC-lens range that supports a throw ratio ranging from 0.38 to 10.8, giving you the freedom to shoot from both long and short distances as well as experiment with 360° orientation possibilities. With this projector and its peripherals, you can achieve the best results for any creative project.

With the excellent onboard cooling the G100s can withstand a maximum ambient operating temperature of 50°C (122°F), and this all only at max. 42 dB noise levels.

100% reliability

Through its laser-phosphor light source and advanced cooling design, the G100 provides a long operating time (> 20.000 hrs) without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

With its up-to-date and future-proof design the G100 is built to meet all your requirements in terms of image quality, reliability and sustainability.

 

  • single-chip high-brightness projections
  • up-to-date input capabilities & future-proof design
  • full operational flexibility through wide lens range
Projector type Single chip DLP laser phosphor projector
Resolution 1,920 x 1,200 (WUXGA) - 0.96" DLP chip
Brightness 19,000 ISO lumen / 17,800 center lumen / 16,000 ANSI lumen
Contrast ratio 1,100:1 sequential; 5,500:1 dynamic; Extreme black: 100,000:1
Brightness uniformity 90%
Aspect ratio 16:10
Lens type GC-lenses - 0.65-0.75:1 / 0.84-1.02:1 / 1.02-1.36:1 / 1.2-1.5:1 / 1.5-2.0:1 / 2.0-4.0:1 / 4.0-7.2:1 / 7.2-10.8:1
Optical lens shift Vertical up to 120%, depending on lens
Horizontal up to 50%, depending on lens
Motorized zoom and focus
Motorized lens shift
Color correction Yes
CLO (constant light output) Yes
Light source Laser phosphor
Light source lifetime Up to 20,000hrs
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active and passive stereoscopic 3D
Image processing Embedded warp & blend. Also possible via Ptoolset
Keystone correction Yes
Inputs 2x HDMI 2.0b / DisplayPort 1.2a / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin)
Input resolutions

Up to 4K UHD @60Hz

Refresh rates: 24Hz to 60Hz for WUXGA and 4KUHD (4096 x 2160 / 3860 x 2160)

4K input signals will be scaled to the projector’s output resolution
Software tools Projector Toolset*
Control IR, RS232, RJ45, USB type A
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1000W nominal, 1150W maximum (@220V)
BTU per hour 3415 BTU/h nominal, 3925 BTU/h maximum (@220V)
Standby power less than 0.5W
Noise level (typical at 25°C/77°F) 36dB(A) - 40dB(A) depending on the used mode
Operating temperature 0 - 50 °C (sea level)
Storage temperature -10 to 60 °C
Operating humidity 10 - 85% RH, non-condensing
Storage humidity 5 - 90% RH, non-condensing
Dimensions (WxLxH) without feet: 650 x 710 x 251 mm / 25.6 x 27.9 x 9.9 in
Weight without lens: 50.0 kg / 110.2 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
Warranty Limited 3 years parts and labor
*Note Integration in Ptoolset in Q1/2022
