Barco Imagepro 4K Switcher Chassis (No I/O Cards) - R9009231B

Product Overview

The Barco ImagePRO-4K is a 4K60p scaler, converter and switcher designed for the way live events, rental staging and broadcast shows are produced today. It scales, converts and switches the highest-quality signals (4K, 4:4:4, 60p, 10-bit) at low latency, addressing signal issues before they reach the screen. This SKU (R9009231B) is the switcher chassis supplied without I/O cards, so Tri-Combo or other supported I/O cards must be added separately to configure inputs and outputs. Built for life on the road, the ImagePRO-4K performs reliably both at the gig and in the shop.

Product Description

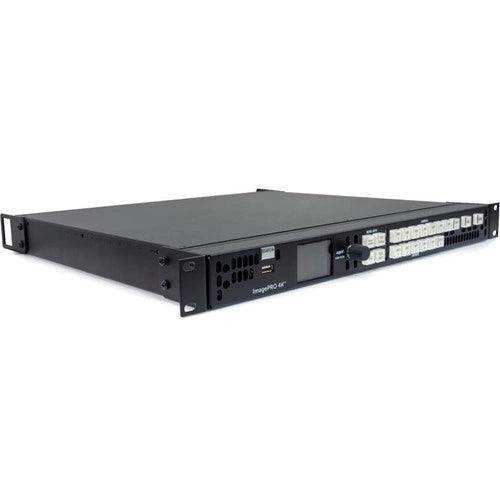

The ImagePRO line has been a backbone of live event production since 2004, and the ImagePRO-4K extends that role into 4K workflows. As shown in the product image, the front panel provides a live-source view of the incoming signal so operators can confirm content before it goes to program. When fitted with a Tri-Combo input card, each input supports HDMI 2.0, DisplayPort 1.2 and 12G/3G SDI; a matching Tri-Combo output card mirrors those formats and adds output image rotation. The unit handles LED wall setups with a guided menu, slicing single inputs across multiple connectors or driving multiple walls from multiple sources, with 12-bit internal processing for pre-scaling and cropping to a wall's actual resolution. Note that this chassis ships without I/O cards, so the appropriate Event Master Tri-Combo cards should be ordered to suit the workflow. The ImagePRO-4K is controlled from its front panel, Event Master software, controllers or WebUI; explore related processors and controllers in our Barco collection, including the Event Master EX expansion unit and the Event Master EC-30 controller.

Key Features

• 4K60p Processing — Scales, converts and switches signals up to 4K 60p with 4:4:4 sampling and 10-bit color.
• Low Latency — One progressive frame of latency, low for a scaler in this class.
• Modern I/O (Card-Dependent) — Tri-Combo cards add HDMI 2.0, DisplayPort 1.2 and 12G/3G SDI, with output image rotation; cards not included with this SKU.
• LED Wall Tools — Guided LED setup menu slices inputs across connectors or drives multiple walls, with 12-bit pre-scaling and cropping.
• Scaled Aux Outputs — Up to 6x HD or 2x 4K60p single-scaler outputs with independent scaling, sizing and color correction.
• Still Store — Stores up to 100 HD or 25 UHD stills depending on imported file size.
• Front-Panel Confidence View — Live-source preview on the front panel for reliable show execution.
• Road-Ready Build — Assembled and tested for demanding touring and rental use in a 1RU chassis.
• Flexible Control — Front-panel menu and mappable buttons, Event Master software (PC/Mac), controllers and WebUI.

Typical Applications

• Live events and corporate general sessions requiring high-quality scaling and switching
• Rental and staging companies needing a road-ready 4K processor
• Broadcast and production environments converting between HDMI, DisplayPort and SDI
• LED video wall feeds requiring per-connector mapping and cropping
• Command/control and multi-screen presentation setups

Technical Specifications

Frequently Asked Questions

Does this chassis include I/O cards? No. The R9009231B is the switcher chassis supplied without I/O cards. Tri-Combo input and output cards (or other supported cards) must be ordered separately.

What signal quality does the ImagePRO-4K handle? It scales, converts and switches signals up to 4K 60p with 4:4:4 sampling and 10-bit color, using 12-bit internal processing.

What is the latency? Latency is one progressive frame, low for a scaler in this class.

Can it drive LED walls? Yes. A guided LED setup menu lets you slice single inputs across connectors or drive multiple walls, with pre-scaling and cropping to the wall's actual resolution.

What connectors does a Tri-Combo card provide? Each Tri-Combo card offers HDMI 2.0, DisplayPort 1.2 and 12G/3G SDI, with output image rotation on the output card.

How is it controlled? Through the front-panel menu and mappable buttons, Event Master screen management software for PC or Mac, Event Master controllers, or the WebUI.
