Barco EX Video Processor Event Master expansion unit - R9004776B

Product Overview

The Barco EX is an Event Master expansion unit that adds input and output capacity to E2 and S3-4K processors for live events, rental staging and large multi-screen productions. It is an affordable 4K60p scaler with the same processing power as four ImagePROs, packaged in a compact 1RU chassis. By linking it to a master Event Master processor, integrators expand the scaling and switching power of the whole system without adding another full-sized processing chassis. It also extends I/O for applications up to 100 meters away while simplifying on-site cabling.

Product Description

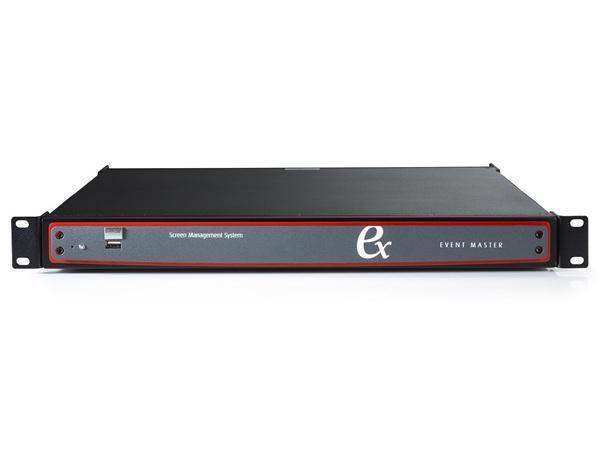

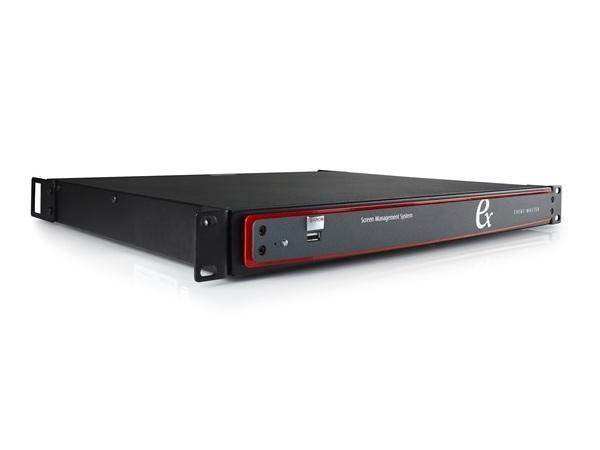

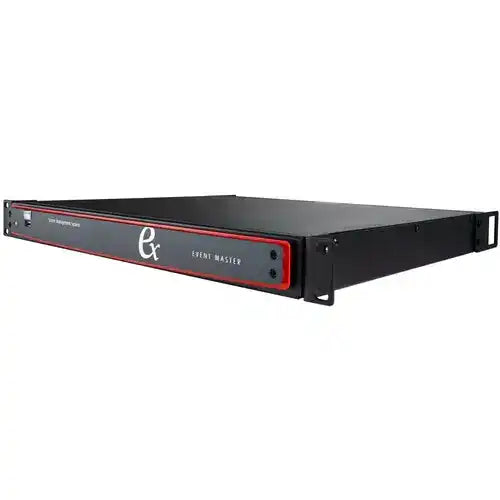

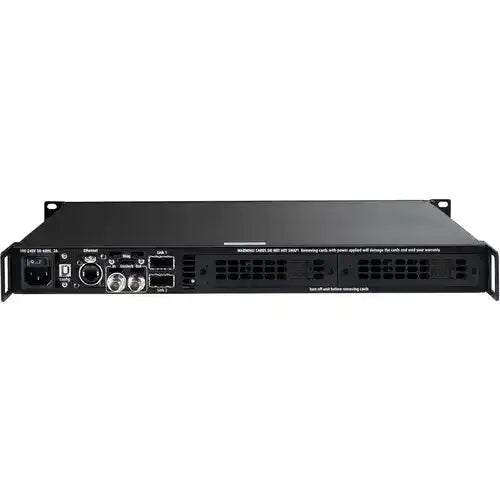

The EX (R9004776B) carries two card slots that can each be configured as input or output, supporting up to eight inputs or up to eight outputs using any of the Event Master modular I/O cards. As shown in the product gallery, a single EX can provide a 4x4 scaling matrix of HD sources, and two units can be linked to create an 8x8 matrix for standalone operation. When linked to a master processor, an E2 supports up to eight EX chassis (32 inputs and 32 outputs of HD) and an S3-4K supports up to four (16 inputs and 16 outputs). The EX shares its modular cards and software with the rest of the Event Master family, simplifying field service and configuration, and it can replace up to eight fiber extenders with a single cable and one chassis. Scaled aux outputs are user-definable up to 8x 2048x1200@60 or 2x 4K@60. The EX is driven from the same Event Master screen management software and controllers; pair it with an Event Master EC-50 controller or EC-30 controller, and see related processors in our Barco collection.

Key Features

• 4K60p Scaling Power — Affordable scaler with the same processing power as four ImagePROs in a single chassis.
• Flexible I/O Slots — Two card slots each configurable as input or output, supporting up to eight inputs or eight outputs with any Event Master card.
• System Expansion — Adds input and output capacity to E2 (up to 8 EX chassis) and S3-4K (up to 4 EX chassis) processors over the link connection.
• Extended Reach — Distributes I/O for applications up to 100 meters away, replacing up to eight fiber extenders with one cable.
• Standalone Linking — Two EX chassis can be linked for an 8x8 standalone HD scaling matrix.
• Scaled Aux Outputs — User-definable up to 8x 2048x1200@60 or 2x 4K@60.
• Still Store — Stores up to 100 HD or 25 UHD stills depending on imported file size.
• Shared Software and Cards — Uses Event Master screen management software, controllers and WebUI, with field-serviceable I/O cards.
• Compact, Quiet Chassis — 1RU frame at 37 dBA nominal with software-managed fan speed.

Typical Applications

• Live events and corporate general sessions needing added I/O capacity
• Rental and staging companies scaling Event Master systems up or down per job
• Broadcast and production environments distributing I/O across long cable runs
• Command/control and video wall feeds requiring tiled and blended widescreen output
• Multi-screen and projection-blending installations driven by E2 or S3-4K

Technical Specifications

Frequently Asked Questions

What does the EX do? It is an Event Master expansion unit that adds input and output scaling/switching capacity to E2 and S3-4K processors, and can also operate as a standalone 4K60p scaler.

How many inputs and outputs does it provide? Its two configurable card slots support up to eight inputs or eight outputs; a single unit offers a 4x4 HD matrix and two linked units offer 8x8.

How many EX units can link to a master processor? An E2 supports up to eight EX chassis (32 in / 32 out HD); an S3-4K supports up to four (16 in / 16 out HD).

Does it simplify cabling? Yes. It can replace up to eight fiber extenders with a single cable and one chassis, extending I/O up to 100 meters.

Are the I/O cards hot-swappable? The I/O cards are field-serviceable but not hot-swappable.

What software controls the EX? It uses the same Event Master screen management software, controllers and WebUI as the rest of the Event Master family.
