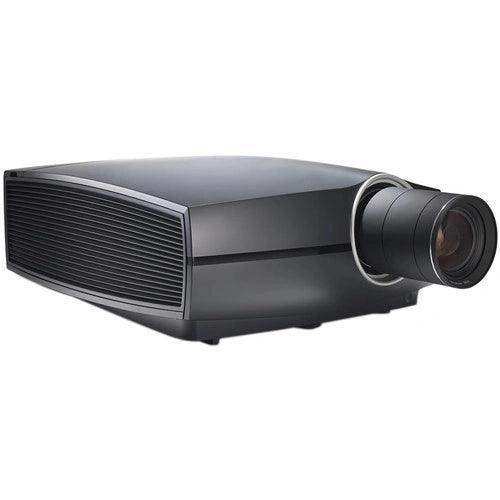

Barco F80-Q12 12,000-Lumen WQXGA Laser Projector (Body only) - R90059471

Barco SKU: R90059471
No reviews
Price:
$24,800.00

Description

Spec Sheet

The Barco F80-Q12 projector is a powerful option for those in need of a high-quality display. With a WQXGA resolution and a brightness of up to 12,000 lumens, this single-chip DLP projector produces clear and vivid images. It also boasts a CLO function, ensuring that the brightness and color remain consistent over a long period of time. The projector has a lifespan of up to 20,000 hours in normal mode. It is easy to control with IR, RS-232, and RJ45 controls and features Single Step Processing (SSP) technology for improved image sharpness and reduced latency. The package comes with a power cord and remote control; however, lenses are sold separately. The projector is compatible with Barco's GLD-type lenses, as well as FLD+ and FLDX lenses (with a lens adapter).
  • Delivers images with highly saturated colors that allow for accurate color reproduction
  • Laser-phosphor light source and advanced cooling design provide a long operating time
  • Allows for more flexibility in projector location and orientation as it can run in any orientation

Barco's F80 projectors offer exceptional image quality and utilize a laser phosphor light source, resulting in both time and cost savings. These projectors are ideal for fixed installation in a variety of settings, including museums, board rooms, and auditoriums. Additionally, their 3D capability makes them a great fit for theme park dark rides and other interactive experiences.

Superior image quality

The F80-Q12 delivers stunning images with highly saturated colors that allow for accurate color reproduction at all times. What's more it features the powerful Barco Pulse processing that allows for sharper images and less latency thanks to its Single Step Processing (SSP).

Unprecedented business value

With this projector you can increase your uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

The F80-Q12 gives you more flexibility in projector location and orientation as it can run in any orientation. Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-Q12 accommodates almost any projector configuration.



 


  • Horizontal and vertical edge blending
  • P7 RealColor color correction
  • Sealed DLP core
  • 360° orientation
  • Laser dimming
  • Embedded warp and blend
  • Integrated web browser
  • Active and passive stereoscopic 3D
  • Keystone correction
  • Projector toolset
  • 24/7 operation
    Projector type Single-chip DLP laser phosphor projector
    Technology 0.67" DMDTM x1
    Resolution 2,716 x 1,600 (WQXGA+ native)
    Brightness

    11,300 center lumens*

    10,700 ANSI lumens

    12,000 ISO lumens
    Contrast ratio 1,200:1 sequential, 10,000:1 dynamic*
    Brightness uniformity > 90%
    Aspect ratio 17:10 native
    Blend horizontal and vertical edge blending
    Lens type GLD / FLD+ (lens adapter needed) / FLDX (lens adapter needed)
    Lens range GLD-range: 0.8 - 1.0 ; 1.0 - 1.35 ; 1.35 - 2.0 ; 2.0 - 3.0
    Screen size max 20m
    Optical lens shift Vertical up to 125%, depending on lens
    Horizontal up to 50%, depending on lens
    Motorized zoom and focus (with lens memory on GLD and FLDX lenses)
    Motorized lens shift (with position memory on all lenses)
    Color space Rec. 709
    Color correction P7 RealColor™
    Light source Laser phosphor
    Light source lifetime > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode
    Sealed DLP™ core Yes - standard
    Optical dowser laser dimming
    Orientation 360° rotation, no restrictions
    DMX 512 Standard
    Image processing Embedded warp & blend engine direct adjust OSD + Ptoolset
    Web browser integrated
    CLO (constant light output) Yes
    3D

    Active stereoscopic 3D / Passive stereo compatible

    max WQXGA @120Hz
    Keystone correction Yes
    Inputs HDMI2.0 (HDCP2.2, HDR10) / 2x DP 1.2 / 12G-SDI /2x dual link DVI-D / HDBaseT / RJ 45 Ethernet / DMX in-out / RS232 in / 2x USB / 12V out
    Input resolutions

    Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz

    refresh rates:

    24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
    Software tools Projector Toolset
    Control IR, RS232, RJ45, XLR wired
    24/7 operation Yes**
    Network connection 10/100 Ethernet, RJ45
    Power requirements 100-240V / 50-60Hz
    Power consumption 1050 W nominal, 1200 W maximum
    Standby power < 0.5W
    Noise level (typical at 25°C/77°F) 35 dB(A) when used in silent mode / 39 dB(A) in normal mode
    Operational ambient temperature 0°-35°C / 32°-95°F
    Storage temperature -20 to 60 °C
    operation humidity no condens 0%-80%
    Storage humidity 20 - 90% RH (non-condensed)
    Dissipation BTU max 4100 BTU/h
    Dimensions (WxLxH) 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in
    Weight 26.8 kg / 59.1 lbs (without lens)
    Shipping dimensions (WxLxH) 583 x 784 x 444 mm / 23.0 x 30.9 x 17.5 inch
    Shipping weight 38.5 kg / 81.6 lbs
    Standard accessories Power cord, wireless/XLR wired rugged remote control
    Certifications

    Compliant with UL60950-1 and EN60950-1

    complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS
    Warranty Limited 3 years on parts and labor(***)
    Extendable up to 5 years.
