Barco F80-4K12 10,400 ANSI-Lumen Pixel Shift 4K UHD Laser DLP Projector (Body only) - R90059521

Product Overview

The Barco F80-4K12 (R90059521) is a 10,400 ANSI-lumen single-chip laser DLP projector body built for permanent installations and rental staging. Pixel-shift technology upscales the native 2716 x 1600 resolution to 4K UHD 3840 x 2160, delivering crisp, detailed imagery across museums, boardrooms, auditoriums, theme-park rides, and interactive experiences. A 10,000:1 dynamic contrast ratio keeps the image effective in most lighting conditions. This listing is the projector body only, with lenses available separately.

Product Description

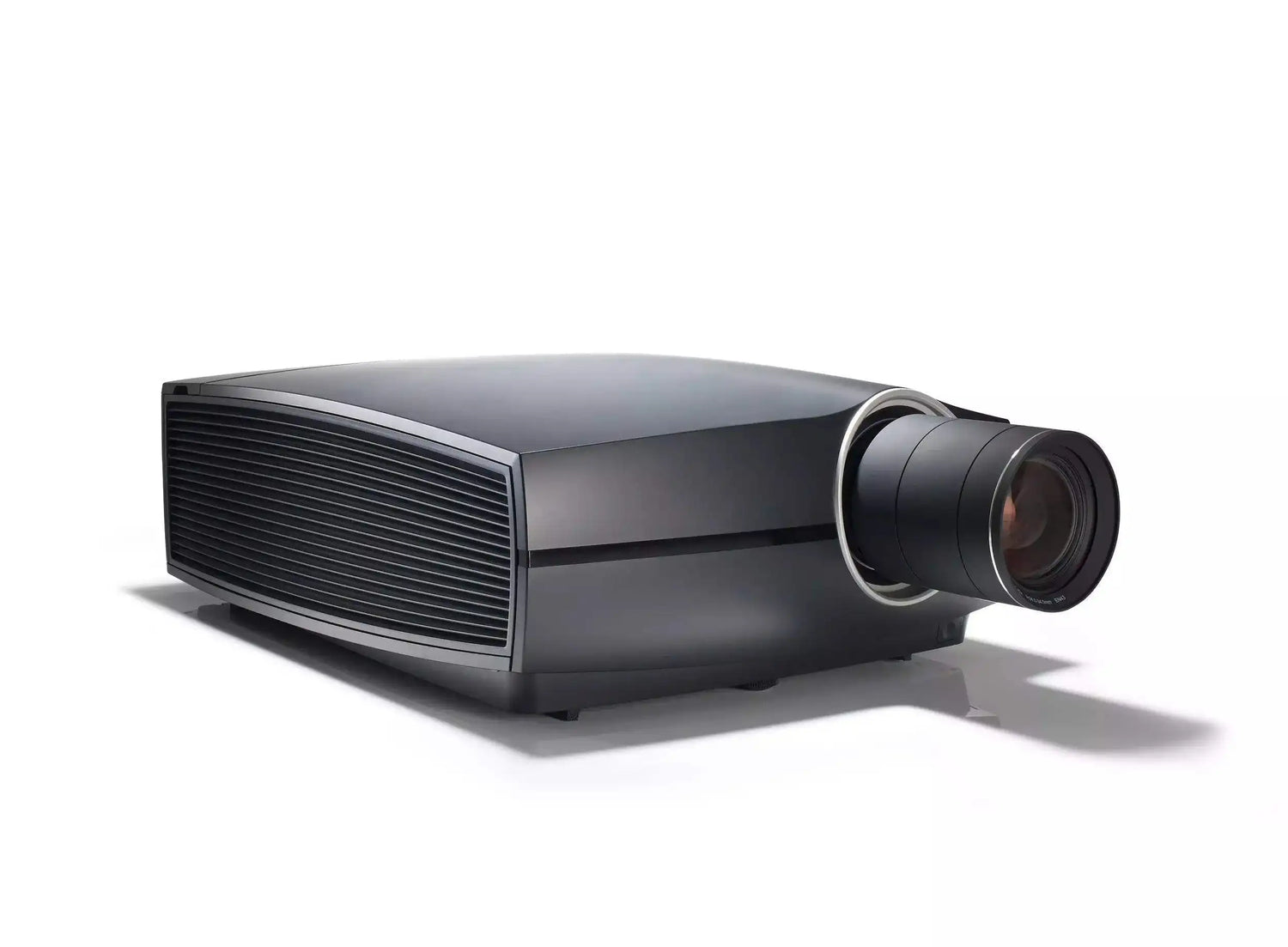

The F80-4K12 uses the DMD mirrors to shift at the microsecond level, combining image processing to project multiple pixels per frame and produce a 4K UHD image from a non-UHD chip. Its output meets the Rec.709 color space for saturated color, and Barco Pulse Single Step Processing keeps images sharp with low latency. As shown in the product image and the video below, the laser-phosphor light source and cooling design enable long, lamp-free operation rated for 24/7 use, with quiet running suited to fixed installations.

Because this is a body-only configuration, you can specify GLD, FLD+ (with adapter), or FLDX (with adapter) lenses to suit the throw distance and screen size, up to roughly 65.6 ft. For higher-output large-venue rooms, step up to the Barco UDM-4K15, or compare the WQXGA Barco F80-Q12. Browse the full lineup in our Barco projector collection.

Key Features

• 10,400 ANSI Lumens — High brightness for fixed installations in lit rooms.
• Pixel-Shift 4K UHD — Upscales native 2716 x 1600 to 4K UHD 3840 x 2160 using microsecond DMD shifting.
• Laser Phosphor Light Source — Long lamp-free operating life rated for 24/7 use with reduced maintenance.
• 10,000:1 Dynamic Contrast — Plus 1200:1 sequential contrast and a laser dimming optical dowser for deep blacks.
• Rec.709 Color with P7 RealColor — Saturated, accurate color with P7 RealColor correction.
• Single Step Processing — Barco Pulse SSP for sharper images and lower latency.
• Flexible Lens Options — Compatible with GLD, FLD+ (with adapter), and FLDX (with adapter) lenses with motorized zoom, focus, and lens shift with memory.
• 360 Degree Orientation — Runs in nearly any orientation with no restrictions.
• Edge Blending and Warp — Horizontal and vertical edge blending with an embedded warp and blend engine.
• Extensive Connectivity — HDBaseT, HDMI, DisplayPort, DVI-I, and SDI inputs with HDR10 support and DMX 512, RS-232, and TCP-IP control.

Typical Applications

• Museums and visitor attractions
• Theme-park rides and interactive experiences
• Auditoriums and large meeting rooms
• Boardrooms and corporate spaces
• Rental and staging productions

Technical Specifications

Frequently Asked Questions

How does the F80-4K12 achieve 4K UHD? Pixel-shift technology shifts the DMD mirrors at the microsecond level and combines image processing to project multiple pixels per frame, producing a 4K UHD 3840 x 2160 image from the native 2716 x 1600 chip.

What is included in this configuration? Part R90059521 is the projector body only; lenses are available separately. Contact us to specify a compatible lens.

Which lenses are compatible? The F80-4K12 accepts GLD lenses, plus FLD+ and FLDX lenses with a lens adapter, all with motorized zoom, focus, and lens shift with position memory.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI, DisplayPort, DVI-I, and SDI with HDR10, controlled over DMX 512, RS-232, TCP-IP, and the included remote.

Can it be mounted in any orientation? Yes. The F80-4K12 supports 360 degree rotation with no restrictions for ceiling, tilted, and rigged installation.

What warranty is included? Barco projectors are backed by manufacturer warranty; contact Creation Networks for current warranty terms and extended service options.
