Barco F70-4K6; including smear reduction and extended dimming; Brightness: 5000; Resolution: 4K UHD; Illumination: Laser phosphor; Cabinet Color: Black; Stereo - R9023463

Product Overview

The Barco F70-4K6 (R9023463) is a single-chip 4K UHD laser-phosphor projector built for the simulation and ProAV markets that demand robustness, long lifetime, and laser-sharp image quality. This 5,000-lumen-class configuration features a black cabinet, smear reduction and extended dimming, and active stereoscopic 3D. Native WQXGA 2560 x 1600 resolution scales up to 4K UHD through Barco Pulse Single Step Processing, and a laser-phosphor light source rated up to 60,000 hours supports continuous 24/7 operation in demanding environments.

Product Description

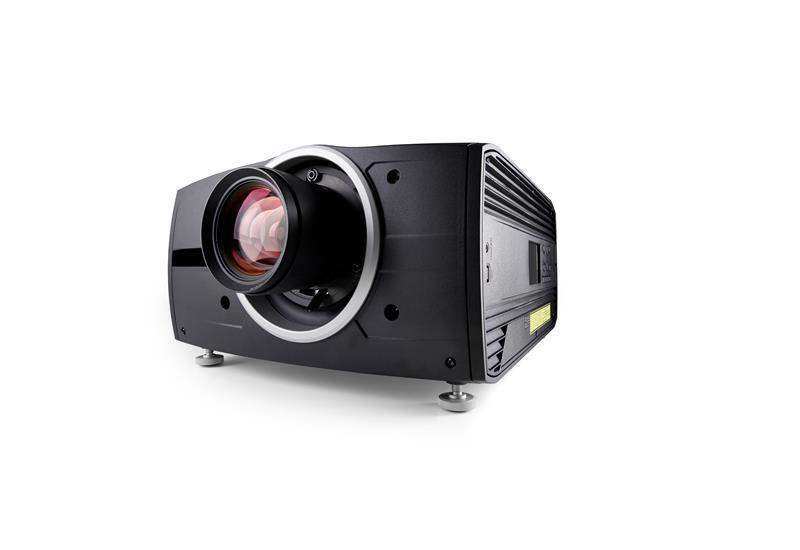

Fitted with a protective metal chassis, the F70-4K6 withstands the rapid and sudden movements of a motion platform, which makes it a strong choice for theme-park rides and themed attractions as well as fixed ProAV installations. It runs in any orientation with 360 degree rotation and uses Barco's FLD and FLD+ lenses, shared across the F-series so lenses can be reused. As shown in the product image, the compact cabinet is engineered for reliability. Constant Light Output holds brightness and color steady over the projector's life.

This R9023463 model sits alongside the otherwise-similar F70-4K6 R9023472. For NVG night-training channels, pair it with the IR-equipped Barco FS70-4K4, or step down to the 4,000-lumen Barco F70-4K4. Browse the full range in our Barco projector collection.

Key Features

• 5,000-Lumen Class Brightness — One of the brightest single-chip DLP 4K UHD projectors in its class, rated 5,400 typical ANSI lumens.
• 4K UHD via Single Step Processing — Barco Pulse SSP achieves 4K UHD in one step for a sharper image and lower latency.
• Laser Phosphor Light Source — Rated up to 60,000 hours with Constant Light Output for stable brightness and color.
• Built for Motion Platforms — Protective metal chassis withstands the rapid, sudden movements of simulators and theme-park rides.
• 360 Degree Orientation — Runs in any orientation with no restrictions for flexible installation.
• Shared FLD-Series Lenses — Uses the same FLD and FLD+ lenses as other F-series projectors, with motorized zoom, focus, and lens shift with position memory.
• Active Stereoscopic 3D — Supports active stereoscopic 3D content.
• P7 RealColor — Color correction with an embedded warp and blend engine for multi-projector setups.
• Extensive Inputs — HD-SDI, 2x DisplayPort 1.2, 2x dual-link DVI-I, HDBaseT, HDMI 2.0 (HDCP 2.2, HDR10), Ethernet, DMX, RS232, and USB.
• Sealed DLP Core — Protects the optical engine for reliable operation in tough environments.

Typical Applications

• Flight and vehicle simulation and training
• Theme parks and themed entertainment
• Museums and visitor attractions
• ProAV and large meeting rooms
• Auditoriums and visualization environments

Technical Specifications

Frequently Asked Questions

What does this F70-4K6 R9023463 configuration include? It is the 5,000-lumen-class 4K UHD laser-phosphor model with a black cabinet, smear reduction, extended dimming, and active stereoscopic 3D, shipped with a power cord and wireless remote.

Which lenses are compatible? The F70-4K6 uses Barco's FLD and FLD+ lenses, shared across the F-series so lenses can be reused; contact us to match a lens to your throw distance.

How does it integrate into an AV system? Inputs include HD-SDI, dual DisplayPort 1.2, dual-link DVI-I, HDBaseT, and HDMI 2.0 with HDR10, controlled over IR, RS232, and RJ45 with the Projector Toolset.

Can it be mounted in any orientation? Yes. The F70-4K6 supports 360 degree rotation with no restrictions, suitable for ceiling, motion-platform, and tilted installation.

What are the power requirements? It runs on 100-240V, 50-60Hz, consuming 743 W nominal and up to 1100 W maximum.

What warranty is included? The F70-4K6 carries a 5-year limited parts-and-labor warranty that is extendable; contact Creation Networks for current terms.
