Barco R9023472 F70-4K6; including smear reduction and extended dimming; Brightness: 5000; Resolution: 4K UHD; Illumination: Laser phosphor; Cabinet Color: Black; Stereo 3D: SW upgrade - R9023472

Product Overview

The Barco F70-4K6 (R9023472) is a single-chip 4K UHD laser-phosphor projector built for the simulation and ProAV markets where robustness, long lifetime, and laser-sharp image quality are required. This configuration is the 5,000-lumen-class model and includes Motion Smear Reduction and Extended Dimming, with an active stereoscopic 3D software upgrade. Native WQXGA 2560 x 1600 resolution scales up to 4K UHD through Barco Pulse Single Step Processing. A laser-phosphor light source rated up to 60,000 hours makes it suitable for continuous 24/7 duty.

Product Description

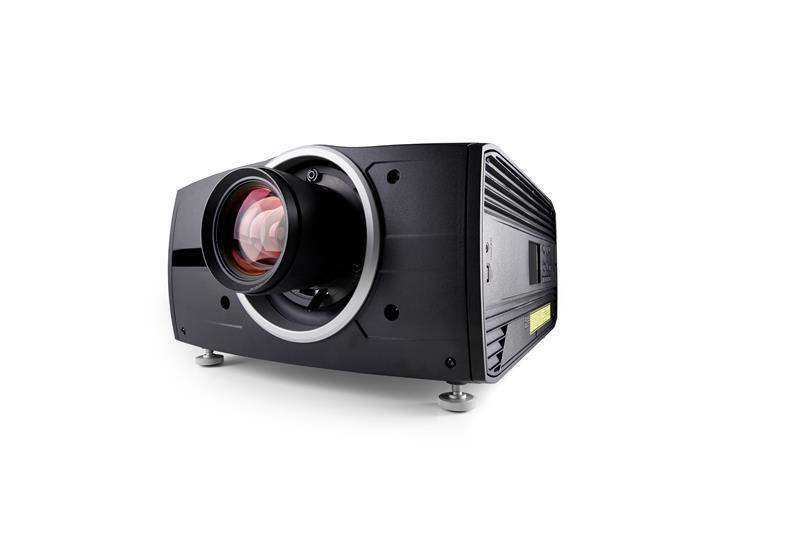

Fitted with a protective metal chassis, the F70-4K6 withstands the rapid and sudden movements of a motion platform, making it well suited to simulators and themed-entertainment rides as well as fixed ProAV installations. It runs in any orientation with 360 degree rotation and uses Barco's shared FLD-series lenses, so integrators can reuse lenses across the F-series fleet. As the product image shows, the compact cabinet is engineered for demanding environments. Constant Light Output keeps brightness and color stable over the projector's lifetime.

This R9023472 model adds Motion Smear Reduction Processing and extended dimming, refinements aimed at fast-moving simulation content. For NVG night-training channels, pair it with the IR-equipped Barco FS70-4K4; for a 4,000-lumen option there is the Barco F70-4K4. Browse the complete range in our Barco projector collection.

Key Features

• 5,000-Lumen Class Brightness — One of the brightest single-chip DLP 4K UHD projectors in its class, rated 5,400 typical ANSI lumens.
• 4K UHD via Single Step Processing — Barco Pulse SSP achieves 4K UHD in one step for a sharper image and lower latency.
• Motion Smear Reduction and Extended Dimming — This R9023472 configuration adds SRP and extended dimming for fast-moving simulation content.
• Laser Phosphor Light Source — Rated up to 60,000 hours with Constant Light Output for stable brightness and color.
• 360 Degree Orientation — Runs in any orientation with no restrictions for flexible installation.
• Shared FLD-Series Lenses — Uses the same FLD lenses as other F-series projectors with motorized zoom, focus, and lens shift with position memory.
• Active Stereoscopic 3D — Includes the stereoscopic 3D software upgrade.
• P7 RealColor — Color correction with an embedded warp and blend engine for multi-projector setups.
• Extensive Inputs — HD-SDI, 2x DisplayPort 1.2, 2x dual-link DVI-I, HDBaseT, HDMI 2.0 (HDCP 2.2, HDR10), Ethernet, DMX, RS232, and USB.
• Sealed DLP Core — Protects the optical engine for reliable operation in tough environments.

Typical Applications

• Flight and vehicle simulation and training
• Theme parks and themed entertainment
• Museums and visitor attractions
• ProAV and large meeting rooms
• Auditoriums and visualization environments

Technical Specifications

Frequently Asked Questions

What does this F70-4K6 R9023472 configuration include? It is the 4K UHD laser-phosphor model with Motion Smear Reduction and Extended Dimming, a black cabinet, and an active stereoscopic 3D software upgrade, shipped with a power cord and wireless remote.

Which lenses are compatible? The F70-4K6 uses Barco's FLD-series lenses, which are shared across the F-series so lenses can be reused; contact us to match a lens to your throw distance.

How does it integrate into an AV system? Inputs include HD-SDI, dual DisplayPort 1.2, dual-link DVI-I, HDBaseT, and HDMI 2.0 with HDR10, controlled over IR, RS232, and RJ45 with the Projector Toolset.

Can it be mounted in any orientation? Yes. The F70-4K6 supports 360 degree rotation with no restrictions, suitable for ceiling, motion-platform, and tilted installation.

What are the power requirements? It runs on 100-240V, 50-60Hz, consuming 743 W nominal and up to 1100 W maximum.

What warranty is included? The F70-4K6 carries a 5-year limited parts-and-labor warranty that is extendable; contact Creation Networks for current terms.
