Barco Clickshare Bar Core US With 1 Buttons (Black) - R9861632USB1

Product Overview

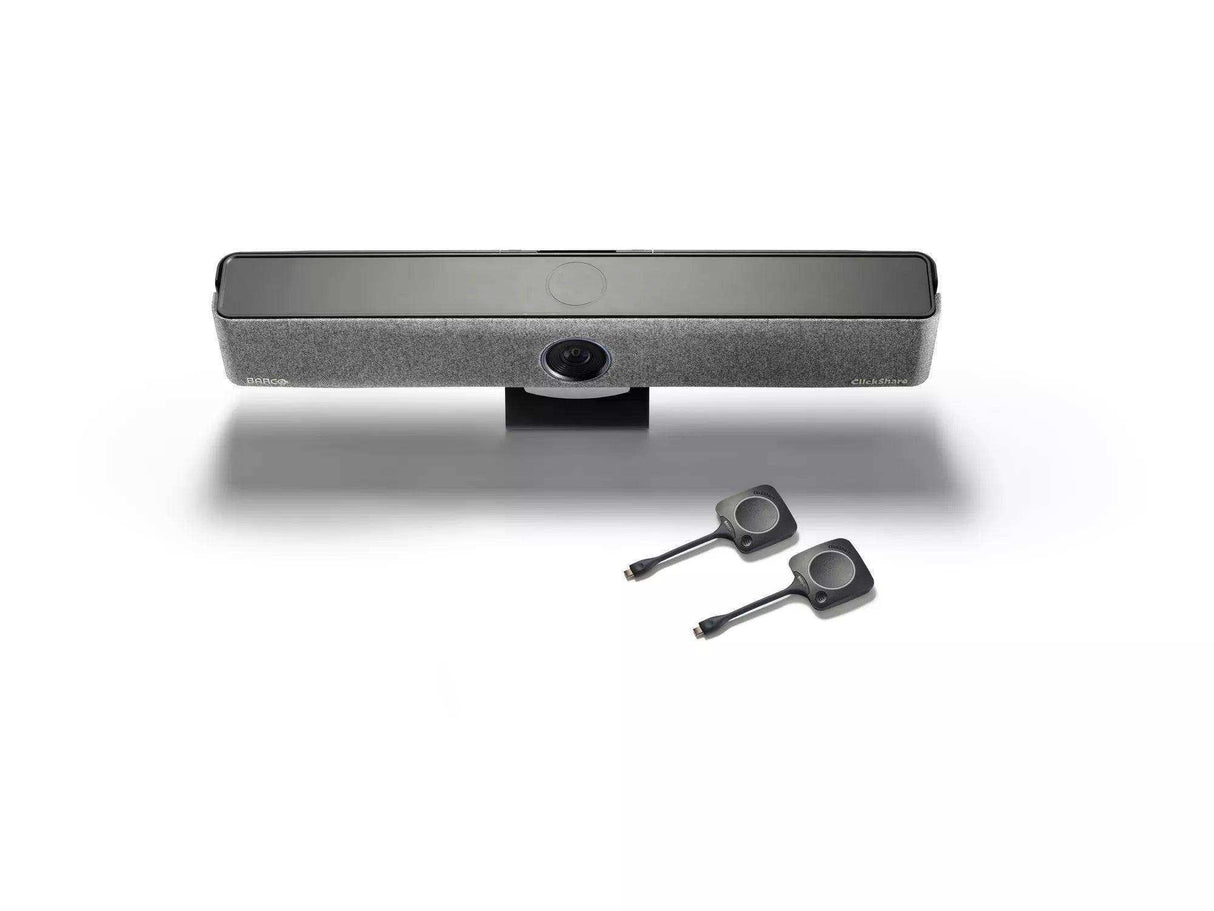

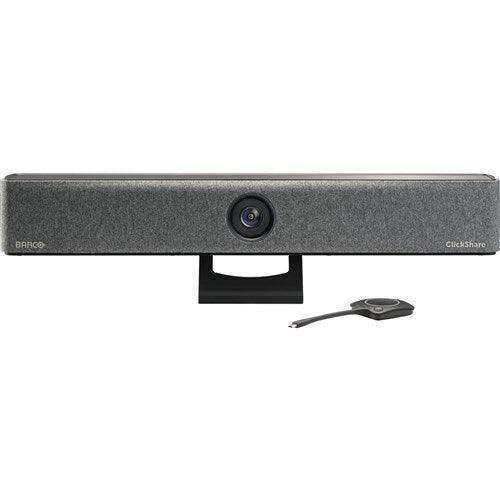

The Barco ClickShare Bar Core (R9861632USB1) is an all-in-one video bar that brings wireless conferencing to small and medium meeting rooms. It combines a 4K AI camera, stereo speakers, and a six-microphone array in a single device that works with any video conferencing platform through BYOM (bring your own meeting). Participants connect their laptop using the included ClickShare Button or the ClickShare desktop and mobile apps, then run Microsoft Teams, Zoom, or Webex from their own device. Carbon-neutral and fanless, the Bar Core simplifies installation and lowers total cost of ownership.

Product Description

ClickShare Bar Core integrates camera, audio, and wireless connectivity so a single bar handles both content sharing and room AV. As shown in the product gallery, the bar mounts above or below a display and connects to the screen over a single USB-C cable. The AI-powered 4K camera offers a 120-degree field of view, 3x ePTZ zoom, and automatic group framing for up to four people, while six beamforming MEMS microphones with echo and noise cancellation pick up voices to about 15 feet (4.5m) and the dual 10W speakers deliver stereo audio. Users start a wireless conference by pressing the included ClickShare Button or by using the ClickShare app, with no cables to the laptop and BYOM support for any platform. For rooms that need a second Button or a higher-tier bar, see the ClickShare Bar Pro; for conferencing built around a connected room display, compare the ClickShare CX-30. Browse the full range in our Barco ClickShare collection.

Key Features

• All-in-one video bar — Camera, speakers, and microphones combine in one device for small to medium rooms.
• BYOM with any platform — Run Microsoft Teams, Zoom, or Webex from a connected laptop using the Button or ClickShare app.
• AI-powered 4K camera — 4K UHD camera with 120-degree FOV, 3x ePTZ zoom, and automatic group framing for up to four people.
• Six-microphone array — Six beamforming MEMS microphones with echo and noise cancellation pick up to about 15 feet (4.5m).
• Stereo speakers — Two 10W full-duplex stereo speakers deliver clear room audio.
• Single included Button — Ships with one ClickShare Button for plug-and-share wireless conferencing.
• Fanless and carbon-neutral — Silent fanless operation in a carbon-neutral product design.
• Cloud management — Centralized management and reporting through Barco XMS for IT teams.

Typical Applications

• Small meeting rooms and huddle rooms
• Medium conference rooms
• BYOM rooms running Teams, Zoom, or Webex
• Spaces needing combined camera, mic, and speaker AV

Technical Specifications

Frequently Asked Questions

Does the ClickShare Bar Core work with Teams and Zoom? Yes. It is platform-agnostic and uses BYOM, so a connected laptop can run Microsoft Teams, Zoom, Webex, or other platforms while the bar provides camera, microphones, and speakers.

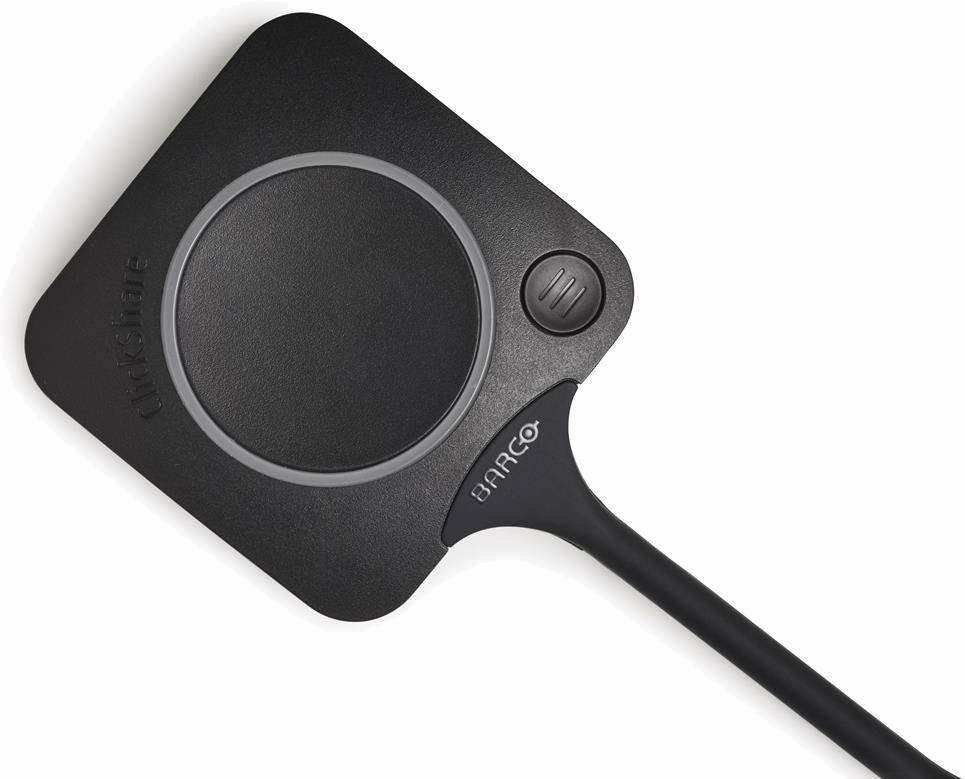

What is the difference between the Button and the app? The included ClickShare Button is a plug-and-share transmitter for one-click wireless conferencing, while the ClickShare desktop and mobile apps let users connect from a device without a Button.

What room size is the Bar Core designed for? It is built for small and medium meeting rooms, with a microphone pickup range up to about 15 feet (4.5m).

How is it managed and secured? The Bar Core supports WPA2-PSK and IEEE 802.1X authentication and is centrally managed and monitored through Barco XMS.

What is included? The package includes the ClickShare Bar Core video bar and one ClickShare Button.

What warranty applies? It carries a 1-year standard warranty, extendable to 5 years of coverage when registered through SmartCare.
