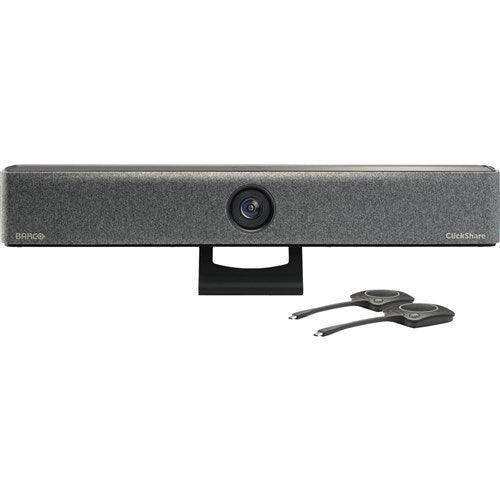

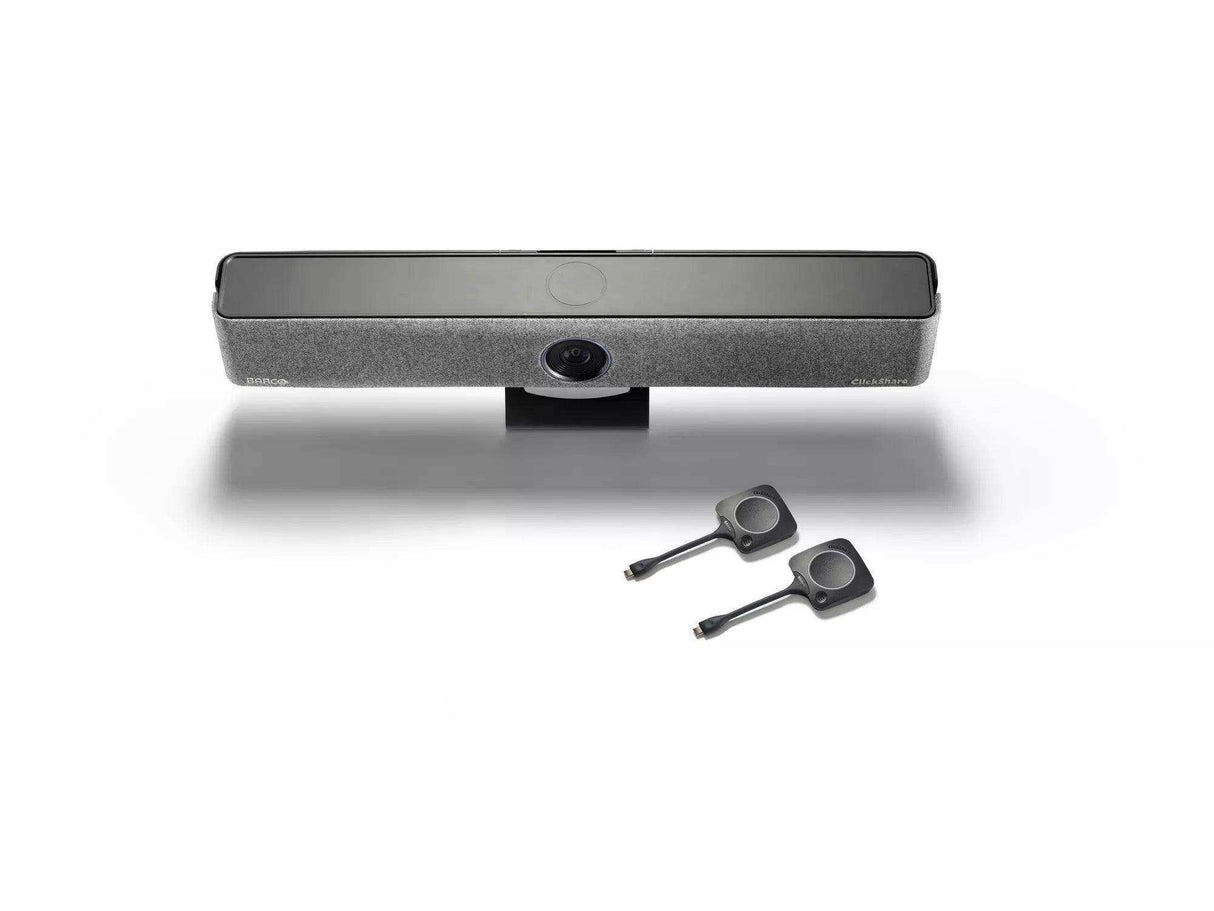

Barco Clickshare Bar CB Pro US With 2 Buttons (Black) - R9861633USB2

Barco SKU: R9861633USB2
No reviews
Price:
$3,250.00 $3,450.00

Description

ClickShare Bar Pro is a premium, carbon-neutral video bar that enables effortless wireless conferencing in medium-sized meeting rooms with any video conferencing platform. This all-in-one solution guarantees meeting equity with its advanced AV and interactive capabilities while bringing flexibility, simplified installation and a reduced Total Cost of Ownership to IT Managers.
Check out the ClickShare Bar product brochure
    • Crystal-clear, high quality stereo audio
    • Advanced AI-powered 4K camera
    • Wired room dock for 4k content sharing and alternative connectivity*
    • Advanced interactivity: touchback, annotation and blackboarding
    • Carbon-neutral product

    ClickShare Base Unit dimensions

    Dimensions (HxWxD)
    98 mm x 640 mm x 101 mm
    Power consumption
    Operational: 5-20W, 65W Max
    Power supply
    Standard 110/220 V AC plug or USB-C (back)
    Weight
    2500 gr

    General specifications

    Operating system
    Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)
    System requirements
    For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 11 latest build or Mac OS latest build
    Video outputs
    4K UHD (3840*2160) @ 30Hz. or 2x 1080p @ 30Hz. HDMI 1.4b or 1.4b or USB-C DP ALT mode (DisplayPort 1.2) (Dual screen available mid 2024)
    Video inputs
    4k UHD (3840*2160) @30Hz.USB-C DP ALT mode (DisplayPort 1.2)
    Camera
    4K, 1080p, 720p at 30fps, 3x zoom/ePTZ, 120˚FOV
    Camera AI
    Group framing, speaker framing and tracking and composition mode with up to 4 people
    Audio output
    2x 10W full duplex and stereo speakers, 8 Ohms impedance (available mid 2024)
    Audio pickup
    6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 15 feet / 4.5 meters

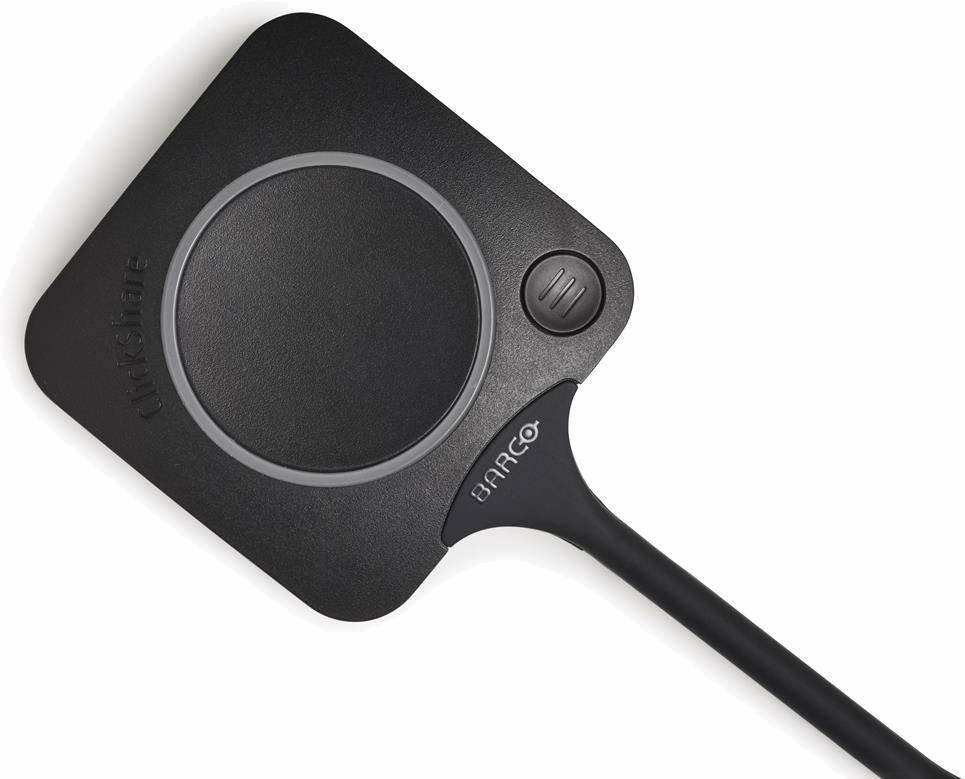

    ClickShare Buttons
    2
    ClickShare App
    Desktop & Mobile
    Native protocols
    Airplay, Google Cast, Miracast (available mid 2024)
    Noise Level
    Fanless
    Authentication protocol
    WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
    Wireless transmission protocol
    IEEE 802.11 a/g/n/ac and IEEE 802.15.1
    Reach
    Max. 30m (100 ft) between ClickShare Button and ClickShare Bar
    Frequency band
    2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)
    Connections
    1x USB-C 3.1 (DP) to screen,1x USB-C 3.1 (DP) video input, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
    Temperature range
    Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
    Humidity
    Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
    Anti-theft system
    Kensington lock (back and bottom)
    Certifications
    FCC/CE
    Touch screen support & Interactivity
    Yes
    Wireless conferencing
    via App or Button
    Local view
    Yes
    Network connection
    LAN & WiFi
    Management and reporting
    Yes
    Warranty
    1 year standard. 5 years coverage upon registering via SmartCare
