Barco R9409070-FC BME UDM W22 COMM+FRM+FC; Body+GSM+WIFI+Man Frame+FCase

Product Overview

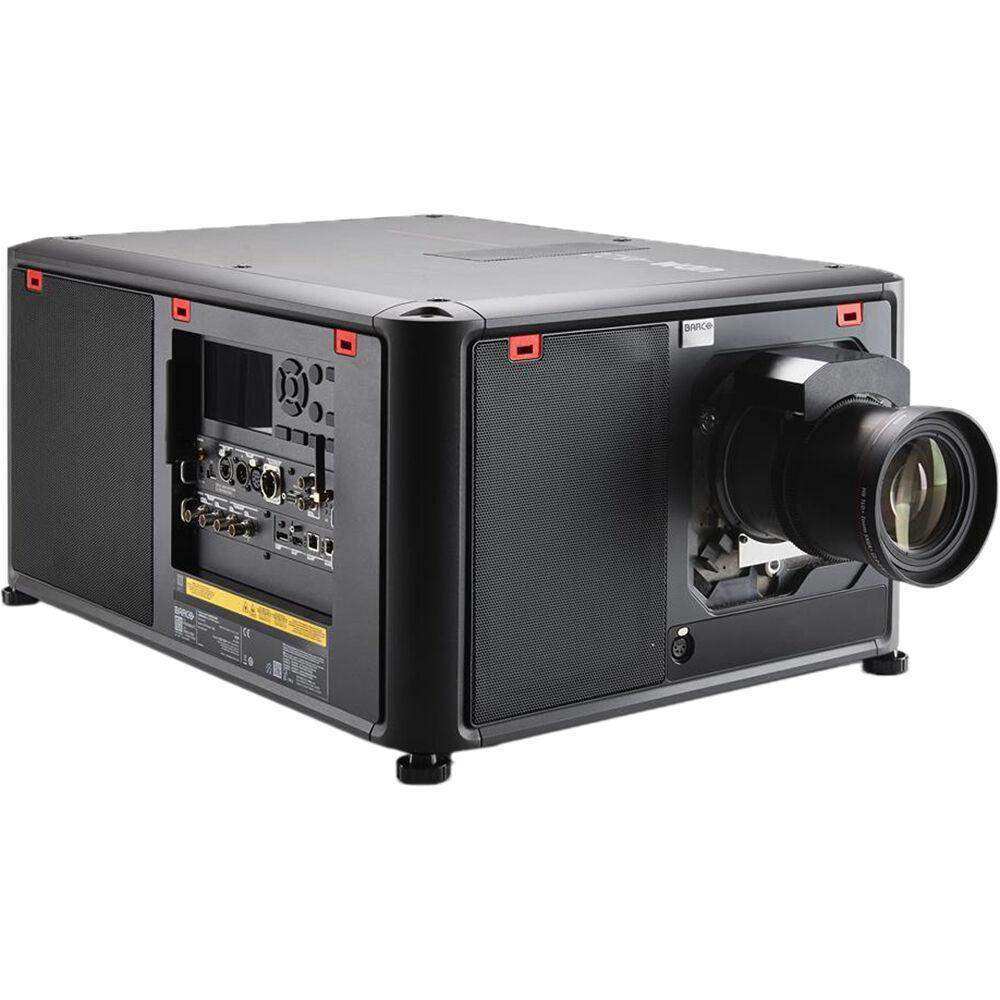

The Barco UDM-W22 COMM+FRM+FC (R9409070-FC) packages the 21,000-lumen WUXGA 3-chip DLP laser projector with a manual rigging frame and flight case for transport and quick deployment. It suits production companies and multi-venue operators that move the projector between auditoriums, ballrooms, and houses of worship without the full motorized touring hardware. The configuration includes the projector body with GSM and Wi-Fi connectivity, a manual frame, and a protective flight case. The inorganic laser phosphor light source delivers a 20,000-hour rated lifetime with constant light output.

Product Description

Built on the unified Barco Pulse electronics platform, the UDM-W22 uses Single Step Processing to handle warping, scaling, and 4K UHD source processing in a single pass for low latency and reduced dark time. The native WUXGA (1,920 x 1,200) 0.96-inch DMD imaging system accepts input resolutions from NTSC up to 4K (4,096 x 2,160). As shown in the product gallery, the manual frame and flight case protect the projector in transit while keeping setup straightforward. For fully motorized rigging with fiber, camera, and shutter, compare the UDM-W22 Touring Kit, or pair the body with a lens via the UDM-W22 COMM+LNS package. Browse the full range of Barco projection systems in our Barco collection.

Key Features

• Frame and Flight Case Package — Projector body bundled with a manual rigging frame and protective flight case for transport between venues.
• 22,000-Lumen Class Brightness — Rated at 21,000 center lumens, 20,000 ANSI lumens, and 22,000 ISO lumens for large screens in high ambient light.
• WUXGA 3-Chip DLP — Three 0.96-inch DMD chips at native 1,920 x 1,200 resolution deliver a wide color spectrum exceeding the Rec. 709 space.
• Laser Phosphor Light Source — Inorganic phosphor wheel with a 20,000-hour rated lifetime eliminates lamp replacement and image flicker.
• Barco Pulse Single Step Processing — Warping, scaling, and 4K UHD processing run in one step for low latency and razor-sharp images.
• GSM and Wi-Fi Connectivity — Integrated wireless and cellular connectivity feed the Barco Insights Management Suite for remote fleet monitoring.
• Widest Lens Shift — Vertical lens shift from -100% to +130% and horizontal up to +/-40%, with motorized zoom, focus, and position memory.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• DynaBlack Contrast — Full-field 2200:1 native contrast with Barco DynaBlack raising dynamic contrast to 20,000:1.
• 360-Degree Orientation — Full rotational mounting with active and passive 3D support for flexible installation.

Typical Applications

• Touring and multi-venue productions
• Large auditoriums and lecture halls
• House of worship main-screen projection
• Multi-purpose event and ballroom spaces
• Broadcast and production studios

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the UDM-W22? This configuration does not include a lens. It accepts the full Barco TLD+ lens range from 0.37 fixed through 7.5-11.5:1 zoom; select based on throw distance and screen width.

What is included in this configuration? This SKU (R9409070-FC) includes the projector body, GSM and Wi-Fi modules, a manual rigging frame, and a flight case, plus a power cord and wireless/XLR wired rugged remote control.

How does the UDM-W22 integrate into an AV system? It offers HDBaseT, HDMI 2.0, DisplayPort 1.2, and SDI inputs, RS232 and XLR/IR control, an integrated web server, Projector Toolset, and DMX 512 for show control.

Does it support edge blending for multi-projector setups? Yes. The UDM-W22 includes ScenergiX horizontal and vertical edge blending with embedded warp and blend for tiled and panoramic projection.

What are the power and cooling requirements? It runs on 200-240V at 13.5A (or 120-160V at reduced brightness) and dissipates up to 6,890 BTU/hr, with a typical noise level of 48 dB(A).

What warranty applies? Barco provides a standard 3-year warranty on the UDM-W22.
