Barco HDMI 2.0 Quad Output Card - R9004792B
Product Overview

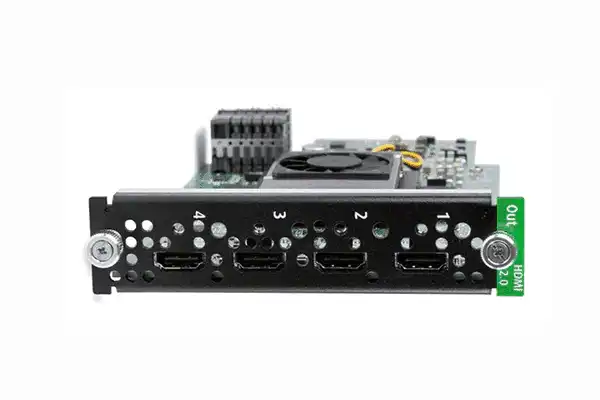

The Barco Event Master HDMI 2.0 Quad Output Card (R9004792B) adds four HDMI 2.0 connectors to compatible Event Master processors for high-resolution output. Each card supports up to four 1600p 60 outputs or two 4K 60p UHD outputs over a single cable. It is HDCP 2.2 compliant and includes automatic output acquisition and configuration. The card installs in the I/O slots of Barco's E2, Ex, and S3 family processors.
Product Description
The HDMI 2.0 Quad Output Card R9004792B drives displays, projectors, and downstream devices from a Barco Event Master processor through four HDMI 2.0 connectors. Depending on the resolution required, the card delivers up to four 1600p 60 outputs or two UHD 4K 60p outputs per card over single-cable connections. Support for VESA, CEA, and custom timings makes it suitable for mixed display environments, and automatic output acquisition and configuration speeds setup on show site. HDCP 2.2 compliance covers protected content paths.
This card pairs with the matching HDMI 2.0 Quad Input Card (R9004791B) and the DisplayPort 1.2 Quad Output Card (R9004765B). Browse the full Barco collection for Event Master processors and I/O cards.
Key Features
- 4x HDMI 2.0 Connectors — Four HDMI outputs in a single Event Master card slot.
- Flexible Output Modes — Up to four 1600p 60 outputs or two UHD 4K 60p outputs per card over a single cable.
- HDCP 2.2 Compliant — Supports protected content paths to compliant displays.
- VESA, CEA, and Custom Timings — Handles a broad range of display and projector timings.
- Automatic Output Acquisition — Detects and configures connected outputs automatically.
- Single-Cable 4K Output — Delivers UHD 4K 60p over a single HDMI cable.
Typical Applications
- Live events and rental staging built on Barco Event Master processors
- Large-format display and projection output for general sessions
- Broadcast and control room video walls requiring HDMI 2.0 output
- Productions driving protected 4K content over HDCP 2.2
Technical Specifications
| Manufacturer | Barco |
| Manufacturer Part Number | R9004792B |
| Card Type | Event Master HDMI 2.0 Quad Output Card |
| Connectors | 4x HDMI 2.0 |
| Output Modes | 4x 1600p 60 or 2x UHD 4K 60p per card (single cable) |
| HDCP | HDCP 2.2 compliant |
| Timings | VESA, CEA, custom |
| Configuration | Automatic output acquisition and configuration |
| Compatible Processors | Barco Event Master E2, Ex, S3 family |
Frequently Asked Questions
How many outputs does the R9004792B provide? Four HDMI 2.0 connectors, supporting up to four 1600p 60 outputs or two UHD 4K 60p outputs per card.
Can it output 4K over a single cable? Yes, the card delivers UHD 4K 60p over a single HDMI cable.
Is it HDCP compliant? Yes, the card is HDCP 2.2 compliant.
What timings are supported? VESA, CEA, and custom timings.
Is there a matching input card? Yes, the HDMI 2.0 Quad Input Card (R9004791B).
