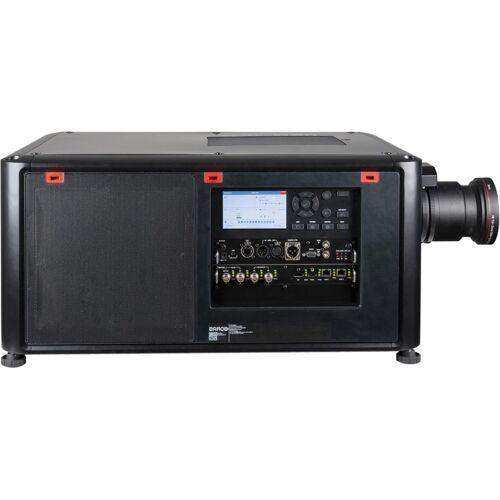

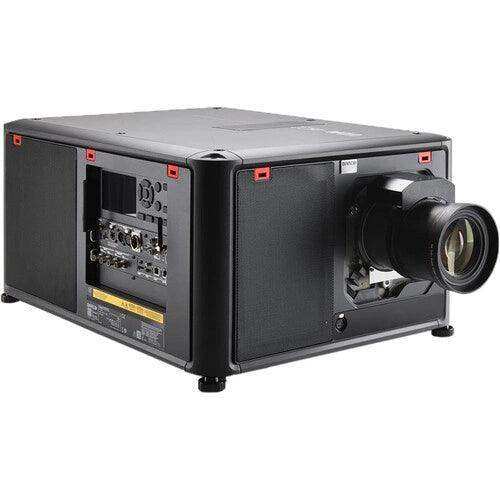

Barco R9409071-B1 BME UDM 4K15 COMM+LNS; Body+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

The Barco UDM-4K15 is a 15,000-lumen, 4K UHD 3-chip DLP laser projector built for permanent installation and touring use in large venues including auditoriums, houses of worship, and rental-staging productions. This configuration (R9409071-B1) ships as a COMM+LNS kit: the projector body, GSM and Wi-Fi connectivity, and your choice of any TLD+ lens except the 90 UST. It pairs a native WQXGA 2560 x 1600 resolution upscaled to 4K UHD with a laser phosphor light source rated up to 20,000 hours. The result is bright, color-accurate imagery with minimal maintenance.

Product Description

The UDM-4K15 shares the platform of its higher-output sibling but is tuned for venues that need 15,000 lumens at a lower price point. Barco Pulse electronics with Single Step Processing handle warping, scaling, and 4K UHD processing in a single pass for sharp images, low latency, and reduced dark time. The included TLD+ lens, combined with the widest lens shift in its class and motorized zoom and focus, lets integrators fit the projector to a specific throw distance and screen size, as shown in the gallery images.

For brighter rooms, step up to the Barco UDM-4K22, the 21,000-lumen version of this same chassis. Smaller medium-venue rooms and museums are often served by compact laser-phosphor units such as the Barco F70-4K6. Compare the full range in our Barco projector collection to match brightness, resolution, and lens options to your venue.

Key Features

• 15,000-Lumen Laser Output — Delivers up to 15,000 lumens for impactful imagery in large rooms.
• 4K UHD Resolution — Native WQXGA 2560 x 1600 chips with maximum resolution to 3840 x 2400 for detailed 4K experiences.
• Single Step Processing — Barco Pulse electronics process warping, scaling, and 4K UHD in one step for low latency and less dark time.
• FLEX Tuning — Lock the brightness level or resolution for a specific show; the modular design supports fast field service.
• Included TLD+ Lens — This kit ships with your choice of any TLD+ lens (except the 90 UST), with the widest lens shift in its class.
• Laser Phosphor Light Source — Rated up to 20,000 hours with integrated laser cooling and Constant Light Output for stable brightness and color.
• Cloud Connectivity — Built-in Wi-Fi and GSM via integrated 3G feed the Insights Dashboard for fleet management and remote log access.
• 3D Ready — Projects 3D content with high-contrast, filter-free DLP technology and reduced pixelation.
• HDMI Connectivity — HDMI interface for high-quality video input alongside the UDM connectivity suite.
• RoHS Compliant — Environmentally conscious design with ECO operating modes.

Typical Applications

• Auditoriums and performing-arts venues
• Houses of worship
• Rental and staging productions
• Large corporate and conference spaces
• Museums and themed entertainment

Technical Specifications

Frequently Asked Questions

What is included in this UDM-4K15 configuration? Part R9409071-B1 is a COMM+LNS kit: the projector body, GSM and Wi-Fi connectivity, your choice of any TLD+ lens except the 90 UST, plus power cord and a wireless/XLR wired rugged remote.

Which lenses are compatible? The UDM-4K15 accepts the Barco TLD+ lens range; this kit covers any TLD+ lens except the 90 UST. Contact us to match a lens to your throw distance and screen size.

How does it integrate into an AV system? The projector offers HDMI input plus the UDM control and connectivity suite, including built-in Wi-Fi and GSM and the cloud Insights Dashboard for fleet management.

Can it be ceiling mounted? Yes. Like the rest of the UDM platform it supports flexible orientation for ceiling, floor, and tilted installation; contact us for mount and rigging guidance.

What are the power requirements? Operating power consumption is rated at 1550 W.

What warranty is included? The UDM-4K15 carries a 3-year limited warranty; contact Creation Networks for current terms and extended service options.
