Barco R9409049-B1 BME UDM 4K22 COMM+LNS; Body+GSM+WIFI+Any TLD+ (Except 90 UST lens)

Product Overview

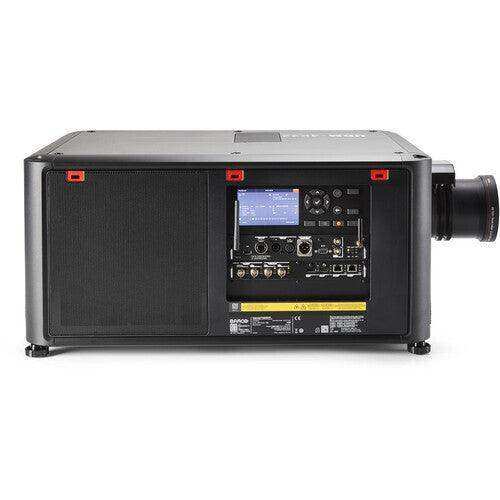

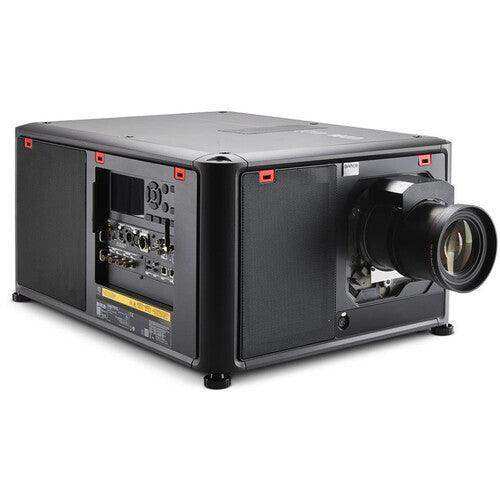

The Barco UDM-4K22 is a 21,000-lumen, 4K UHD 3-chip DLP laser projector engineered for permanent installation in large venues such as auditoriums, houses of worship, and rental-staging environments. This configuration (R9409049-B1) ships as a complete kit: the projector body, GSM and Wi-Fi connectivity (GSM+WIFI), and your choice of any TLD+ lens except the 90 UST. With 19,000 ANSI lumens and a native WQXGA 2560 x 1600 resolution upscaled to 4K UHD, it delivers bright, detailed imagery across very large screens. The laser phosphor light source supports 24/7 operation while reducing maintenance compared with lamp-based projectors.

Product Description

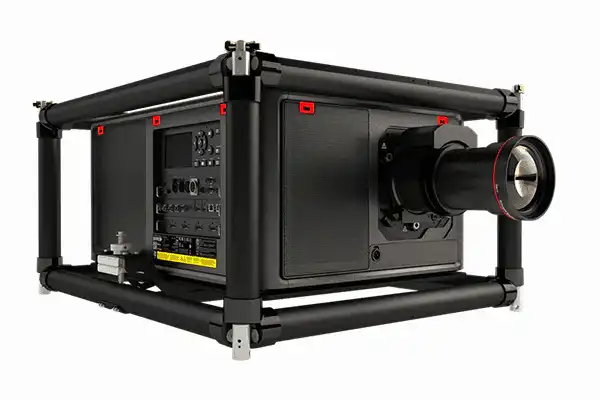

Designed for high-output, high-resolution projection, the UDM-4K22 pairs Barco Pulse electronics with Single Step Processing so that scaling and 4K UHD processing occur in one pass, producing sharp images, low latency, and reduced dark time. The interchangeable TLD+ lens included in this kit lets integrators dial in the throw distance and image size required for a specific room, with motorized zoom, focus, and lens shift backed by position memory. As the gallery images show, the rugged chassis supports 360 degree orientation for ceiling, floor, tilted, and rear-projection mounting.

This UDM-4K22 kit is the higher-brightness sibling of the Barco UDM-4K15, which serves venues that need slightly lower output at a lower price point. For compact 4K laser-phosphor rooms, integrators often pair these large-venue units with platforms such as the Barco F70-4K6. Browse the full lineup in our Barco projector collection to compare brightness, resolution, and lens options across the UDM and F-series families.

Key Features

• 21,000-Lumen Laser Output — Delivers 19,000 ANSI / 20,000 center / 22,000 ISO lumens for bright imagery in large rooms with ambient light.
• 4K UHD via Pixel Shift — Native WQXGA 2560 x 1600 chips display up to 5120 x 3200 on screen through Barco pixel-shift processing.
• Single Step Processing — Barco Pulse electronics handle scaling and 4K UHD processing in one step for low latency and less dark time.
• FLEX² Tuning — Lock brightness or resolution to a specific show, with a modular design built for fast field service.
• Included TLD+ Lens — This kit ships with your choice of any TLD+ lens (except the 90 UST) plus motorized zoom, focus, and lens shift with position memory.
• Laser Phosphor Light Source — Inorganic phosphor wheel and integrated laser cooling support 24/7 operation with Constant Light Output.
• Warping and Edge Blending — ScenergiX horizontal and vertical edge blending plus warping for multi-projector and curved-screen installs.
• Integrated Connectivity — Built-in Wi-Fi and GSM via integrated 3G feed the cloud Insights Dashboard for fleet brightness management and remote log access.

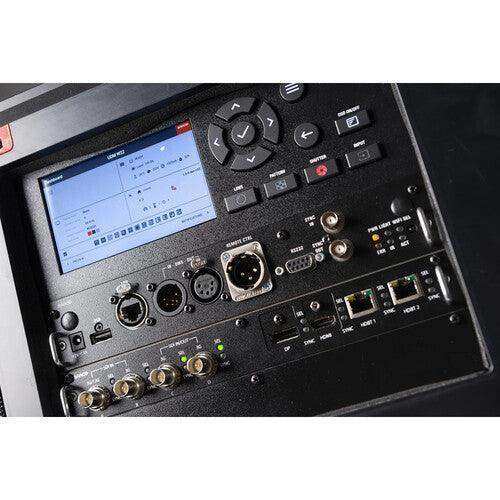

• Versatile Inputs — HDBaseT, HDMI 2.0, DisplayPort 1.2, and 12G-SDI inputs with HDR10 support and one expansion slot.
• 360 Degree Orientation — Ceiling, rear-screen, and tilted projection with DMX 512 and integrated web server control.

Typical Applications

• Auditoriums and performing-arts venues
• Houses of worship
• Rental and staging productions
• Large corporate and conference spaces
• Museums, themed entertainment, and projection mapping

Technical Specifications

Frequently Asked Questions

What is included in this UDM-4K22 configuration? Part R9409049-B1 is a COMM+LNS kit: the projector body, GSM and Wi-Fi connectivity, and your choice of any TLD+ lens except the 90 UST lens.

Which lenses are compatible? The UDM-4K22 accepts the full Barco TLD+ lens range covering a wide span of throw ratios; this kit covers any TLD+ lens except the 90 UST. Contact us to match a lens to your throw distance and screen size.

How does it integrate into an AV system? Inputs include HDBaseT, HDMI 2.0, DisplayPort 1.2, and 12G-SDI, with control over DMX 512, RS-232, Ethernet, IR, Wi-Fi, and GSM, plus an integrated web server and Projector Toolset apps.

Can it be ceiling mounted or used for rear projection? Yes. The UDM-4K22 supports 360 degree orientation, including ceiling, tilted, and rear-screen installation.

What are the power requirements? It operates on 120 to 240 VAC, 50/60 Hz, drawing under 2400 W at full brightness and under 2 W in standby.

Is warranty support available? Yes. Barco projectors are backed by manufacturer warranty; contact Creation Networks for current warranty terms and extended service options.
