Avocor AVX-1320 – 132" 21:9 dvLED Display with ATA Case

This package pairs the Avocor AVX-1320 132-inch direct view LED (dvLED) display with a rolling ATA shipping case, protecting the LED cabinets in transit between venues, campuses, or staging facilities.

Product Overview

The Avocor AVX-1320 with ATA case is a transportable dvLED video wall solution for organizations that move a large-format LED display between sites — rental and staging companies, multi-campus enterprises, and event production teams. The 132" 21:9 ultra-wide LED display delivers 2400 x 1080 resolution at a 1.27mm pixel pitch, and the air-transport-association rated road case keeps the die-cast magnesium cabinets protected during shipping and road travel. For AV integrators, this configuration removes the riskiest part of a portable dvLED deployment: getting fragile LED modules to the venue intact.

Product Description

At the heart of the package is the same all-in-one tiled dvLED display used in permanent boardroom installations: 20 cabinets in a 5 x 4 array forming a 3064 x 1489 x 31mm screen at 108 kg (238 lbs), with a built-in processor that eliminates external video wall controllers. Image performance is identical to the fixed-install model — calibrated brightness up to 500 cd/m², 6500:1 contrast, 98% brightness uniformity, 16-bit processing, and a 3,840 Hz refresh rate that stays clean on camera for broadcast and hybrid events. The ATA case is a rolling shipping and road case purpose-built for the X Series, so crews can pack, roll, and load the display for repeated transport without crating it custom each time. Because every cabinet is front-serviceable and spare LED modules ship in the box, field repairs at a venue are practical — a key consideration for touring and temporary commercial deployments. Inputs include three HDMI 2.0 (HDCP 2.2) connections, front USB-C and USB-A ports, plus RS-232 and LAN control for integration with show control and enterprise AV systems. DisplayNote Montage wireless sharing, Rise Vision digital signage, and Avocor FUSE cloud management are built in, and 2 x 30W forward-facing speakers cover program audio where a full PA is not deployed.

Key Features

• Rolling ATA Shipping Case Included — The air-transport-association rated road case protects the LED cabinets during repeated shipping and road transport between venues and campuses.
• Transportable dvLED Platform — The all-in-one tiled design with built-in processor sets up far faster than component LED walls, making multi-site and event deployments practical.
• 21:9 Ultra-Wide Canvas — The 2400 x 1080 format supports Microsoft Teams Front Row, side-by-side content, and widescreen event graphics in one surface.
• 1.27mm Fine Pixel Pitch — Single SMD pixels hold up at viewing distances beyond 2.5 meters, suitable for seated audiences in meeting and event spaces.

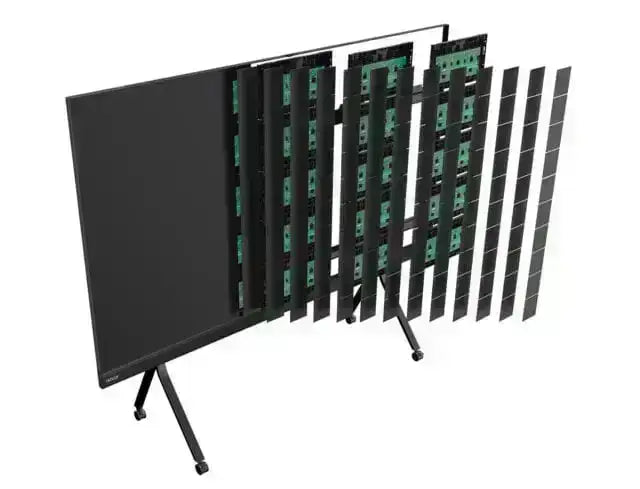

• Field-Serviceable from the Front — Spare LED modules and a removal tool are included, so on-site module swaps at a venue take minutes rather than requiring a return to depot.
• Broadcast-Friendly Refresh — The 3,840 Hz refresh rate and 16-bit processing keep the wall flicker-free on camera for livestreams and broadcast studios.
• Pro AV Control and Connectivity — RS-232, LAN (RJ45), three HDMI 2.0 inputs with HDCP 2.2, and optical SPDIF out integrate cleanly with show control and room AV systems.
• Built-In Collaboration Software — DisplayNote Montage wireless sharing, Rise Vision digital signage, and Avocor FUSE cloud device management come standard.

Typical Applications

• Multi-purpose rooms and venues with rotating event setups
• All-hands rooms and commercial meeting spaces shared across campuses
• Broadcast studios and temporary production sets
• Auditorium and house of worship productions requiring seasonal relocation
• Training rooms deployed at rotating sites
• Government spaces with staged or relocatable briefing facilities

Technical Specifications

Frequently Asked Questions

What is the ATA case and why does it matter for a dvLED display?

The ATA case is a rolling air-transport-association rated shipping and road case. LED modules are the most damage-prone part of any dvLED system, and the case protects the cabinets during repeated transport — essential for staging companies and multi-site organizations.

Does this package include a stand for floor use?

No. This configuration is the display plus the ATA case; wall mounting hardware is included with the display. If you need a freestanding setup, see the AVX-1320 with stand and ATA case or the AVX-1320 with mobile stand.

Is the display compatible with Microsoft Teams Front Row?

Yes. The 21:9 2400 x 1080 panel is matched to the Teams Front Row layout. Connect a certified Teams Rooms compute device through one of the HDMI 2.0 inputs.

Can the wall be repaired on site during an event?

Yes. Service access is from the front, and spare LED modules with a removal tool ship in the box, so a technician can swap a module at the venue without disassembling the wall.

How does it integrate with show control and AV systems?

RS-232 and LAN (RJ45) control ports work with Crestron, Extron, Q-SYS, and show control platforms, while Avocor FUSE provides cloud device management across a fleet of displays.

What other configurations are available?

Creation Networks also offers the AVX-1320 display only and the 16:9 Avocor AVX-1380 138". See the full Avocor collection or contact us for deployment planning and warranty support.
