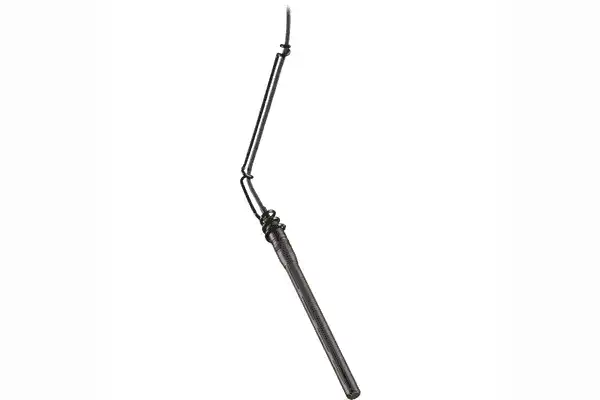

Audio-Technica U853PMU Miniature UniLine condenser hanging microphone, phantom power only, includes wall/ceiling plate power module

Product Overview

The Audio-Technica U853PMU is a UniLine condenser hanging microphone from the UniPoint installation series, designed for suspension over choirs, instrumental groups, and stage areas. Its line-cardioid UniLine pattern provides a focused 90-degree angle of acceptance, making it a reliable overhead choir microphone for houses of worship, auditoriums, and performance spaces. The package includes the AT8534 wall/ceiling plate power module for clean, permanent installation.

Product Description

As a hanging microphone, the U853PMU suspends discreetly above performers and captures a focused area thanks to its UniLine (line-cardioid) pattern. Interchangeable elements with omnidirectional, cardioid, and hypercardioid patterns are available, so the same installation can be re-tuned to the room.

An 80 Hz UniSteep low-cut filter reduces pickup of low-frequency ambient noise, and UniGuard RFI-shielding technology guards against radio-frequency interference common in installed AV environments. The microphone ships with a 7.6 m (25') attached cable that connects to the included AT8534 wall/ceiling plate power module through a TA3F-type connector, and it requires 11V to 52V phantom power.

An adjustable steel wire hanger, a two-stage foam windscreen, and a 5/8″-27 stand adapter are included for flexible mounting. For surface-mount pickup in the same room, the U851RbO boundary microphone is a complementary UniPoint option.

Key Features

• UniLine line-cardioid pattern — A focused 90-degree angle of acceptance captures performers overhead while reducing off-axis pickup.
• Interchangeable elements — Omnidirectional, cardioid, and hypercardioid capsules are available so the installation can be re-tuned to the room.
• 80 Hz UniSteep filter — The integral low-cut filter reduces pickup of low-frequency ambient noise in live rooms.
• UniGuard RFI shielding — UniGuard technology provides strong immunity from radio-frequency interference in installed AV systems.
• Complete install kit — An adjustable steel wire hanger, two-stage windscreen, 5/8″-27 adapter, and AT8534 wall/ceiling power module are included.

Typical Applications

• House of worship
• Auditorium
• Multi-purpose room
• Broadcast studio
• Government space

Technical Specifications

Frequently Asked Questions

Where is the U853PMU typically installed?

It is designed for suspension over choirs, instrumental groups, and stage areas in houses of worship, auditoriums, and performance spaces.

What does the UniLine pattern offer?

UniLine is a line-cardioid pattern with a focused 90-degree angle of acceptance, which captures performers below while rejecting more off-axis sound than a standard cardioid.

Is a power module included?

Yes. The package includes the AT8534 wall/ceiling plate power module. The microphone requires 11V to 52V phantom power supplied through that module to your mixer or DSP.

Can the pickup pattern be changed?

Yes. Interchangeable elements in omnidirectional, cardioid, and hypercardioid patterns are available separately, so the same hanging installation can be re-tuned.

How is it mounted?

An adjustable steel wire hanger is included for suspended installation, along with a two-stage windscreen and a 5/8″-27 stand adapter.

What warranty and support apply?

Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and installation questions on orders placed with us.
