Overview

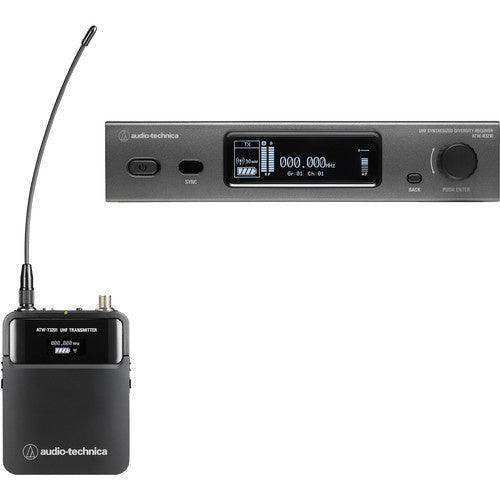

The Audio-Technica ATW-3211DE2 is a 3000 Series (4th generation) rackmount wireless microphone system with professional-level features for enhanced reliability and control. It offers Ethernet networking for quick multichannel setups and an intuitive interface with a dual-mode OLED display for easy operation. With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages
The ATW-3211 includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference.
This system features a bodypack transmitter equipped with a rugged metal housing and a proprietary Hirose 4-pin cH-style screw-down connector for secure connection with a compatible lavalier or headset microphone of your choice or an instrument cable. The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.
Features
Compact Bodypack for Hands-Free Presentations
- The bodypack transmitter features a rugged Hirose 4-pin cH-style connector, which provides secure connection to compatible lavalier mics, headworn mics, and cables.
- The transmitter's input accepts low-impedance microphone levels as well as high-impedance musical instrument or line levels. The gain ranges from -10 to +20 dB and can be adjusted in 2 dB increments.
- The bright OLED screen presents comprehensive setup and operating information, including battery indicator, mute status, and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental changes.
- A tactile mute toggle switch (defeatable) provides physical confirmation of mute status when transmitter display is not visible.
- The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button.
- Two RF power output settings are available: the low-level setting extends battery life while the high-level offers a stronger RF signal link.
- In case of interference, the programmable multifunction button on the transmitter can be used to switch to a clean, backup frequency with minimal interruption.
- The transmitter operates for up to 9 hours on two AA alkaline batteries and up to 9.5 hours on two rechargeable AA NiMH batteries.
- Charging terminals on the base of the transmitter work with the optional ATW-CHG3 charging dock or ATW-CHG3N networked charging dock to recharge AA NiMH batteries.
- The durable metal chassis is equipped with a field-replaceable whip antenna and a secure, locking battery compartment door.
Reliable Receiver That's Easy to Use
- The wide 60 MHz UHF bandwidth gives you 2395 selectable frequencies to choose from for interference-free audio transmission in an increasingly congested RF environment.
- To prevent dropouts, the receiver's true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality.
- Auto-frequency scanning automatically selects the most appropriate frequency for the area in which the wireless is operating.
- Pre-coordinated frequency scan groups are available to simplify selection of usable frequencies in a multichannel wireless setup.
- The bright, dual-mode OLED display can be switched between two modes: the standard view provides continuous indication of RF signal strength, frequency, mute status, audio modulation level, and transmitter information, while the performance view highlights key metering.
- The display also shows the transmitter's battery life and mute status.
- Settings can be quickly adjusted using the control dial and BACK button located on the receiver's front panel. Settings can also be locked to prevent accidental changes.
- The BNC sockets for the two detachable antennas provide bias power to active remote antennas and other in-line RF devices.
- The ground-lift switch on the back panel helps eliminate audible hum caused by ground loops.
- One balanced XLR and one unbalanced 1/4" audio outputs let you connect the receiver to a mixing board or PA system.
- The half-rack receiver chassis can be mounted alone in a standard 19" rack using the included mounting brackets and screws.
Enhance the Performance of Your System
- Adding a pair of ATW-A49 LPDA directional remote antennas increases the range of your system and offers more protection against interference.
- The optional RF Venue DISTRO4 four-channel antenna distribution system allows you to distribute the RF signal from the remote antennas to four discrete 3000 Series receivers.
Specification
System
Receiver
Transmitter
Packaging Info
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 2395 |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | DE2: 470.125 to 529.975 MHz |
| RF Bandwidth | 60 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 40 |
| Dynamic Range | 115 dB (Mic Input) 112 dB (Instrument Input) |
| Encryption | None |
| Deviation | ±38 kHz |
| Modulation | FM |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, BNC (Rear-Mount) |
| Antenna Bias Voltage | 12 VDC, 160 mA (Combined) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
| Gain Range | -60 to 0 dB (2 dB Steps) |
| Audio Output Level | XLR Output: +14 dBV 1/4" Output: +8 dBV |
| Frequency Response | 31 Hz to 15.5 kHz (Dependent on Mic) |
| Approximate RF Sensitivity | 20 dBuV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 1 A, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Dimensions | 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm |
| Weight | 38.8 oz / 1100 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 / 30 mW (Switchable, at 50 Ohms) |
| Audio I/O | 1 x Hirose cH-Style 4-Pin Male Input (Lockable) |
| Muting | Mute Switch |
| Gain Range | -10 to +20 dB (2 dB Steps) |
| Signal Processing | High-Pass Filter: 125 Hz, 12 dB/Octave Slope |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Detachable (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | Low: 9 Hours (Alkaline) 9.5 Hours (NiMH Rechargeable) High: 8 Hours (Alkaline) 9 Hours (NiMH Rechargeable) |
| Display & Indicators | 1 x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power) |
| Housing | Metal |
| Dimensions | 2.5 x 0.9 x 3.2" / 64 x 23 x 82 mm |
| Weight | 3.6 oz / 102 g (without Batteries) |
| Package Weight | 5.11 lb |
| Box Dimensions (LxWxH) | 15.2 x 12.7 x 3.3" |
