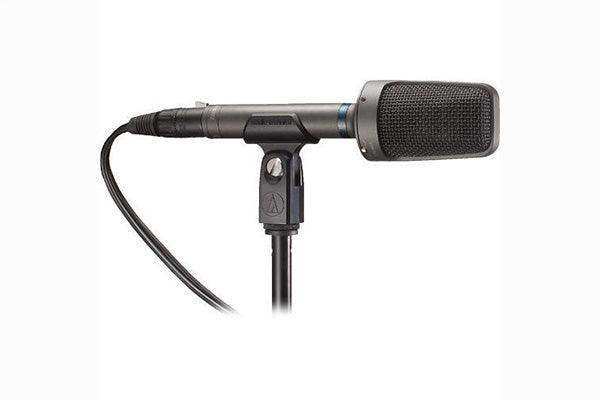

Audio-Technica AT8022 X/Y stereo microphone
Audio-Technica AT8022 X/Y stereo microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Audio-Technica AT8022 X/Y stereo microphone
Product Overview
The Audio-Technica AT8022 is an X/Y stereo microphone with a coincident capsule design that captures a realistic single-point stereo image in a compact body. It suits field recording, broadcast, and room capture in studios and auditoriums where a portable, true stereo microphone is needed. It runs on either an AA battery or 11–52V phantom power for flexible deployment.
Product Description
The AT8022 places two capsules in a coincident X/Y configuration, producing a stereo image with strong spatial realism while keeping the housing small. This makes it practical for location recording, ambience capture, and broadcast where carrying a single stereo microphone is easier than a matched pair.
A switch selects flat response or an integral 80 Hz high-pass filter to control low-frequency noise. The microphone handles up to 128 dB SPL on phantom power (120 dB on battery) with a 109 dB dynamic range, and measures 186.0 mm long.
For a fixed-install, mains-powered single-point stereo option, the AT4050ST offers mid-side stereo with internal matrixing.
Key Features
- Coincident X/Y capsules — A coincident capsule design captures a realistic, phase-coherent single-point stereo image.
- Compact stereo body — The small housing makes portable stereo recording easier than carrying a matched pair.
- Battery or phantom power — Operation on an AA battery or 11–52V phantom power supports both field and installed use.
- Switchable 80 Hz high-pass filter — A switch selects flat response or a low-frequency roll-off to control noise.
- Broadcast and field ready — The design suits location recording, ambience capture, and broadcast stereo.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Multi-purpose room
Technical Specifications
| Type | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar pattern | X/Y stereo (coincident) |
| Maximum input SPL | 128 dB SPL (phantom) / 120 dB SPL (battery), 1 kHz at 1% T.H.D. |
| Dynamic range | 109 dB (phantom) / 101 dB (battery) |
| High-pass filter | Switchable 80 Hz |
| Power | 1.5V AA battery or 11–52V phantom |
| Length | 186.0 mm (7.32″) |
Frequently Asked Questions
What is an X/Y stereo microphone?
It places two capsules at a coincident point so their outputs form a phase-coherent stereo image from a single microphone, which is convenient and mono-compatible.
Can it run on battery?
Yes. The AT8022 operates on a 1.5V AA battery or on 11–52V phantom power, so it works in the field and in installed systems.
What is it best used for?
Location recording, ambience and room capture, and broadcast stereo where a portable single-point stereo microphone is preferred.
Does it have a low-cut filter?
Yes. A switch selects flat response or an integral 80 Hz high-pass filter to control low-frequency noise.
How does it integrate into our system?
It connects to standard inputs on your recorder, mixer, or DSP; use phantom power for the highest SPL handling and dynamic range.
What warranty applies?
Audio-Technica provides a limited warranty; refer to their current terms. Creation Networks supports warranty and product questions on orders placed with us.
