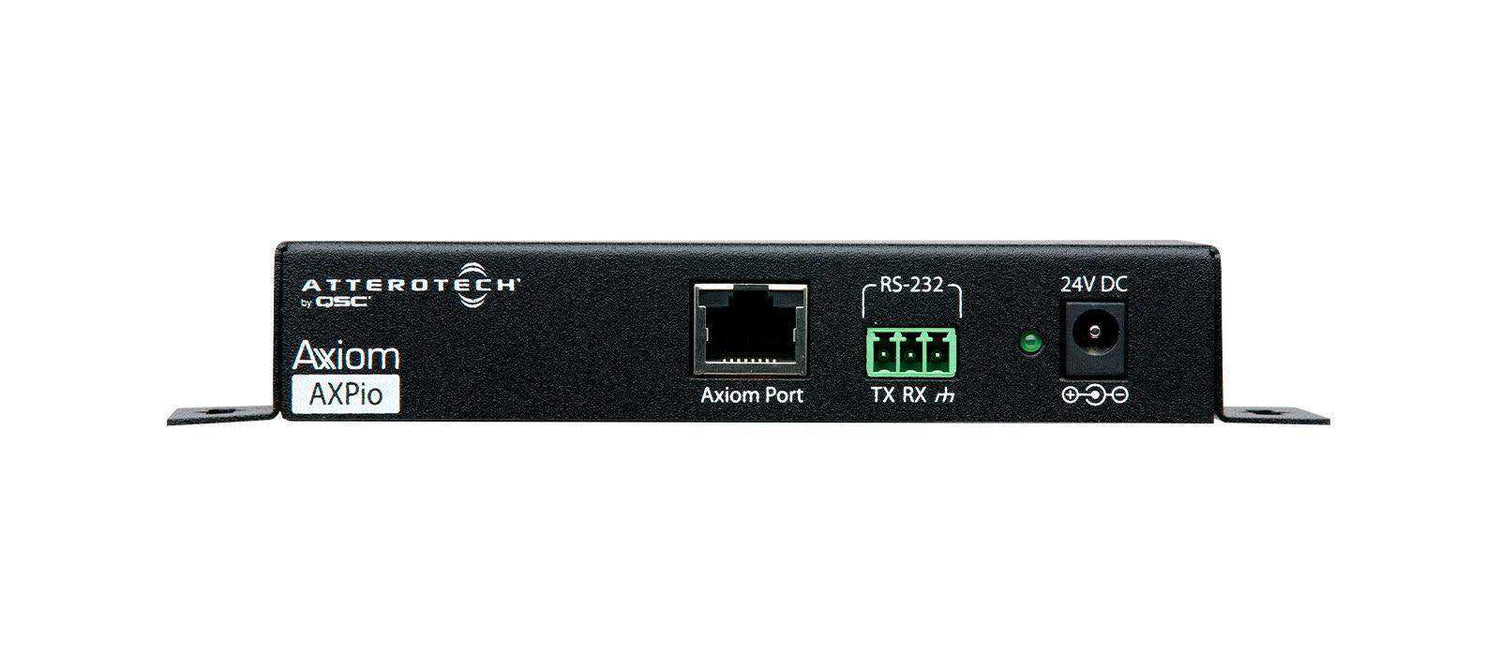

QSC Attero Tech AXPIO – 2-Channel Axiom Bus Analog I/O Audio Expander

Product Overview

The Attero Tech by QSC AXPIO is a two-channel Axiom Series analog audio expander that extends portable and local audio sources into an installed AV system over standard, non-networked CAT-5 cabling. It pairs with Axiom single-gang wallplates to bring USB, Bluetooth, or XLR audio inputs from a room location back to a mixer, DSP, or other audio destination. Its two Flex I/O channels can be configured as inputs, outputs, or a mix, making it a flexible point-to-point analog audio extension solution for conference rooms and huddle rooms. With RS-232 control connectivity, the AXPIO integrates cleanly into a networked AV control environment such as the Q-SYS Ecosystem.

Product Description

The Axiom Series provides a simple, flexible, and cost-effective approach to point-to-point analog audio extension where a full networked-audio deployment is not required. The AXPIO audio expander offers two Flex I/O channels, configurable as 2x0, 1x1, or 0x2, and pairs with up to two Axiom wallplates, letting an integrator bring portable audio devices into a room's audio system using inexpensive, readily available CAT-5 cabling rather than dedicated audio home-runs. The single 8P8C connection carries balanced line-level analog audio, RS-232 control, and 24V DC power on one cable run. Because the link is point-to-point and analog, the AXPIO is well suited to huddle rooms, conference rooms, and presentation spaces that need a clean connection point for laptops, phones, and microphones at the wall. Each expander also provides RS-232 connectivity for control integration into a networked AV system, allowing the device to participate in a larger control design such as the Q-SYS Ecosystem. It pairs naturally with a Q-SYS processor such as the QSC Core 8 Flex.

Key Features

• Two-channel Flex I/O — Provides two configurable analog audio channels (2x0, 1x1, or 0x2) for bringing room-level sources into an installed AV system.
• Point-to-point CAT-5 extension — Extends balanced line-level audio over standard, non-networked CAT-5/6 cabling for low-cost installation.
• Single-cable power and control — Carries audio, RS-232 control, and 24V DC power over one 8P8C connection to simplify wiring.
• Axiom wallplate pairing — Pairs with up to two Axiom single-gang USB, Bluetooth, or XLR wallplates for flexible input options.
• Adjustable gain staging — Input gain ranges from -4 dB to +20 dB and output gain from 0 dB to +24 dBu for proper level matching.
• RS-232 control connectivity — Integrates into a networked AV control system such as the Q-SYS Ecosystem.

Typical Applications

• Huddle room — Wall-located connection point for portable BYOD audio sources over a single CAT-5 run.
• Conference room — Analog audio extension from the wall to a rack-mounted DSP or mixer without dedicated home-runs.
• Boardroom — Clean integration of presenter laptops and devices into the room AV system.
• Training room — Local microphone and program inputs extended over inexpensive structured cabling.
• Multi-purpose room — Flex I/O configurability supports changing room source requirements.

Technical Specifications

Specifications sourced from QSC / Attero Tech. Refer to the official Axiom AXPIO specification sheet for complete details.

Frequently Asked Questions

What does the AXPIO do?
It extends two channels of analog audio between an Axiom wallplate and a mixer, DSP, or other destination over standard CAT-5/6 cabling, providing a clean room-level connection point for portable audio devices.

Does it require a Dante or Q-SYS audio network?
No. The AXPIO uses point-to-point analog extension over non-networked CAT-5/6. It can be controlled and integrated into a Q-SYS or other networked AV system via RS-232.

What wallplates does it work with?
It pairs with up to two Axiom single-gang wallplates offering USB, Bluetooth, or XLR audio inputs.

How is it powered?
Power, audio, and RS-232 control all travel over the single 8P8C cable run, with the device receiving 24V DC, simplifying installation.

What about warranty and support?
Refer to QSC / Attero Tech warranty terms for coverage. For integration and purchasing questions, contact Creation Networks support.
