Atlas Sound IED1112PSM – Plug-In Power Supply Module for Redundancy
What is the Atlas Sound IED1112PSM?

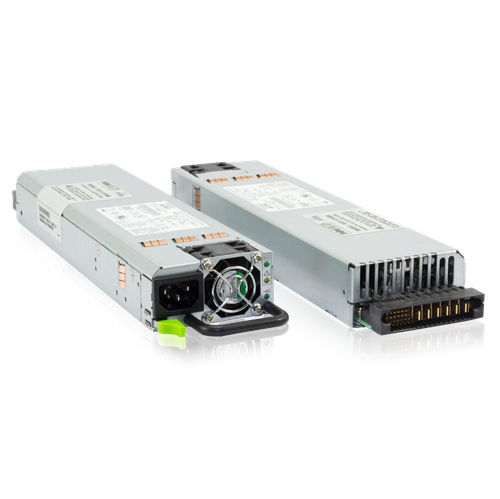

The IED1112PSM is the plug-in 12V DC power supply module used inside the Atlas Sound IED1112PS rack power supply chassis. One ships standard with every IED1112PS; a second module is sold separately to add hot-swap redundancy.
What does the Atlas Sound IED1112PSM do?
Each module can deliver up to 37 amps of 12V DC power to as many as eight connected GLOBALCOM devices. When a second module is installed alongside the first, the two run in a redundant configuration: if one module fails, the remaining module automatically assumes the full load without interrupting power to any connected device, and a failed module can be swapped out while the system stays powered by the other. A fault relay de-energizes on module failure, a signal that can be monitored through the GLOBALCOM supervision system for automated alerting.
What are the key features of the Atlas Sound IED1112PSM?
- Hot-swappable — Replace a failed module without powering down the system.
- 37A output capacity — Powers up to 8 GLOBALCOM devices per module.
- Fault relay signaling — De-energizes on failure for supervision system monitoring.
- Drop-in redundancy — Adds a second power path to an existing IED1112PS chassis.
Technical Specifications
| Output Voltage | +12VDC |
| Output Current | Up to 37A |
| Device Capacity | Up to 8 GLOBALCOM devices |
| Compatibility | IED1112PS rack chassis |
| Fault Signaling | Relay de-energizes on module failure |
Specifications sourced from AtlasIED. Requires an Atlas Sound IED1112PS chassis. See the Atlas Sound collection.
Frequently Asked Questions
Do I need this if I already bought an IED1112PS?
Only if you want redundancy — one module ships with every IED1112PS chassis; this is the second, add-on module.
Can I swap a failed module without shutting the system down?
Yes, with two modules installed, the remaining module carries the full load while the failed one is replaced.
