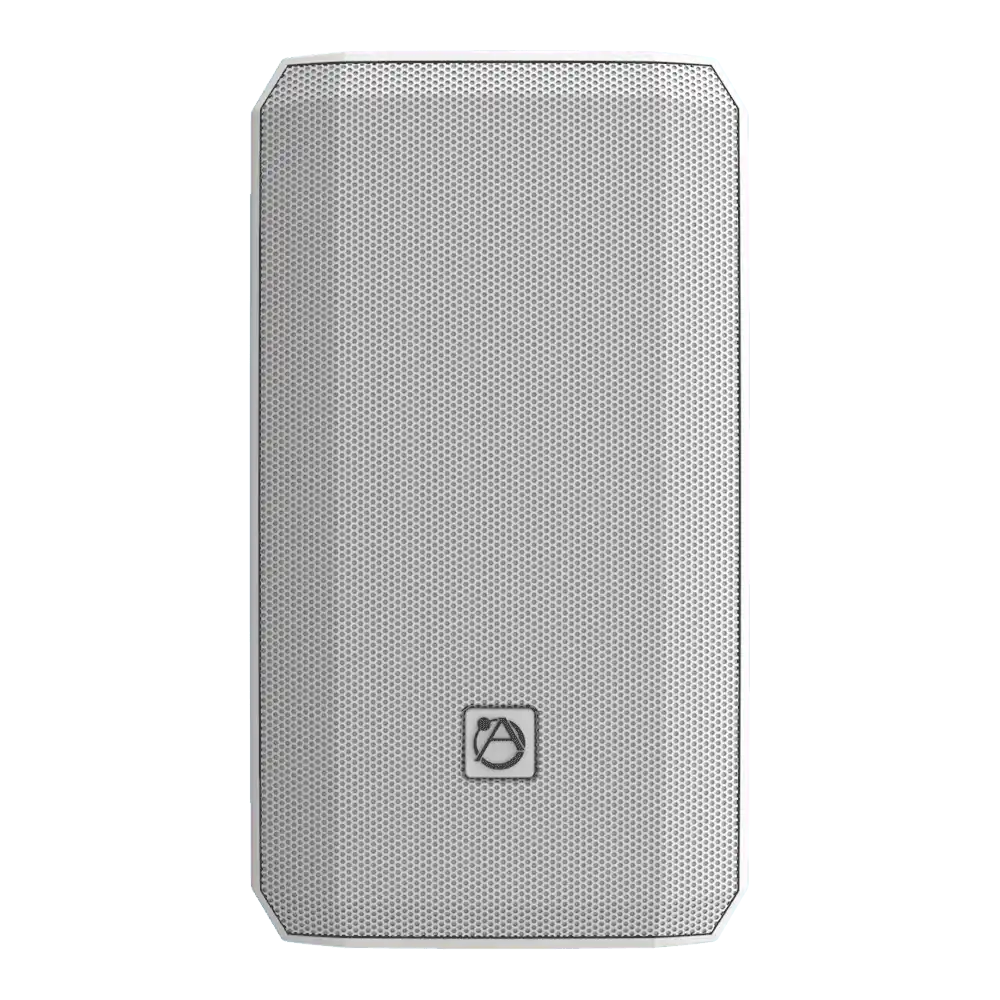

Atlas Sound AS-6T-W 6.5" AS Series Surface Mount Speaker (White, Pair)

Product Overview

The Atlas Sound AS-6T-W brings the AS Series 6.5" two-way surface mount platform to bright architectural spaces, supplied as a matched white speaker pair for commercial sound system installation. White enclosures blend into light walls, soffits, and ceilings in offices, worship spaces, healthcare facilities, and education buildings where black hardware would draw the eye. Each loudspeaker runs on 70V or 100V distributed lines via a selectable 60W transformer, or direct at 8 ohms when paired with a conventional amplifier channel. With an IP55 weather rating, the pair handles covered exterior walkways and open-air courtyards as confidently as interior rooms.

Product Description

Acoustically, the AS-6T-W pairs a high-excursion 6" polypropylene woofer with a 1.25" silk dome tweeter that uses ferrofluid cooling for thermal stability under sustained program levels. AtlasIED engineered the crossover and waveguide for accurate response both on axis and well off axis, so speech remains intelligible and music stays balanced for listeners anywhere in the coverage zone — a practical advantage in open commercial spaces. The 110° horizontal by 90° vertical pattern allows generous spacing between enclosures in distributed audio system design, trimming both hardware cost and installation labor on larger projects.

For 70V/100V speaker system integration, a rear slide selector under a security cover sets transformer taps at 60W, 30W, 15W, or 7.5W (3.8W on 70V), or switches to low-impedance bypass for 8-ohm operation rated at 150W average and 300W program per speaker. The low insertion loss transformer was tuned specifically for flat response through the critical speech and music bands — an area where many distributed-line speakers compromise. The textured white ABS enclosure includes a UV inhibitor, and combined with the IP55 ingress rating and powder-coated aluminum grille, it resists fading and corrosion in sun-exposed and humid locations. Installation uses the included white slip-free yoke bracket with preset angles; the optional AS-UL universal mount adds pan-and-tilt presets, and VESA-compatible mounting points accept third-party hardware. EASE and EASE Focus models, CF2 data, 3D CAD, and BIM/Revit families support consultants through design and documentation, and Atmosphere DSP tunings are available for commissioning. Projects calling for dark enclosures against stage rigging or dark ceilings can specify the same pair in black: the Atlas Sound AS-6T-B.

Key Features

• Architectural White Finish — Textured white enclosures and color-matched brackets disappear against light walls and ceilings in design-sensitive interiors.
• Matched Pair Packaging — Two identical speakers per order cover stereo program audio or two distributed zones with one purchase.
• 6" Woofer with Silk Dome Tweeter — Ferrofluid-cooled high-frequency driver and polypropylene woofer produce 55Hz–20kHz full-range output.
• Selectable 70V/100V Taps or 8-Ohm — The 60W low insertion loss transformer with rear slide selector adapts each speaker to distributed or low-impedance amplifier designs.
• Broad, Even Coverage — The 110° x 90° nominal pattern with consistent off-axis response keeps levels uniform across wide listening areas.
• Rated for Weather Exposure — IP55 ingress protection, UV-inhibited ABS, and an aluminum grille support exterior and high-humidity installation.
• Three Mounting Paths — Included yoke bracket, optional AS-UL universal pan-tilt mount, and VESA compatibility cover nearly any placement requirement.
• Modeling and DSP Support — EASE, CF2, CAD, and BIM/Revit files plus AtlasIED Atmosphere tunings shorten design and commissioning time.

Typical Applications

• House of worship sanctuaries with light-finish architecture
• Conference room and boardroom audio on white walls
• Huddle room and commercial meeting space reinforcement
• Training room and multi-purpose room distributed audio
• All-hands room program and paging coverage
• Government space announcements and background music

Technical Specifications

Frequently Asked Questions

How many speakers come with this purchase?
Two. The AS-6T-W ships as a matched white pair, each with its own color-matched yoke mounting bracket and hardware covers.

How do I configure the speakers for my amplifier?
Use the rear slide selector on each speaker: pick a 70V/100V transformer tap (60W, 30W, 15W, or 7.5W; 3.8W at 70V) for distributed lines, or select low-Z bypass to drive the speaker at 8 ohms from a conventional amplifier.

Can these white speakers be installed outdoors?
Yes. The IP55 rating and UV-inhibited enclosure are designed for rain, snow, humidity, and sun, so exterior soffits, patios, and walkways are appropriate locations.

Will the white finish yellow in sunlight?
The ABS enclosure is formulated with a UV inhibitor specifically to resist degradation in high-UV environments, per AtlasIED's published specifications.

What if I need to aim the speakers more precisely than the included bracket allows?
The optional AtlasIED AS-UL universal mount provides preset vertical and horizontal angles, and the VESA-compatible mounting points accept third-party brackets.

Do you carry this model in black?
Yes. The same speaker pair in textured black is available as the AS-6T-B for installations with dark finishes.

How long is the manufacturer warranty?
AtlasIED provides a 60-month warranty from the date of purchase; Creation Networks assists with any support needs after your order.
