Atlas Sound AS-6T-B 6.5" AS Series Surface Mount Speaker (Black, Pair)

Product Overview

The Atlas Sound AS-6T-B is a compact 6.5" two-way surface mount speaker pair in textured black, engineered for distributed audio systems in restaurants, retail spaces, meeting rooms, and outdoor commercial areas. Each speaker operates on 70V/100V lines through a 60W low insertion loss transformer or directly at 8 ohms, giving AV integrators a single SKU that covers both system architectures. The IP55-rated enclosure tolerates rain, humidity, and UV exposure, so the same black surface mount speaker can serve indoor zones and exterior patios alike. Sold as a pair, this listing simplifies stereo and dual-zone speaker installation purchasing.

Product Description

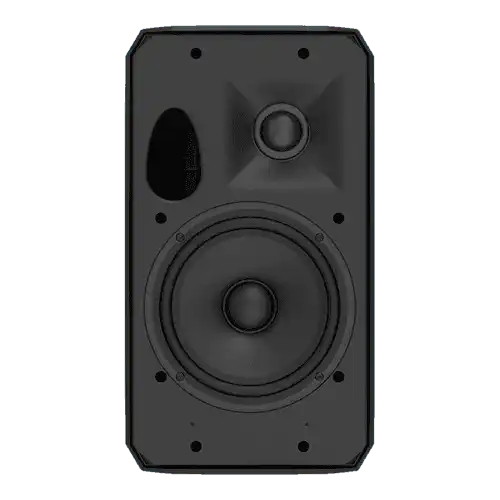

Inside the AS-6T-B's understated black enclosure, a high-excursion 6" polypropylene woofer transitions to a 1.25" silk dome, ferrofluid-cooled high-frequency driver. The result is consistent, accurate broadband response on and off axis — essential in commercial audio installation work where listeners move throughout a space rather than sitting in a sweet spot. The 110° x 90° nominal coverage angle is wide for the form factor, letting designers cover dining rooms, sales floors, and meeting areas with fewer enclosures per zone. The transformer is a standout in 70V distributed speaker systems: optimized for both efficiency and response flatness in the frequency regions that matter most for speech intelligibility and music reproduction, with taps of 60W, 30W, 15W, and 7.5W (3.8W at 70V) plus low-Z bypass selected by a rear slide switch under a security cover.

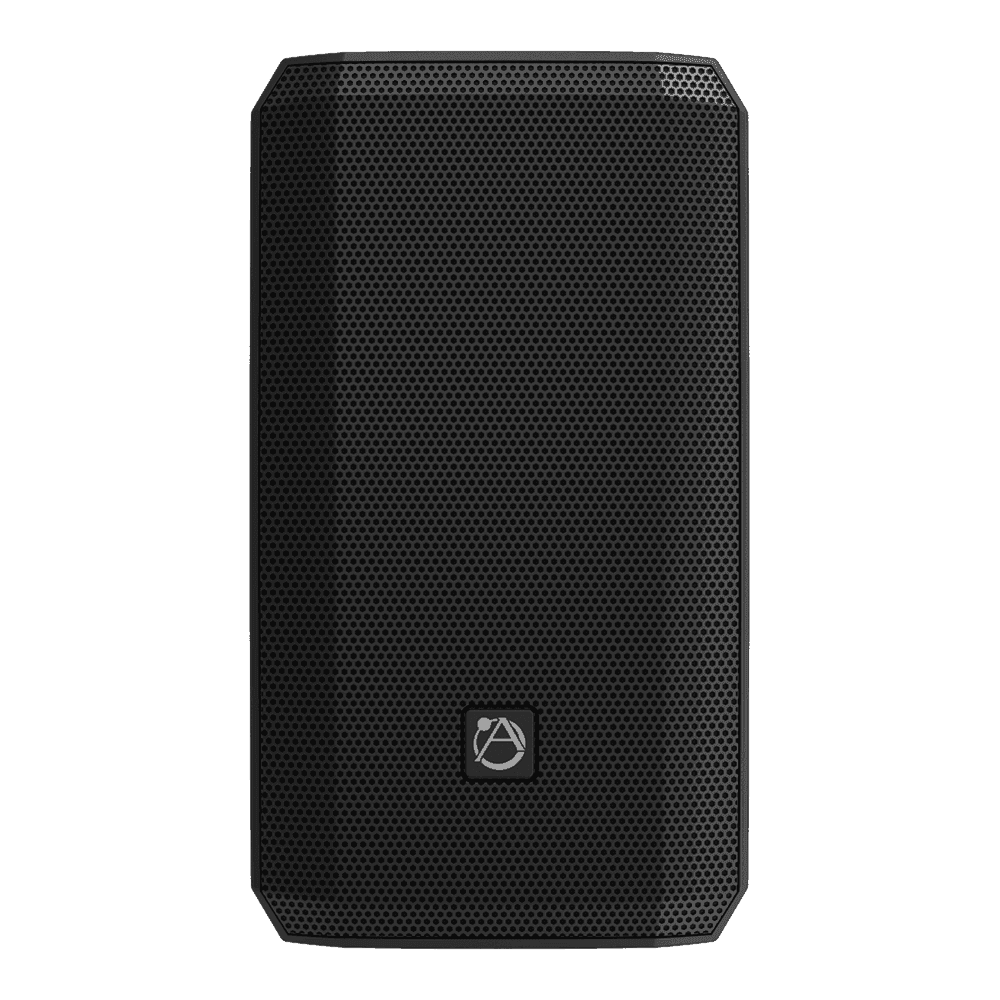

In low-impedance mode each speaker handles 150W average and 300W program at 8 ohms, reaching 116dB peak SPL — ample output for foreground music in active venues. The high-impact ABS enclosure carries a UV inhibitor and IP55 rating, and the powder-coated aluminum grille resists corrosion in damp or coastal environments. Each speaker ships with a color-matched, slip-free yoke (C-bracket) mount with preset aiming angles; the optional AS-UL universal pan-and-tilt mount and third-party VESA mounts extend placement options for challenging architecture. AtlasIED publishes EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit data for the AS-6T, and advanced tunings are available through the Atmosphere DSP platform. The dark finish suits bars, clubs, black-ceiling retail, and stage-adjacent installs; for bright interiors and light facades, the same speaker pair is available in white as the Atlas Sound AS-6T-W.

Key Features

• Two-Way 6.5" Compact Design — A 6" polypropylene woofer and 1.25" silk dome ferrofluid-cooled tweeter deliver 55Hz–20kHz response from a small, architecture-friendly enclosure.
• Dual-Mode Operation — A 60W low insertion loss transformer with 60W/30W/15W/7.5W taps (3.8W at 70V) and low-Z bypass supports both 70V/100V distributed and 8-ohm amplifier designs.
• Sold as a Pair — Two matched black speakers per order streamline stereo zones and symmetrical room layouts.
• IP55 Weather Resistance — UV-inhibited ABS construction and a powder-coated aluminum grille hold up outdoors in rain, humidity, and direct sun.
• Wide 110° x 90° Coverage — Consistent horizontal off-axis performance reduces speaker count per zone and keeps level uniform across listening areas.
• Flexible Mounting — Slip-free yoke mounts are included, with optional AS-UL universal mounts and VESA compatibility for third-party hardware.
• High Output for Its Size — 88dB sensitivity and up to 116dB peak SPL per speaker handle foreground music and paging in noisy venues.
• System Design Support — EASE, CF2, 3D CAD, and BIM/Revit files plus Atmosphere DSP tunings simplify modeling, specification, and commissioning.
• Sonically Matched Series — Voicing consistent with other AS Series models keeps tonality uniform across mixed-speaker installations.

Typical Applications

• Conference room and boardroom program audio
• House of worship fill and overflow zones
• Multi-purpose room and training room sound reinforcement
• Commercial meeting space background and foreground music
• All-hands room distributed coverage
• Government space paging and program audio

Technical Specifications

Frequently Asked Questions

Does this listing include one speaker or two?
This listing is a pair — two matched AS-6T-B speakers in textured black, each with its own included yoke mount bracket.

Can the AS-6T-B run on a 70V system and an 8-ohm amplifier?
Yes. Each speaker's rear slide selector chooses transformer taps for 70V/100V distributed lines or bypasses the transformer for 8-ohm low-impedance operation.

Is the AS-6T-B suitable for outdoor use?
Yes. The IP55 rating, UV-inhibited ABS enclosure, and powder-coated aluminum grille permit installation in rain, snow, high-humidity, and high-UV locations.

What mounting options exist beyond the included bracket?
Beyond the supplied slip-free yoke mount, the optional AtlasIED AS-UL universal mount adds pan and tilt presets, and VESA compatibility lets you use third-party mounting hardware.

Is a white version available?
Yes. The identical speaker pair in textured white is sold as the AS-6T-W for light-colored walls and ceilings.

What design files does AtlasIED provide for system modeling?
EASE (including EASE Focus), CF2, 3D CAD, and BIM/Revit families are available, supporting acoustic prediction and construction documentation.

What is the warranty?
AtlasIED warrants the AS-6T series for 60 months from the date of purchase, with order support provided by Creation Networks.
