Atlas Sound AS-10T-B 10" AS Series Surface Mount, Passive (Black)

Product Overview

The Atlas Sound AS-10T-B is a two-way, full-range commercial surface mount speaker built for distributed sound reinforcement where speech intelligibility, music quality, and weather resistance all matter. A high-excursion 10" woofer transitions to a 1" exit compression driver through model-specific waveguides, producing a consistent 100° x 90° coverage pattern on and off axis. Its 120W low-insertion-loss transformer supports 70V and 100V distributed audio installation, with a low-impedance 8-ohm bypass for direct amplification. The IP55-rated black ABS enclosure performs indoors or out, making the AS-10T-B a single-SKU answer for mixed indoor-outdoor commercial AV projects.

Product Description

AtlasIED describes the AS Series as its best-performing surface mount loudspeakers to date, and the AS-10T-B is the 10" full-range anchor of that line. The two-way design pairs a high-excursion 10" woofer with a 1" exit compression driver, covering 45Hz to 20kHz (-10dB) with a rated response of 58Hz to 18kHz (+/-3dB) and 93dB sensitivity. Power handling reaches 240W average, 480W program, and 960W peak, for maximum SPL of 117dB average and 123dB peak — real output for paging and program music in large commercial spaces. Where many competitors' transformers degrade audio quality on constant-voltage lines, the AS-10T's ultra-low insertion loss 120W transformer is optimized for efficiency and flatness in the frequency regions most important to speech and music; taps of 120W, 60W, 30W, and 15W (7.5W at 70V) plus 8-ohm low-Z bypass are selected on a rear slide switch with security cover. The included color-matched, slip-free C-bracket yoke mount provides preset adjustment angles for consistent, repeatable aiming during installation, and the speaker is also compatible with VESA mounts and an optional universal mount. The high-impact ABS enclosure carries a UV inhibitor and IP55 rating, standing up to rain, snow, humidity, and direct sun, while the powder coated aluminum grille resists corrosion and impact. The AS-10T is sonically matched to the rest of the AS Series, so mixed-model installations stay tonally consistent; for low-frequency extension, pair it with the AS-10ST-B surface mount subwoofer. EASE (with EASE Focus compatibility), CF2, 3D CAD, and BIM/Revit design files are available, and advanced tunings are offered through the AtlasIED Atmosphere DSP platform.

Key Features

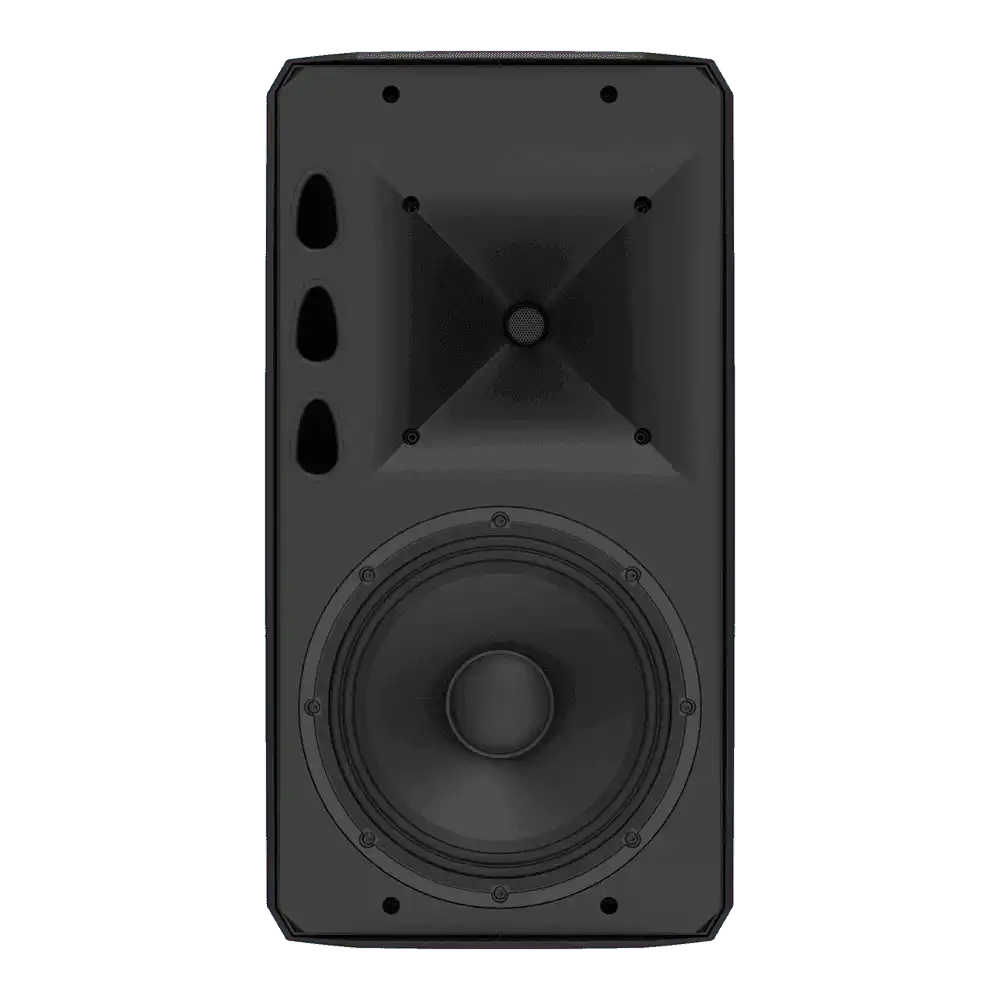

• Two-Way 10" + 1" Compression Driver Design — Accurate broadband response on and off axis for both speech and music reinforcement.
• 100° x 90° Nominal Coverage — Engineered waveguides deliver even coverage and consistent horizontal off-axis performance across the listening area.
• 120W Low-Insertion-Loss Transformer — Maintains dynamics and tonal flatness on 70V/100V distributed audio systems where typical transformers fall short.
• Selectable Taps Plus 8-Ohm Bypass — Rear slide selector with security cover sets 120W, 60W, 30W, 15W (7.5W at 70V) or low-impedance operation.
• 960W Peak Power Handling — Up to 123dB peak SPL gives system designers genuine headroom in demanding venues.

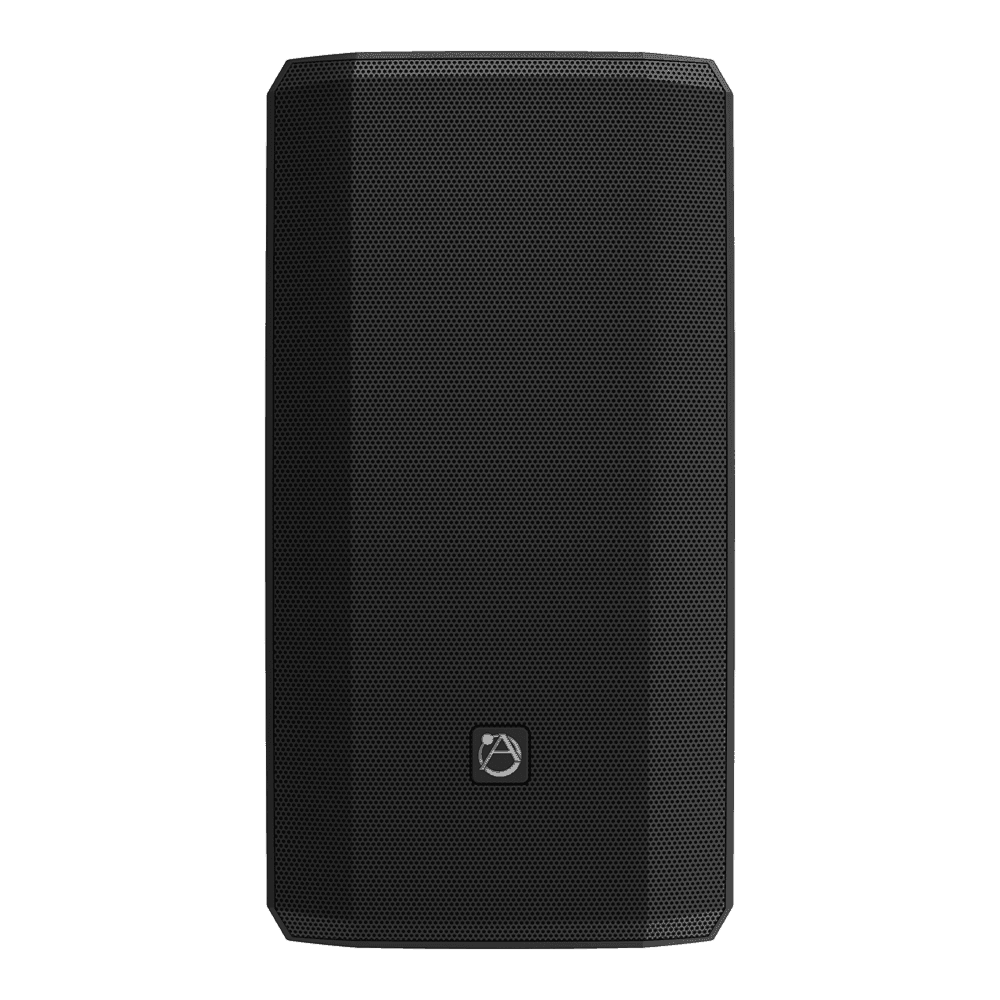

• IP55 Weather-Resistant Enclosure — UV-inhibited ABS cabinet and powder coated aluminum grille handle rain, snow, humidity, and high-UV exposure.
• Slip-Free Yoke Mount with Preset Angles — Included C-bracket speeds installation and ensures repeatable aiming; VESA mount compatible.
• AS Series Sonic Matching — Voiced to match other AS Series models so mixed-product installations remain tonally consistent.
• Professional Design File Support — EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit families plus Atmosphere DSP tunings streamline AV system integration.

Typical Applications

• House of worship sound reinforcement
• Auditorium and multi-purpose room audio
• Government space and courthouse paging and program audio
• Commercial meeting space music and announcements
• Training room and all-hands room reinforcement

Technical Specifications

Frequently Asked Questions

Does the AS-10T-B work on 70V and 100V systems?
Yes. The built-in 120W transformer offers 120W, 60W, 30W, and 15W taps (7.5W at 70V), selected from a covered rear slide switch, plus a bypass for 8-ohm low-impedance operation.

Can it be installed outdoors?
Yes. The IP55-rated, UV-inhibited ABS enclosure is designed for rain, snow, humidity, and high-UV locations as well as indoor installation.

What mounting options are available?
A slip-free yoke mount with preset adjustment angles is included; the speaker is also compatible with VESA mounts, and an optional universal mount is available.

How do I add bass to a system built around the AS-10T-B?
Pair it with the matching AS-10ST-B surface mount subwoofer, which shares the same form factor, finish, and AS Series voicing.

What amplifier should I use in low-impedance mode?
AtlasIED recommends approximately 480W at 8 ohms. Creation Networks can help size an amplifier for your zone counts and tap settings.

Is it suitable for mixed AS Series installations?
Yes. The AS-10T is sonically matched to other AS Series models, keeping tonal balance consistent when multiple speaker types are used in one project.

What warranty applies?
AtlasIED covers the AS-10T-B with a five-year limited warranty (60 months from date of purchase), with order and integration support from Creation Networks.
