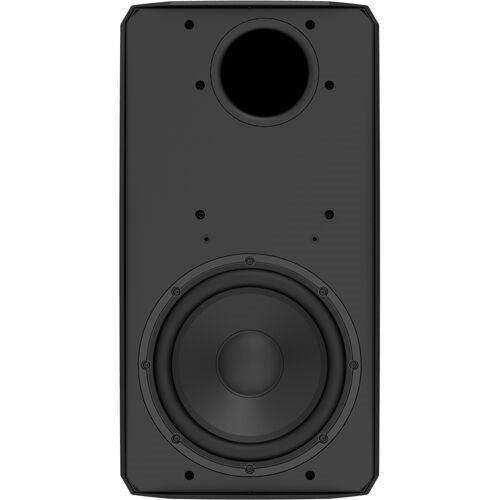

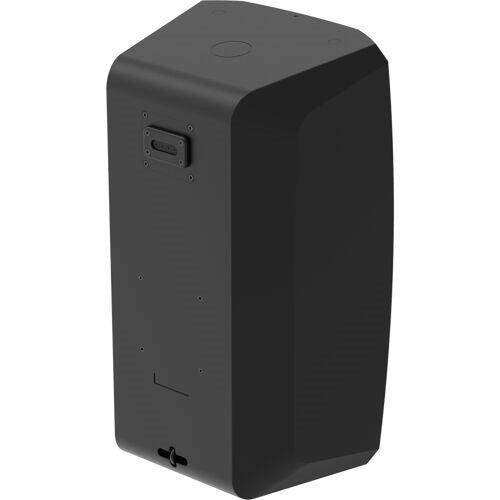

Atlas Sound AS-10ST-B 10" AS Series Surface Mount Subwoofer, Passive (Black)

Product Overview

The Atlas Sound AS-10ST-B is a passive 10" surface mount subwoofer that extends low-frequency response and adds system headroom to AtlasIED AS Series full-range loudspeakers in commercial audio installations. Its IP55-rated, UV-inhibited ABS enclosure makes it equally at home indoors or in exposed outdoor locations such as patios, courtyards, and stadium concourses. A 200W low-insertion-loss transformer with slide-selector taps supports 70V and 100V distributed audio systems, while a low-impedance bypass serves direct-amplified designs. The textured black finish disappears against dark facades, truss, and nighttime venue environments.

Product Description

Full-range surface mount speakers handle speech and mid-band music well, but commercial systems that play program music need dedicated low end — and that is the role the AS-10ST-B fills. The direct-radiating design uses a high-excursion, weather-treated 10" woofer with a highly damped butyl rubber surround to deliver consistent, impactful bass from 34Hz to 800Hz (-10dB), with a rated frequency response of 43Hz to 600Hz (+/-3dB). Power handling is substantial: 300W average, 600W program, and 1200W peak, producing up to 118dB average and 124dB peak SPL. For distributed audio installation, the ultra-low insertion loss 200W transformer offers 200W, 100W, and 50W taps (25W at 70V) selected via a rear slide switch with a security cover, plus low-impedance bypass at a nominal 4 ohms for amplifiers rated around 600W at 4 ohms. The included slip-free yoke mount (C-bracket) makes safe overhead or wall installation straightforward, and the powder coated aluminum grille shrugs off impacts in high-traffic spaces. System designers get a complete suite of EASE (including EASE Focus compatibility), CF2, 3D CAD, and BIM/Revit files from the manufacturer, and advanced tunings are available through the AtlasIED Atmosphere DSP platform. The same subwoofer is offered in white as the AS-10ST-W for bright interiors and light architectural surfaces.

Key Features

• High-Excursion 10" Weather-Treated Woofer — Butyl rubber surround delivers controlled, impactful bass in both indoor and outdoor commercial sound systems.
• IP55-Rated ABS Enclosure — UV-inhibited, scuff-resistant housing performs reliably through rain, humidity, and direct sun exposure.
• 200W Low-Insertion-Loss Transformer — Preserves dynamics and bass extension on 70V and 100V distributed audio lines where lesser transformers fall flat.
• Selectable Taps with Security Cover — Rear slide switch sets 200W, 100W, 50W (25W at 70V), or low-impedance bypass without removing the speaker.
• 1200W Peak Power Handling — Substantial headroom yields up to 124dB peak SPL for music-forward venues.
• Slip-Free Yoke Mount Included — Color-matched C-bracket with hardware covers simplifies secure wall or overhead installation.
• AS Series Voicing Match — Engineered to integrate with AS Series full-range loudspeakers for a coherent system response.
• Design File Support — EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit files support accurate system modeling, with advanced tunings via the Atmosphere DSP platform.

Typical Applications

• House of worship music reinforcement
• Auditorium and multi-purpose room low-frequency support
• All-hands room and commercial meeting space audio
• Government space sound reinforcement

Technical Specifications

Frequently Asked Questions

Which speakers pair with the AS-10ST-B?
It is voiced to complement AtlasIED AS Series full-range surface mount loudspeakers, such as the AS-10T, extending low-frequency response and adding headroom to the system.

Does it work on a 70V distributed audio system?
Yes. The built-in 200W transformer provides 200W, 100W, and 50W taps (25W at 70V) plus a low-impedance bypass, all selectable from a rear slide switch with a security cover.

Can it be installed outdoors?
Yes. The IP55-rated ABS enclosure with UV inhibitor and weather-treated woofer are designed for rain, humidity, and high-UV environments as well as indoor use.

What amplifier should drive it in low-impedance mode?
AtlasIED recommends approximately 600W at 4 ohms. Creation Networks can help match an amplifier to your overall system design.

Is mounting hardware included?
Yes. A color-matched, slip-free yoke mount (C-bracket) with hardware covers ships in the box for wall or overhead installation.

Is this subwoofer available in white?
Yes. The identical specification in a white finish is sold as the AS-10ST-W.

What warranty applies?
AtlasIED provides a five-year limited warranty (60 months from purchase), backed by Creation Networks order support.
