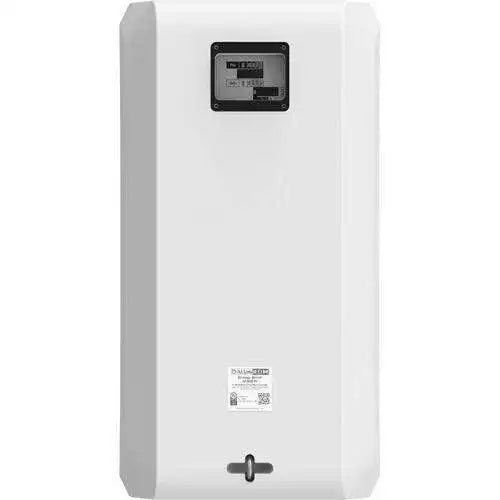

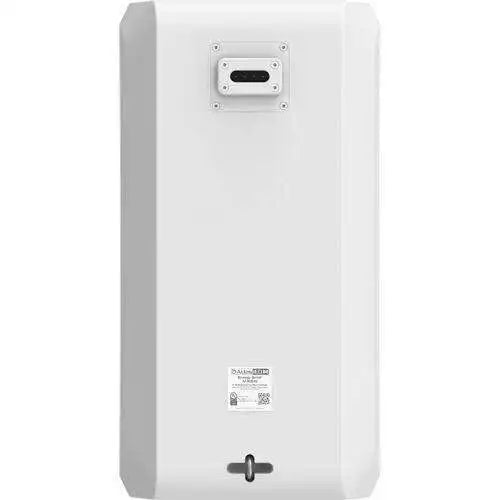

Atlas Sound AS-10ST-W 10" AS Series Surface Mount Subwoofer, Passive (White)

Product Overview

The Atlas Sound AS-10ST-W brings dedicated low-frequency reinforcement to AS Series loudspeaker systems in a textured white enclosure that blends with bright ceilings, light masonry, and architecturally sensitive interiors. As a passive 10" surface mount subwoofer with a 200W transformer for 70V/100V commercial audio systems and a 4-ohm low-impedance option, it fits both distributed designs and dedicated amplifier channels. The IP55 weather-resistant housing allows installation under canopies, on terraces, and in humid natatorium-style environments as confidently as in conference centers and worship spaces. Where the venue calls for bass without a visual footprint, white is the finish integrators specify.

Product Description

In rooms with white acoustic ceilings, painted steel, or light drywall, a black subwoofer draws the eye — the AS-10ST-W solves that problem without sacrificing output. Behind the powder coated aluminum grille sits a weather-treated, high-excursion 10" woofer with a highly damped butyl rubber surround, reproducing 34Hz to 800Hz at the -10dB points and 43Hz to 600Hz within +/-3dB. Sensitivity measures 93dB (1W/1m), and the driver handles 300W average, 600W program, and 1200W peak power for maximum SPL figures of 118dB average and 124dB peak. Integrators working on constant-voltage projects will appreciate the ultra-low insertion loss 200W transformer: a rear slide selector with security cover steps through 200W, 100W, and 50W taps (25W on 70V lines) or bypasses to 4-ohm low-impedance operation, where AtlasIED recommends roughly 600W of amplifier power. The high-impact ABS cabinet carries a UV inhibitor and an IP55 rating, so the white finish resists yellowing and the electronics resist dust and water jets in semi-exposed locations. Installation uses the included slip-free yoke mount, color matched in white with hardware covers for a clean finished look on walls or overhead structure. Designers can model the system in EASE and EASE Focus or drop manufacturer-supplied CF2, 3D CAD, and BIM/Revit families into project documentation, and the AtlasIED Atmosphere DSP platform offers factory tunings for the AS Series. Need it in black for dark interiors or exterior soffits? The same subwoofer ships as the AS-10ST-B.

Key Features

• Textured White Architectural Finish — Blends into light ceilings, walls, and canopies in design-sensitive commercial interiors.
• Weather-Treated 10" High-Excursion Woofer — Butyl rubber surround maintains consistent bass output across temperature and humidity swings.
• 70V/100V Operation with 200W Transformer — Ultra-low insertion loss design keeps bass dynamics intact on distributed speaker lines.
• Tap Selector with Security Cover — 200W, 100W, and 50W taps (25W at 70V) plus 4-ohm bypass are set from a covered rear slide switch.
• 124dB Peak Output Capability — 1200W peak power handling provides headroom for music reinforcement in larger rooms.
• IP55 and UV-Inhibited Construction — ABS enclosure and aluminum grille hold up outdoors, under cover, and in humid spaces.
• White Slip-Free Yoke Mount Included — Matched C-bracket with hardware covers delivers a finished appearance after installation.
• System Design Resources — EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit files plus Atmosphere DSP tunings support professional AV integration.

Typical Applications

• House of worship sanctuaries with light interiors
• Auditorium and multi-purpose room bass extension
• Conference room and commercial meeting space music systems
• Government space audio reinforcement

Technical Specifications

Frequently Asked Questions

Will the white finish hold up outdoors?
Yes. The ABS enclosure includes a UV inhibitor to resist discoloration, and the IP55 rating covers dust and water-jet exposure in covered and semi-exposed outdoor locations.

How do I integrate it into a 100V distributed system?
Set the rear slide selector to the appropriate transformer tap — 200W, 100W, or 50W — and wire it on the same constant-voltage line as your AS Series full-range speakers. A security cover protects the setting after commissioning.

Can it run low-impedance instead?
Yes. The selector includes a transformer bypass for 4-ohm nominal operation; pair it with an amplifier rated around 600W at 4 ohms for full output.

What full-range speakers does it complement?
It is engineered for AtlasIED AS Series surface mount loudspeakers, matching their voicing and industrial design for a coherent installed system.

How is it mounted?
The included white slip-free yoke mount attaches to walls or overhead structure, with hardware covers concealing fasteners for a clean architectural appearance.

Is a black version available?
Yes. The identical subwoofer in a black finish is available as the AS-10ST-B.

What support comes with my purchase?
The AS-10ST-W carries a five-year AtlasIED limited warranty, and Creation Networks offers design assistance and post-installation support.
