Atlas Sound ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)

Product Overview

The Atlas Sound ALA10TAW is a passive column line array speaker engineered for venues where speech intelligibility is the top design priority. Ten tightly packed 3" full-range drivers and four high-frequency tweeters produce controlled 135-degree horizontal by 40-degree vertical coverage that keeps energy on the audience and off reflective surfaces. The white extruded aluminum enclosure blends into bright architectural interiors such as houses of worship, government chambers, and modern auditoriums. With 70.7V/100V transformer taps, a 6-ohm bypass, and EN54-24 certification, it fits both distributed and low-impedance commercial sound system designs. Also available in black as the ALA10TAW-B line array speaker.

Product Description

Reverberant rooms with hard floors, glass, and high ceilings defeat conventional point-source speakers. The ALA10TAW addresses this with a column line array format: ten proprietary 3" (76mm) full-range drivers stacked in a sealed extruded aluminum enclosure, crossed over passively at 3.5kHz to four 22mm high-frequency tweeters. The result is a tall, narrow vertical pattern that projects clear speech deep into seating areas while limiting ceiling and floor reflections, the core requirement for house of worship sound system upgrades and government meeting room AV installations. The passive 2-way system handles 200W RMS and 400W peak in low-impedance mode, with 96dB sensitivity and up to 122dB peak SPL. An internal transformer provides 70.7V taps at 60, 30, 15, and 7.5 watts plus 100V taps at 60, 30, and 15 watts, and the transformer can be bypassed for 6-ohm operation, so the same cabinet serves 70-volt distributed audio lines or dedicated amplifier channels. Wiring terminates on a barrier strip or NL4 speakON input. Installation is straightforward: vertical channels on the rear of the enclosure accept the included wall mount bracket, letting the installer slide the mount to set the desired vertical tilt without aiming hardware. An optional pole mount bracket supports portable use with an A-Line subwoofer system. EN54-24 certification qualifies the array for voice alarm and life-safety system specifications, and an IP33 rating adds resistance to dust and spray in semi-protected locations. Browse companion 70V amplifiers and subwoofers in the AtlasIED collection at Creation Networks.

Key Features

• Ten 3" Full-Range Drivers Plus Four Tweeters — The tightly packed transducer column delivers exceptional speech intelligibility in acoustically difficult rooms.
• Controlled 135° x 40° Coverage — Wide horizontal and narrow vertical dispersion focuses output on listeners and reduces reverberant reflections.
• 400W Peak Power Handling — The passive 2-way design supports 200W RMS / 400W peak with up to 122dB peak SPL output.
• 70.7V/100V Transformer with 6-Ohm Bypass — Selectable taps integrate with distributed audio lines, or bypass for low-impedance amplifier channels.
• EN54-24 Certified — Approved for voice alarm and life-safety loudspeaker applications where certification is specified.
• Slide-Adjust Wall Mount Included — Rear vertical channels let installers position the included bracket for the exact vertical tilt required.
• Extruded Aluminum Enclosure in White — Lightweight, durable, and visually discreet against light-colored walls and architectural finishes.

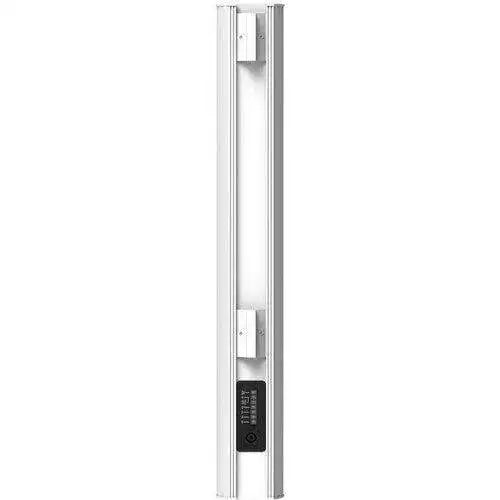

• Barrier Strip and NL4 speakON Inputs — Flexible termination for fixed installation wiring or portable speakON cabling.

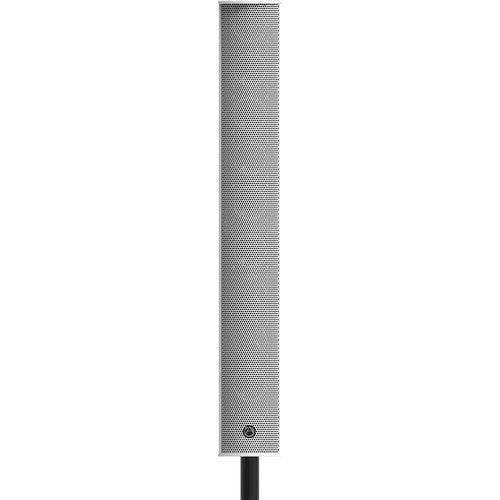

• Optional Pole Mount for Portable Use — Pairs with a portable A-Line subwoofer system for events and temporary commercial deployments.

Typical Applications

• House of worship speech and music reinforcement
• Auditorium voice lift and program audio
• Government space council chambers and courtrooms
• Multi-purpose room sound reinforcement
• All-hands room and commercial meeting space audio
• Training room presentation audio

Technical Specifications

Frequently Asked Questions

Can the ALA10TAW connect to a 70-volt distributed audio system?

Yes. The internal transformer offers 70.7V taps at 60, 30, 15, and 7.5 watts and 100V taps at 60, 30, and 15 watts. The transformer can also be bypassed for 6-ohm low-impedance operation.

Why choose a column line array over a conventional speaker for speech?

The stacked driver column narrows vertical dispersion to 40 degrees, directing sound at listeners instead of ceilings and floors. In reverberant rooms this measurably improves speech intelligibility.

How is the speaker mounted during installation?

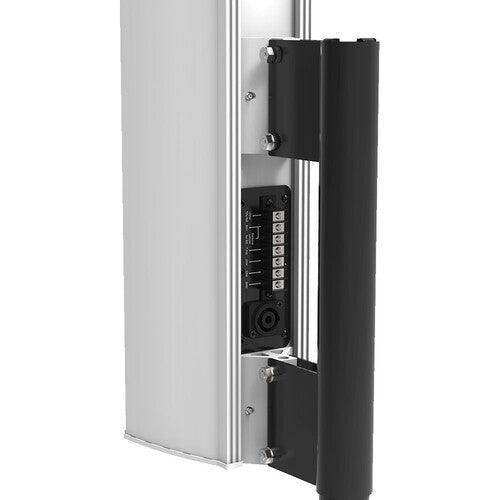

The included wall mount engages vertical channels on the rear of the enclosure, allowing the installer to slide the bracket to the position that yields the desired vertical tilt. An optional pole mount bracket is available; pole and pole mount bracket are sold separately.

Is this model certified for life-safety voice alarm systems?

Yes. The ALA10TAW is EN54-24 certified and carries an IP33 rating, making it eligible for projects that specify certified voice evacuation loudspeakers.

Is there a black version for darker interiors?

Yes. The same array is offered in black as the Atlas Sound ALA10TAW-B.

What warranty and support are included?

AtlasIED backs the ALA10TAW with a 60-month warranty from date of purchase, and Creation Networks offers design assistance for commercial AV integration projects.
